Arctic Cat MONTEGO MONTEGO IMPELLER DRIVE ASS'Y

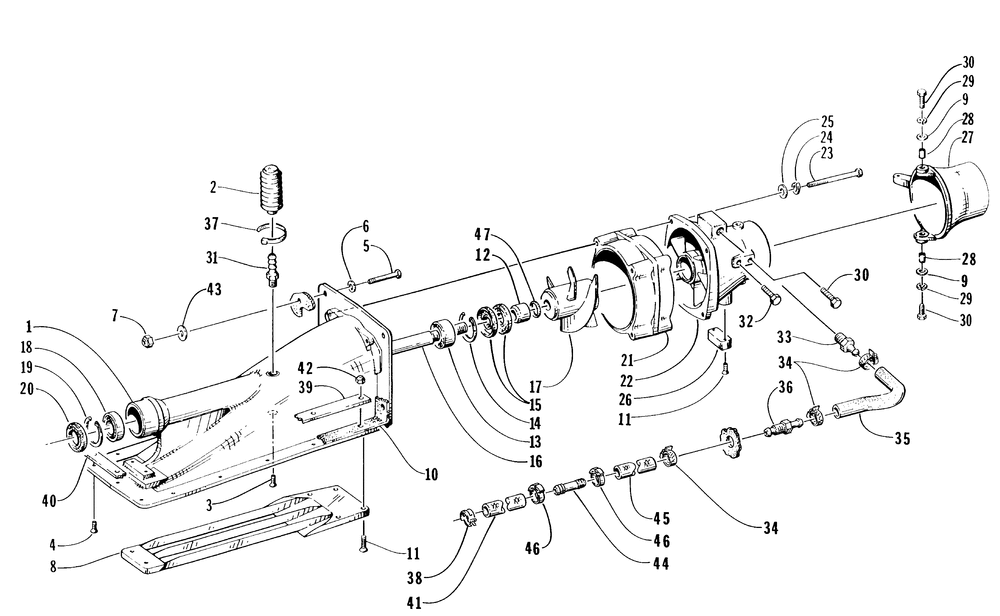

IMPELLER DRIVE ASS'Y
№ Наименование Примечание Кол-во
1 INLETPUMP 1
2 BLADDER CASE 1
3 SCREWMACH PHPNH 6MM 1.0TX15MM (SS) 1
4 SCREWMACH-TSFH 6MM-1.0 X 35MM (SS) (4 per pack) 13
5 SCREWCAP-HH 10MM 1.5TX35MM SS (4 per pack) 4
6 WASHERSEALING-7/16 X 1" (SS) 18-8 (4 per pack) 4
7 NUTHEX-THIN BLU NSL 10MM SS Not Included in Assembly (2 per pack) 4
8 GRATEINLET-6 12MM RAILS (A) 1
9 WASHERFLAT-6MM SS (5 per pack) 2
10 SEALPUMP INLET 1
11 SCREWMACH-TSFH 6MM-1.0 X 20MM (SS) (4 per pack) 8
12 SPACER IMPELLER 1
13 BEARINGREARPUMP(KOYO5303) 1
14 SNAPRING-REAR -PUMP-SS(N1300-187) 1
15 SEALREAR-PUMP 25X47X7 2
16 DRIVESHAFT-STAINLESS STEEL 1
17 IMPELLERSS-16.5(REPL.0673-263 AL) 1
18 BEARINGFRONT-PUMP {62/22RKB} 1
19 SNAPRING-FRONT PUMP-SS(N1300-193) 1
20 SEALFRONT-PUMP 22X50X10 1
21 WEARRING ALUM 1
22 VENTURISTATOR 1
23 SCREWCAP-HH 8MM-1.25TX110MM SS (4 per pack) 4
24 WASHERLOCK-SL 8MM SS (5 per pack) 4
25 WASHERFLAT-8MM SS (5 per pack) 4
26 ZINC ANODES 1
27 NOZZLESTEERING-PUMP 1
28 BUSHINGSTEERING NOZZLE 2
29 WASHERLOCK-SL 6MM SS (5 per pack) 2
30 SCREWCAP HH6MM 1.0TX25MM (5 per pack) 4
31 FITTING3/8 NPT X 1/4 BARB (NYLON) 1
32 SCREWCAP-M8 X 16 (SS) DIN933 2
33 OUTLETOILTANK-1/2 TUBE 1
34 CLAMPHOSE-6708-5 (7/16-1) tahos_8 (3 per pack) 3
36 FITTINGTHRU PUMP-3/8NPTX1/2X1/2 (MONTEGO Models Serial tahos_ARJ00668L596 and above) 1
37 TIECABLE-4 INCH PLT1M (5 per pack) 1
41 HOSE3/8 WATERLINE-25' 1
41 HOSEFORMED-STRAINER TO ENGINE 1
42 NUTLOCK-HEX6MM 1.0T SS (5 per pack) 13
43 WASHERFLAT-FENDER 10MM 1 3/8 OD (SS) Not Included in Assembly (4 per pack) 4
44 COUPLERHOSE-BARB 3/8 TO 3/8 (NYLON) 1
44 COUPLERHOSE-BARB 1/2 TO 1/2 (NYLON) 1
45 HOSE WATER LINE .5" X 25' 0
47 O-RING5/8 ID X 3/32 (-114) 1
