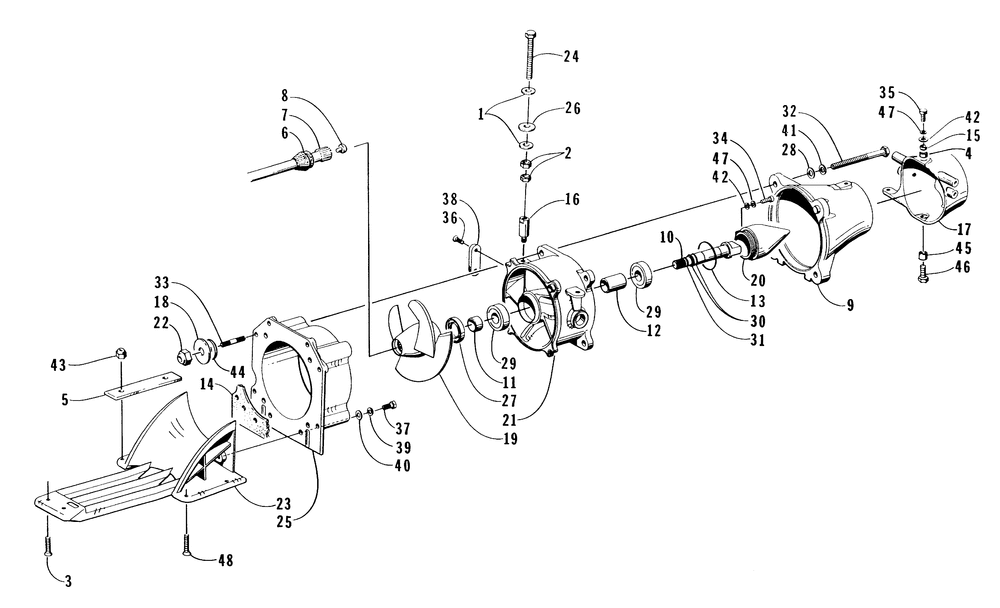

IMPELLER DRIVE ASSEMBLY

№	Наименование	Кол-во
1	WASHER FLATFENDER 8MM (SS) (5 per pack)	4
2	NUTJAM 8MM 1.25T (SS) Not Included in Assembly	6
3	SCREWMACH-TSFH 6MM-1.0 X 35MM (SS) (4 per pack)	4
4	BUSHING	4
5	PLATEBACKING-3.87	2
6	GROMMETIMPELLER	1
7	KITDRIVESHAFT/COUPLER-REPLACEMENT(97MT	1
8	BUMPERDRIVESHAFT (2 per pack)	2
9	VENTURI3' SC-MACH	1
10	SHAFTREAR-IMPELLER	1
11	SPACERIMPELLER	1
12	SPACERBEARING	1
13	O RING1.88X.103-2-128	1
14	GASKETPUMP	1
15	SPACERNOZZLE-STEERING	1
16	SUPPORTPUMP	2
17	NOZZLESTEERING-SC MACH W/REVERSE LUGS	1
19	IMPELLER-15.5-20	1
20	ENDCAPSTATOR	1
21	STATOR-MACH	1
22	NUTLOCK-HH M8-1.25 (SS)	6
23	GRATEINLET-SCOOP	1
24	SCREWCAP-HH M8 1.25X60 DIN 933	2
25	WEAR RINGDCMACH 5.748	1
26	WASHER FLATRUBBER 8MM Not Included in Assembly (5 per pack)	2
27	KIT SEAL-STATOR	1
28	WASHERFLAT-10MM SS (5 per pack)	4
29	BEARINGBALL-STATOR {6204RK}	2
30	O-RING11/16 X 1/16 (-017)	2
31	O-RING9/16 X 1/16 (-015)	1
32	SCREWCAP-M10 1.5X140MM 90MMSHANK	4
33	STUDM8-1.25 X 54	6
34	SCREWCAP-HSH M6 X 20 MM SS (5 per pack)	1
35	SCREWCAP-HH-6MM-1.0TX20MM(SS) (5 per pack)	1
36	SCREWMACH-TSFH 6MM-1.0 X 20MM (SS) (4 per pack)	2
37	SCREWCAP-HH 8MM-1.25TX25MM SS (4 per pack)	2
38	ZINC ANODES	1
39	WASHERLOCK-SL 8MM SS (5 per pack)	2
40	WASHERFLAT-8MM SS (5 per pack)	2
41	WASHERLOCK-10MM SL (SS) (5 per pack)	4
42	WASHERFLAT-6MM SS (5 per pack)	2
43	NUTLOCK-NSL M6-1.0 SS (4 per pack)	6
44	WASHERSEALING-5/16 SS	6
45	NUTPRESS-8MM1.25T (SS) (5 per pack)	1
46	SCREWCAP-HSH 8MM 1.25P X 10MM-SS (4 per pack)	1
47	WASHERLOCK-SL 6MM SS (5 per pack)	2
