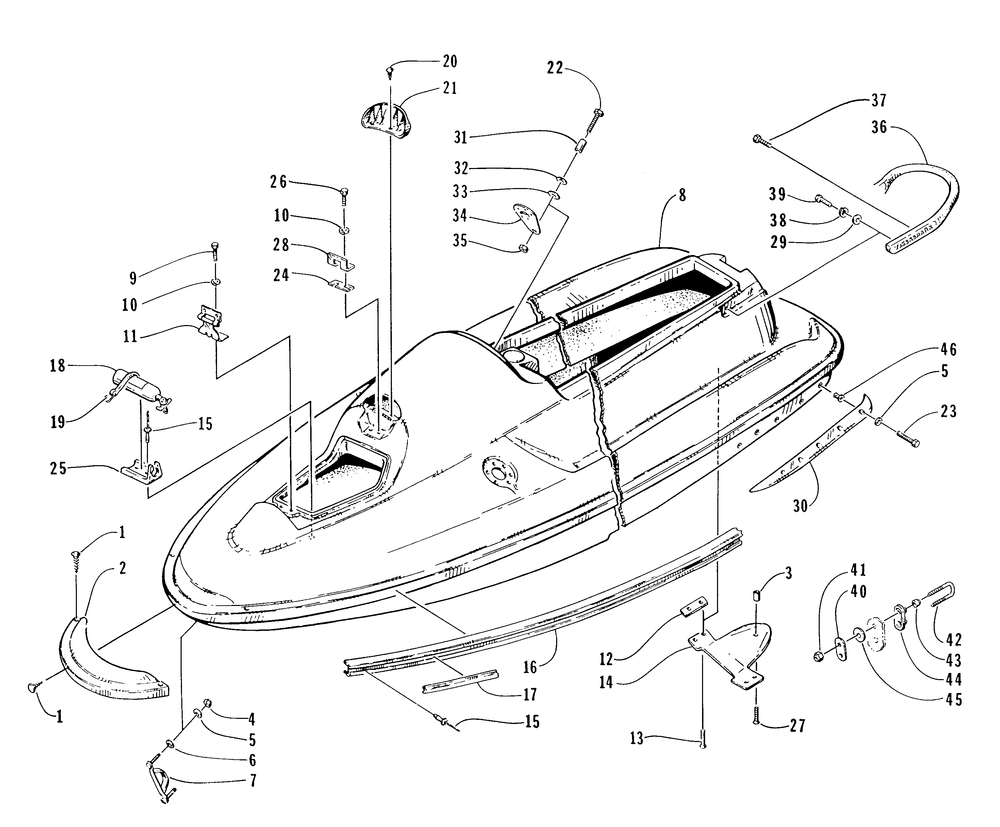

HULL AND RELATED PARTS ASSEMBLY

Arctic Cat TIGERSHARK 900 TIGERSHARK 900 HULL AND RELATED PARTS ASSEMBLY

№	Наименование	Кол-во
1	CLIPCHRISTMAS TREE-05-52385 (10 per pack)	4
2	NOSECONE-BLACK	1
3	SPACERRIDE PLATE	1
4	NUTLOCK-HH 1/4 20 (SS) (4 per pack)	2
5	WASHERFLAT (SS) .250X.562 (10 per pack)	12
6	WASHERSEALING-1/4 SS Not Included in Assembly (4 per pack)	2
7	BOWEYE-WELDMENT	1
8	HULL/DECK ASSY-95TGA-W	1
9	SCREWCAP HH6MM 1.0TX25MM (5 per pack)	2
10	WASHERLOCK-SL 6MM SS (5 per pack)	4
11	HINGEHOOD-ASSY	1
12	PLATENUT {2.18"X.75"}	2
13	SCREWMACH-TSFH 6MM-1.0 X 25MM (SS) (4 per pack)	6
14	RIDE PLATE	1
15	RIVETSS/SS610LF (20 per pack)	50
16	TRIMEDGE-SIDE-CTL 274"	1
17	INSERTTRIM-BLK-276	1
19	TIEDOWNRUBBER-5.50	1
20	CLIP CHRISTMAS TREE (5 per pack)	2
21	GRATEAIR INTAKE	1
22	SCREWCAP-M10 X 60 (SS) DIN 931	1
23	SCREWMACH-PHPNH-1/4-20 X 1 (SS) Not Included in Assembly	10
24	SHIMCATCH	0
25	BRACKETFIRE EXTINGUISHER	1
26	SCREWCAP HH 5MM .8TX20MM (SS) (5 per pack)	2
27	SCREWMACH-TSFH 6MM-1.0 X 35MM (SS) (4 per pack)	1
28	CATCHLATCH	1
29	WASHERFLAT-.281X.625X.037 (SS) (5 per pack)	4
30	SPONSON-RH-RED (USE 1773-049 BLACK)	1
30	SPONSON-LH-RED	1
31	STOPSTEERING POST	1
32	WASHERFLAT-10MM SS (5 per pack)	1
33	WASHERRUBBER 10MM ID Not Included in Assembly	1
34	PLATEBACKING-STEERING POST	1
35	NUTHEX-THIN BLU NSL 10MM SS Not Included in Assembly (2 per pack)	1
37	SCREWCAP-HH 1/4-20 X 3/4-SS (4 per pack)	2
38	WASHERLOCK-SL .250 SS	2
39	SCREWCAP-HH 1/4-20 X 1 SS (5 per pack)	2
40	PLATEBACKING-EYEHOOK	1
41	NUTLOCK 3/8-16 SS	2
42	U-BOLT 3/8-16 SS	1
43	NUTCONE 3/8-16 SS	2
44	PLATEBACKUP-EYEHOOK	1
45	WASHERFLAT-FENDER 10MM 1 3/8 OD (SS) Not Included in Assembly (4 per pack)	2
46	INSERTBRASS-AVK-ALB2-420-260(.25 X 20) (8 per pack)	10
