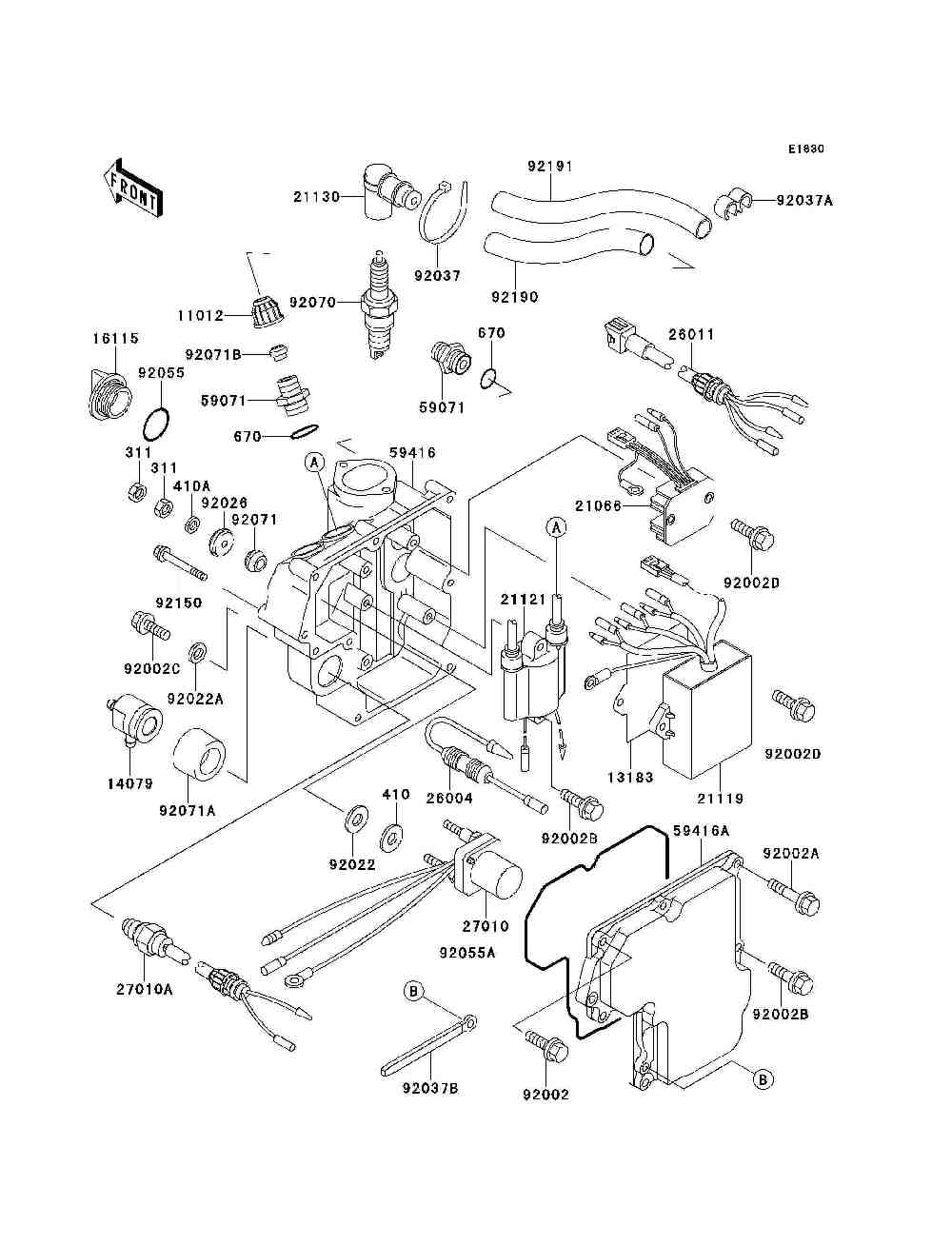

Ignition System

Корзина пуста
Наименование Примечание Кол-во
311 NUT6M/M 4
410 W-PLAIN-S 2
410A WASHER 2
670 "0" RING16MM 4
11012 CAP 2
13183 PLATE 1
14079 HOLDER-ASSY 1
16115 CAP-OIL FILLER 1
21066 REGULATOR-VOLTAGE 1
21119 IGNITER 1
21121 COIL-IGNITION 1
21130 CAP-SPARK PLUG 2
26004 FUSE-ASSY 1
26011 WIRE-LEAD 1
27010 SWITCHSTARTER RELAY 1
27010A SWITCHWATER SENSOR 1
59071 JOINT 4
59416 CASE-ELECTRIC 1
59416A CASE-ELECTRICUPP 1
92002 BOLT6X25 6
92002A BOLT 1
92002B BOLT6X30 3
92002C BOLT6X16 1
92002D BOLT6X20 4
92022 WASHER 2
92022A WASHER 1
92026 SPACER 2
92037 CLAMPSPARK PLUG CAP 2
92037A CLAMP 1
92037B CLAMPL=100 3
92055 "0" RING31MM 1
92055A RING-OELECTRIC CASE 1
92071 GROMMET 2
92071A GROMMET 1
92071B GROMMET 2
92150 BOLT6X85 3
92190 TUBE8X10X175 1
92191 TUBE 1
