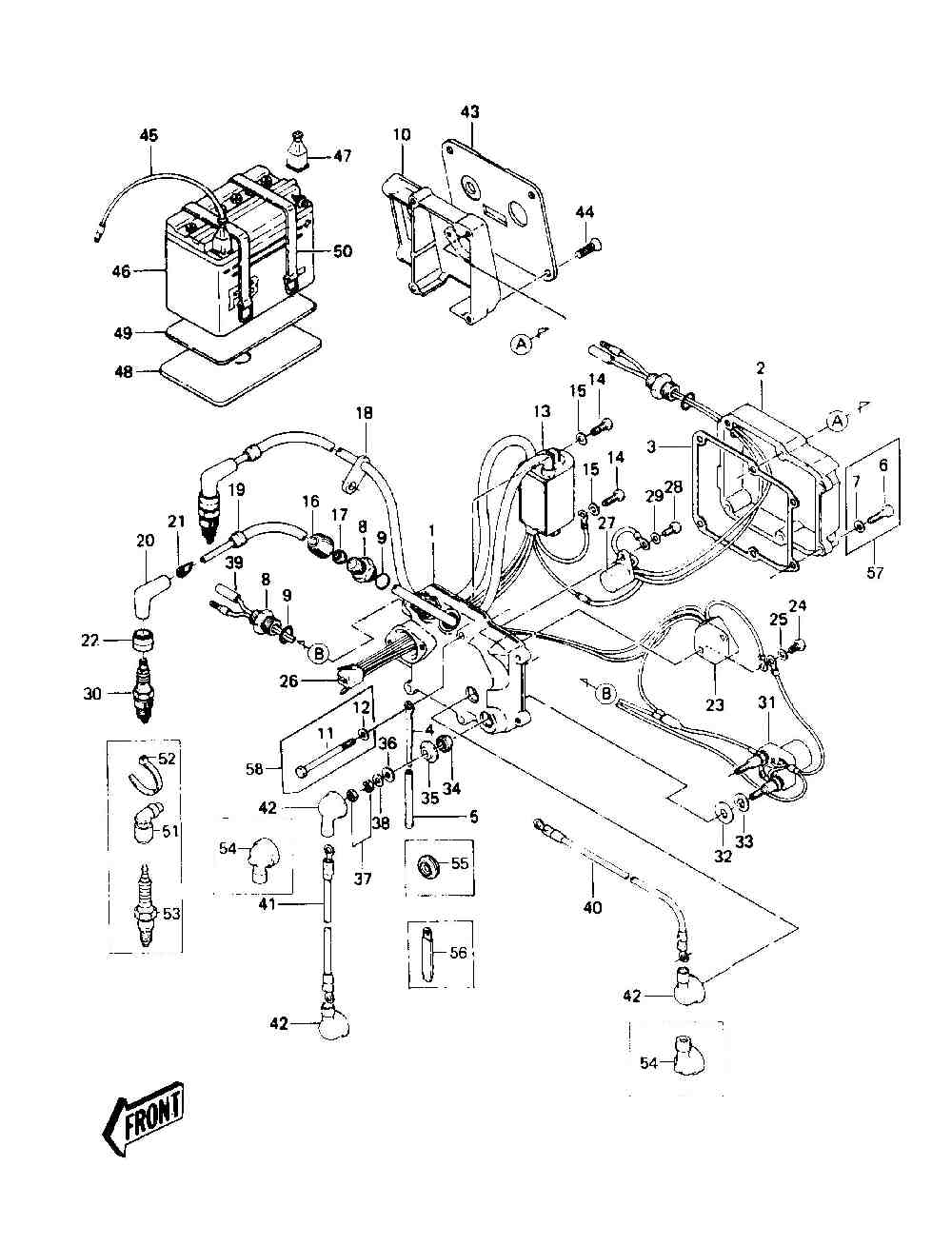

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1A | CASE-ELECTRICFRONT | 1 | |
| 2 | CASE-ELECTRICREAR | 1 | |
| 3 | GASKETELECTRIC CASE | 1 | |
| 4 | CLAMPL=100 | 1 | |
| 5 | TUBEVINYL | 1 | |
| 6 | BOLTHEX HEAD6X25 | 2 | |
| 8 | JOINT | 4 | |
| 9 | "0" RING16MM | 4 | |
| 10 | CASEFUEL TAP | 1 | |
| 11 | BOLT6X80 | 4 | |
| 12 | WASHER | 4 | |
| 13 | IGNITER | 1 | |
| 14 | SCREW-PAN HEAD6X20 | 2 | |
| 15 | WASHER-PLAIN-SMALL | 2 | |
| 16 | CAP | 2 | |
| 17 | GROMMET | 2 | |
| 18 | GROMMET | 1 | |
| 19 | GROMMET | 2 | |
| 20 | CAP SPARK PLUG US | 2 | |
| 22 | COVERPLUG | 2 | |
| 23 | REGULATOR VOLTAGE | 1 | |
| 26 | CONNECTORCORD | 1 | |
| 27 | RELAY | 1 | |
| 28 | SCREW-PAN HEAD6X16 | 1 | |
| 31 | SWITCHSOLENOID | 1 | |
| 32 | WASHER | 2 | |
| 33 | W-PLAIN-S | 2 | |
| 34 | GROMMET | 2 | |
| 35 | WASHER | 2 | |
| 36 | WASHER | 2 | |
| 37 | NUT6M/M | 4 | |
| 39 | WIRE-LEADL=230 | 1 | |
| 40 | WIRE-LEADBATTERY(+) | 1 | |
| 41 | WIRE-LEADL=340 | 1 | |
| 42 | CAP | 3 | |
| 43 | PANEL-CONTROL | 1 | |
| 44 | SCREW8X22 | 4 | |
| 45 | WIRE-LEADBATTERY(-) | 1 | |
| 47 | CAP-BATTERY TERMINAL | 2 | |
| 48 | PLATE-BATTERY | 1 | |
| 49 | CUSHIONBATTERY | 1 | |
| 50 | BANDBATTERY | 2 |
