| № | Наименование | Примечание | Кол-во |
|---|---|---|---|

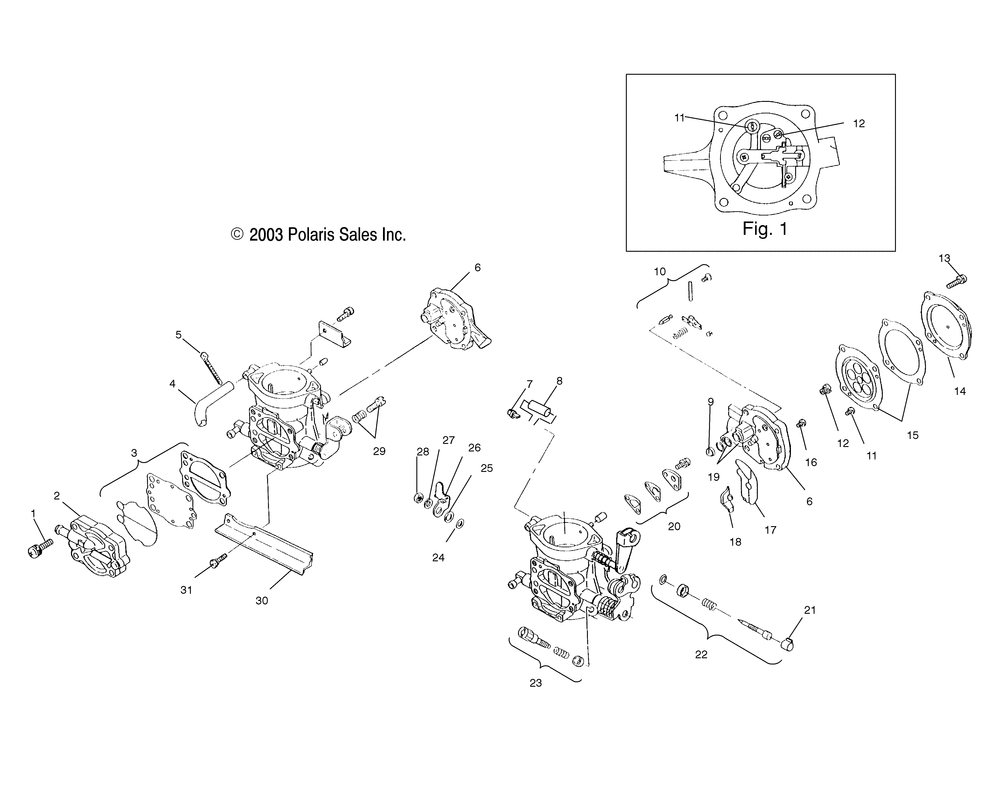

| CARBURETOR ASM. | 1 | ||
| SUBSTITUTED BY 9990000 [Incl. 1015] | 1 | ||
| 1 | SCREW | 4 | |
| 5 | CABLE TIE (10) (10 per pack) | 2 | |
| 6 | JETR.BLOCK COMP | 2 | |
| 11 | JET-MAIN140 KEIHIN [Per Carb] | 1 | |
| 12 | JET-PILOT68 KEIHIN | 1 | |
| 13 | SCREWJET BLOCK COVER | 8 | |
| 14 | COVERJET BLOCK | 2 | |
| 16 | SCREW JET BLOCK | 1 | |
| 17 | O-RING JET BLOCK | 2 | |
| 18 | COLLAR | 2 | |
| 19 | O-RING(VALVE SEAT) | 4 | |
| 20 | KITCHECKVALVEMAIN(KEIHIN) | 2 | |
| 21 | CAP LIMITER | 2 | |
| 22 | KITMAINMIX.SCREW(KEIHIN) [1 Per Carb] | 2 | |
| 23 | KITIDLESTOP SCREW | 1 | |
| 25 | WASHER | 1 | |
| 27 | WASHER LOCK | 1 | |
| 28 | NUTTHROTTLE SHAFT | 1 | |
| 29 | KITSYNCH.SCREW | 1 | |
| 31 | SCREWCONNECT.PLATE | 8 |
