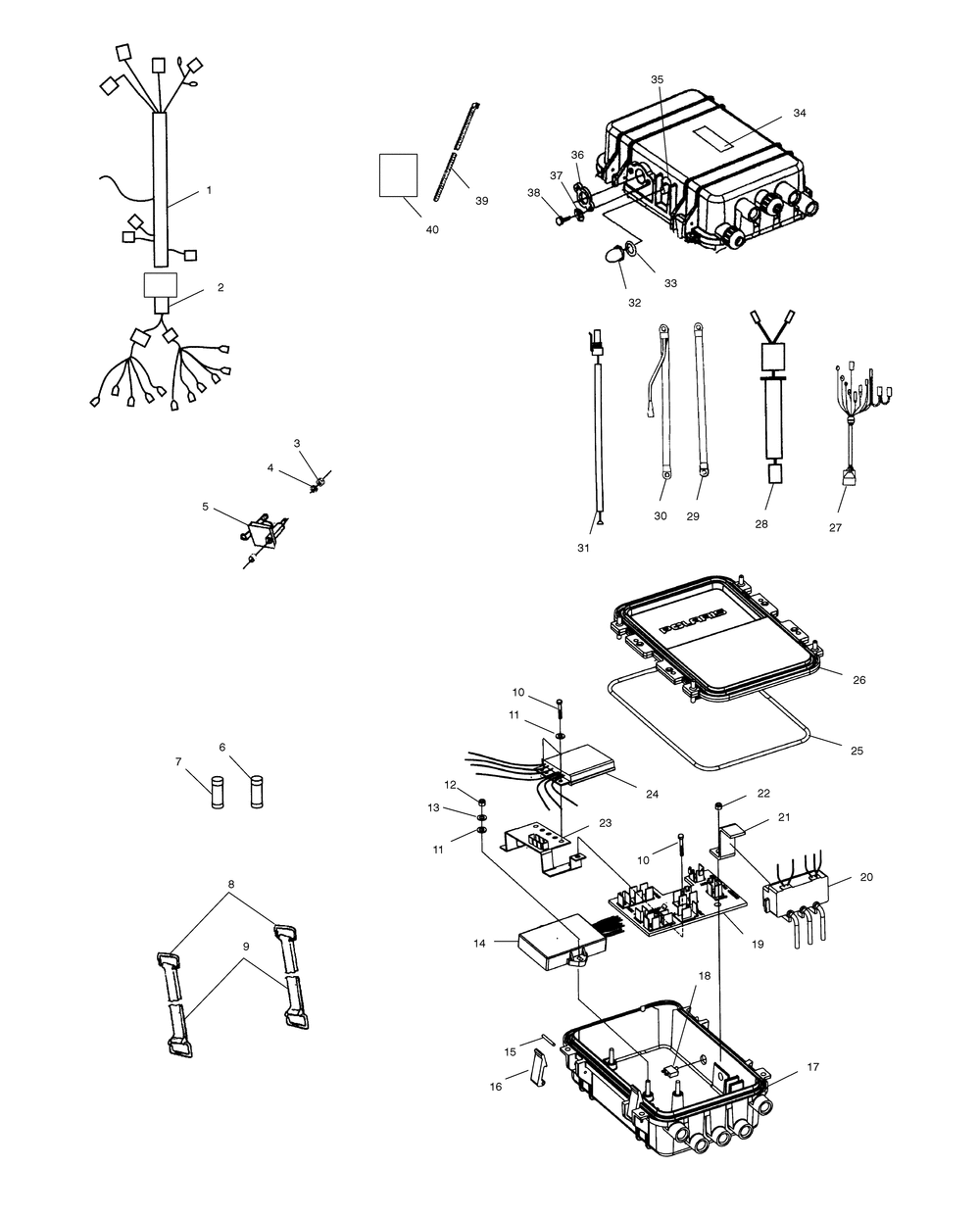

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | HARNESSMAINPRO 1200 | 1 | |
| 3 | NUT 6 MM.S.S. | 2 | |
| 4 | WASHER | 2 | |
| 6 | FUSE1/4 AMP (10) (10 per pack) | 1 | |
| 8 | HOOK'D'SST/SS(10) (10 per pack) | 4 | |
| 9 | STRAP | 2 | |
| 10 | BOLT S.S. | 2 | |
| 11 | WASHER FLAT S.S. | 5 | |
| 12 | NUT SS. | 6 | |
| 13 | WASHER LOCK | 6 | |
| 15 | PINLATCH (10) (10 per pack) | 8 | |
| 17 | ELECTRICAL BOXIGNITIONASM. [Incl. 15163132] | 1 | |
| 18 | CKT.BREAKER15A.(WATER.) | 1 | |
| 19 | TERMINAL BOARDASM | 1 | |
| 21 | BRKTCOIL3CYL | 1 | |
| 22 | NUTNYLOKSS | 1 | |
| 26 | COVERACCESSORYE-BOX | 2 | |
| 27 | HARNESS-9 WIRE STATOR 3CYLPVL | 1 | |
| 28 | HARNESSTRIMMOTOR | 1 | |
| 30 | CABLEREDBTTRY/SOLENOID | 1 | |
| 31 | HARNESSBATTERY/BRKR 1CNCT | 1 | |
| 32 | BOOTTHREADED | 1 | |
| 33 | O-RING | 1 | |
| 35 | DECAL-"RESET ELEC SYSTEM" | 1 | |
| 36 | PLATESTATOR1 HOLE | 1 | |
| 37 | WASHER | 2 | |
| 38 | SCREW1/4-20X1.0 | 2 | |
| 39 | CABLE TIE (10) (10 per pack) | 1 | |
| 40 | ANCHOR CABLE TIE(10) (10 per pack) | 1 |
