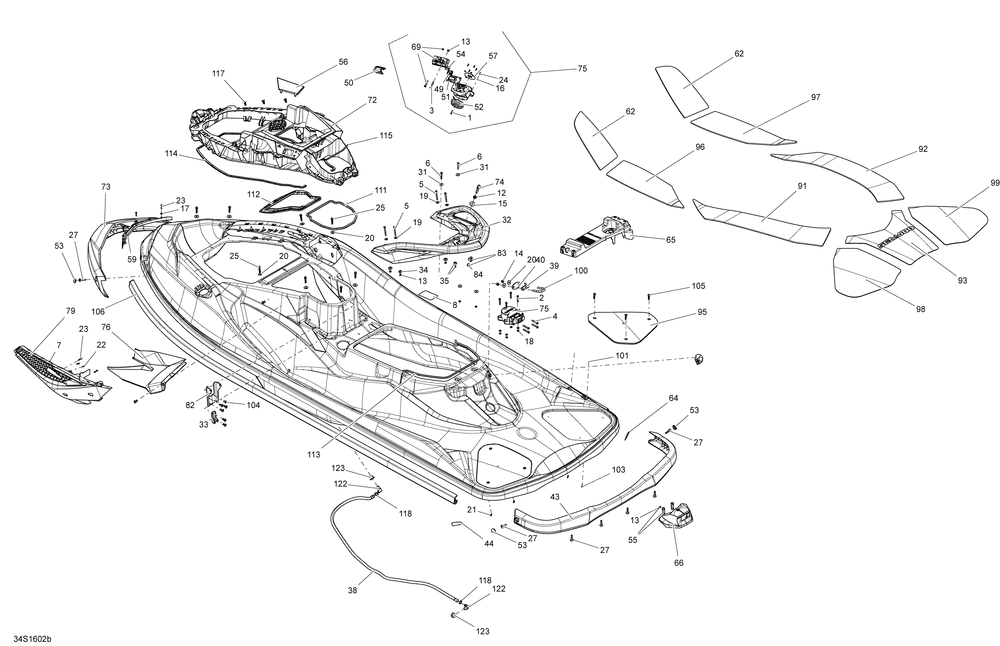

SEA-DOO GTX GTX 09- Body - Without Suspension
09- Body - Without Suspension
№ Наименование Примечание Кол-во
1 PHILLIPS TAPPING SCREW tahos_8 X 1" (10.000 per pack) 2
2 SOCKET HEAD SCREW M6 X 35 (5.000 per pack) 4
3 SOCKET HEAD SCREW M6 X 40 (10.000 per pack) 4
4 SOCKET SCREW HEAD M6 X 45 (2.000 per pack) 8
5 HEX. SCREW M6 X 55 (5.000 per pack) 4
6 HEX. SCREW M6 X 40 (5.000 per pack) 2
7 Push Nut 2
8 CAUTION ENGINE OIL 1
9 AVERTISSEMENT *WARNING 1
10 WAKE-PRO DECAL 1
11 Hex. Screw M6 X 100 1
12 HEX. JAM NUT M10 (5.000 per pack) 1
13 Elastic Stop Nut M6, Brass 3
14 Hex. Elastic Nut M8, Brass 2
15 FLAT WASHER 10 MM STAINLESS (5.000 per pack) 1
16 FLAT WASHER M3 STAINLESS (10.000 per pack) 8
17 Flat Washer 4 mm Stainless 3
18 Flat Washer M6, Stainless 8
19 Flat Washer M6, Stainless 4
20 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 10
21 HEX. FLANGED SCREW K40 X 13 (25.000 per pack) 2
22 FLANGED HEX. SCREW K40 X 16 (5.000 per pack) 6
23 HEX. FLANGED SCREW K40 X 25 Package XT -LTD (5.000 per pack) 3
24 OVAL PHILIPP SCREW KA30 X 12 (10.000 per pack) 12
25 PLASTITE HEX. SCREW M6.8 X 35 (5.000 per pack) 8
26 Flanged Torx Screw K40 X 16 11
27 HEXAGONAL CAP SCREW M6 X35 (2.000 per pack) 11
28 TORX SCREW M8 X 40 STAINLESS 6
29 TORX SCREW PLASTITE M6 2
30 FLAT WASHER 8 MM STAINLESS (5.000 per pack) 2
31 FLAT WASHER M6.6 X 22 (10.000 per pack) 4
32 REAR HANDLE 1
33 BOITIER *CASE 1
34 M6 Nut Housing Ass'y 1
35 Nut Housing Ass'y 4
36 SANGLE *STRAP 1
37 BALL SPRING 1
38 BOYAU 12MM. *HOSE-12MM. (2.000 per pack) 1
39 HOOK 1
40 FINITION PLATE BLACK 1
41 BUMPER PLUG BLACK (6.000 per pack) 1
42 SUPPORT SUB-ASSEMBLY 1
43 PARE-CHOCS ARR*REAR BUMPER 1
44 ANTIDERAPANT *ANTI-SKID PAD 1
45 ALUMINUM POST 1
46 LH LATERAL ARM 1
47 RH LATERAL ARM 1
49 BUTTON 2
50 UNDER CAM 1
51 ROPE GUIDE 2
52 ROPE 3/16" (3.000 per pack) 0
53 BUMBER CAP 4
54 BUTTON CAP 2
55 DOUBLE CAGE NUT ASS Y 4
56 FRONT REWINDER COVER 1
57 INSIDE COVER 2
58 MOLDED HANDLE 1
59 DECK NOSE 1
60 BOARD SUPPORT KIT 1
61 LOWER ANCHORAGE 1
62 LH FRONT CARPET Model GTX & Package STD 1
62 RH FRONT CARPET Model GTX & Package STD 1
63 WARNING LABEL 1
64 ANTIDERAPANT-DR*ANTI-SKID-RH 1
65 LOWER DECK ASS Y includes 35 8 1
66 REWIND COVER 1
67 ELASTIC ROPE ASS Y 1
68 LATCH 1
69 JAM CLEAT SYSTEM ASS Y 2
71 UPPER ANCHORAGE 1
72 *FRONT MODULE 1
73 PARE CHOCS *FRONT BUMPER 1
74 SEAT STUD 1
75 RETRACTABLE ROPE ASS Y 2
76 LH COSMETIC Model GTX & Package STD 1
76 RH COSMETIC Model GTX & Package STD 1
79 FRONT RH COSMETIC ASS Model GTX & Package STD 1
79 FRONT RH COSMETIC ASS Package LTD 1
79 FRONT LH COSMETIC ASS Model GTX & Package STD 1
79 FRONT LH COSMETIC ASS Package LTD 1
80 APPUI-PIEDS *FOOTREST 1
81 APPUI-PIEDS *FOOTREST 1
82 PIVOT SIEGE *SEAT PIVOT 1
83 LOGEMENT ECROU *HOUSING-NUT 1
84 NUT-STOP ELASTIC DIN.985 (4.000 per pack) 1
87 TAPIS *CARPET 1
88 TAPIS *CARPET 1
89 TAPIS *CARPET 1
90 TAPIS *CARPET 1
91 TAPIS *CARPET Model GTX & Package STD 1
92 TAPIS *CARPET Model GTX & Package STD 1
93 TAPIS *CARPET Model GTX & Package STD 1
95 ESPACEUR *SPACER Model GTX & Package STD 1
95 ESPACEUR *SPACER Model GTX & Package STD 1
96 TAPIS *CARPET Model GTX & Package STD 1
97 TAPIS *CARPET Model GTX & Package STD 1
98 TAPIS *CARPET Model GTX & Package STD 1
99 TAPIS *CARPET Model GTX & Package STD 1
100 U-CLAMP 1
101 BLACK SNAP CAP (50.000 per pack) 2
102 FLAT WASHER (5.000 per pack) 6
103 RIVET-POP 1/8 *RIVET-POP 1/8 (50.000 per pack) 2
104 POP RIVET 3/16" (5.000 per pack) 10
105 SCREW-PLASTITE TORX M6.81X30 Model GTX & Package STD 6
106 BUMPER 2
108 TYPE "U" METALLIC DRIVE SCREW 2
109 JOINT ETANCHE *SEAL 1
110 COURROIE *STRAP 1
111 NEOPRENE SEAL 1
112 NEOPRENE SEAL 1
113 JOINT ETANCHE *GASKET (3.000 per pack) 1
114 JOINT ETANCHE *GASKET 1
115 JOINT *SEAL (100.000 per pack) 0
116 BALL 1/4" 2
117 BLACK DART FAN (10.000 per pack) 3
118 Tie-Rap 94 mm 2
119 Rubber Bumper 2
120 RUBBER WASHER (5.000 per pack) 2
121 RUBBER BUFFER 2
122 ELBOW FITTING 2
123 GROMMET 2
