SEA-DOO GTX GTX 03- PTO Cover And Magneto - 155 Model With Suspension

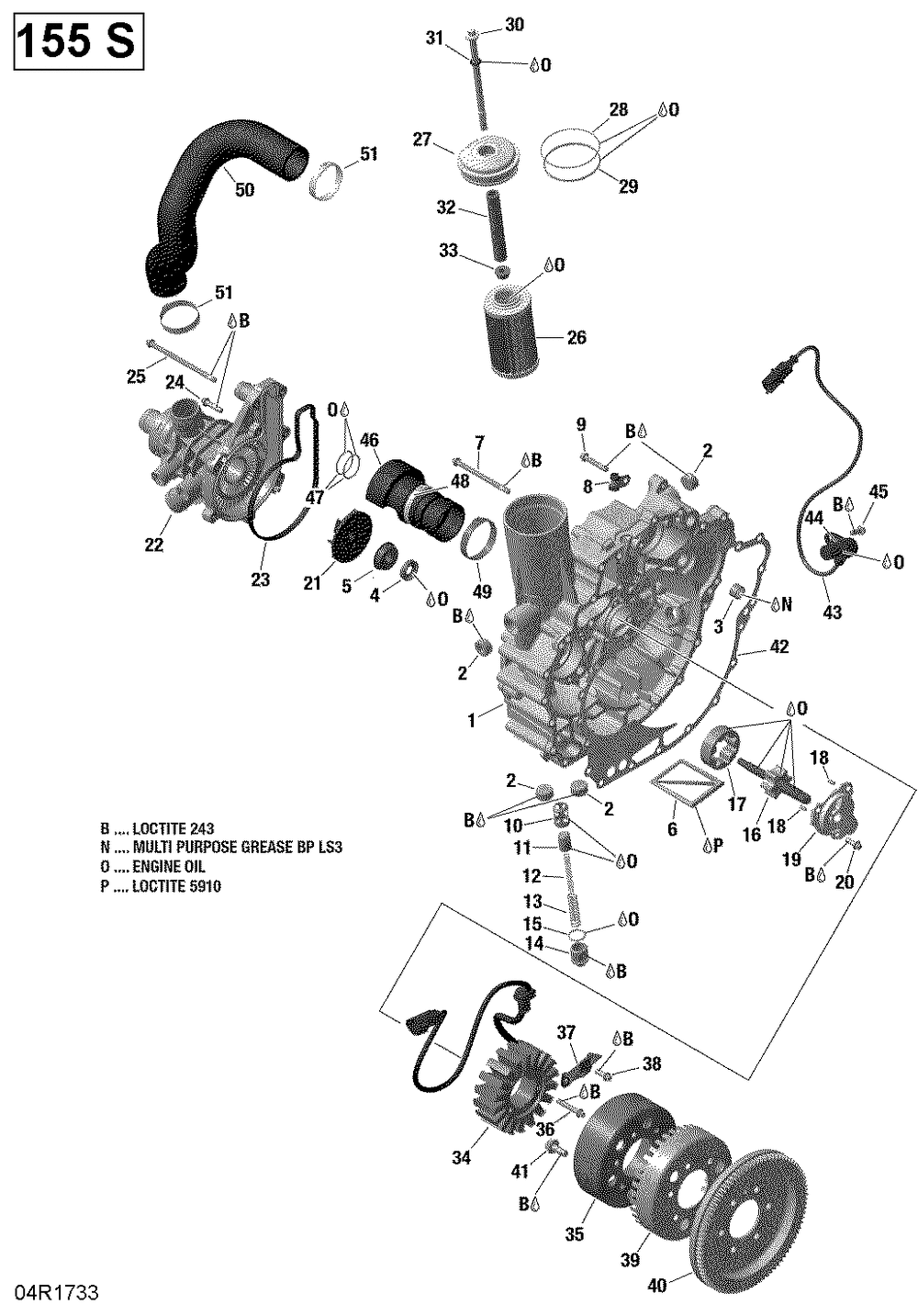

03- PTO Cover And Magneto - 155 Model With Suspension
№ Наименование Примечание Кол-во
1>4 TIMING/DRIVE COVER ASS Y Includes 1 to 4 1
2 Plug Screw M20 X 1.5 4
3 ROULEMENT AIGUI*BUSHING-NEEDLE Model With Electric Starter 1
4 OIL SEAL 1
5 ROTARY SEAL 1
6 OIL SIEVE 1
7 FLANGED TORX SCREW M6 X 85 11
8 Clamp 1
9 FLANGED TORX SCREW M6 X 35 Tightening Torque 9 Nm +/- 12% (5.000 per pack) 10
10 VALVE SEAT SLEEVE 1
11 PISTON VALVE 1
12 COMPRESSION SPRING 1
13 COMPRESSION SPRING 1
14 PLUG SCREW M20 X 1.5 1
15 O-RING 1
16 PUMP SHAFT ASS Y 1
17 Oil Pump Rotor 16 mm 1
18 NEEDLE PIN 2
19 OIL PUMP COVER 1
20 FLANGED TORX SCREW M6 X 16 (5.000 per pack) 3
21 IMPELLER 1
22>23 WATER PUMP HOUSING ASS Y Includes 22 to 23 1
23 JOINT ETANCHE *GASKET 1
24 FLANGED TORX SCREW M6 X 25 (5.000 per pack) 6
25 TORX FLANGED SCREW M6 X 105 2
26 Фильтр масляный 1
27 OIL FILTER COVER 1
28 O-Ring 1
29 O-RING 1
30 HEX. SCREW M8 X 140.5 1
31 O-RING (5.000 per pack) 1
32 SPACER 1
33 HEX. NUT M8 1
34 STATOR PLATE 1
35 MAGNETO FLYWHEEL 1
37 RETAINING PLATE 1
39 TRIGGER WHEEL 1
40 STARTER GEAR 86 TEETH 1
41 SCREW KIT 6
42 GASKET 1
43>44 Crankshaft Position Sensor Ass'y 1
44 O-Ring 1
46>48 BALL BEARING WITH BELLOWS ASS Y Includes 46 to 48 1
47 O-RING 2
48 GEAR CLAMP 1
49 GEAR CLAMP 1
50 FORMED HOSE 1
51 GEAR CLAMP 2
