SEA-DOO GTX GTX 07- Steering - All Models

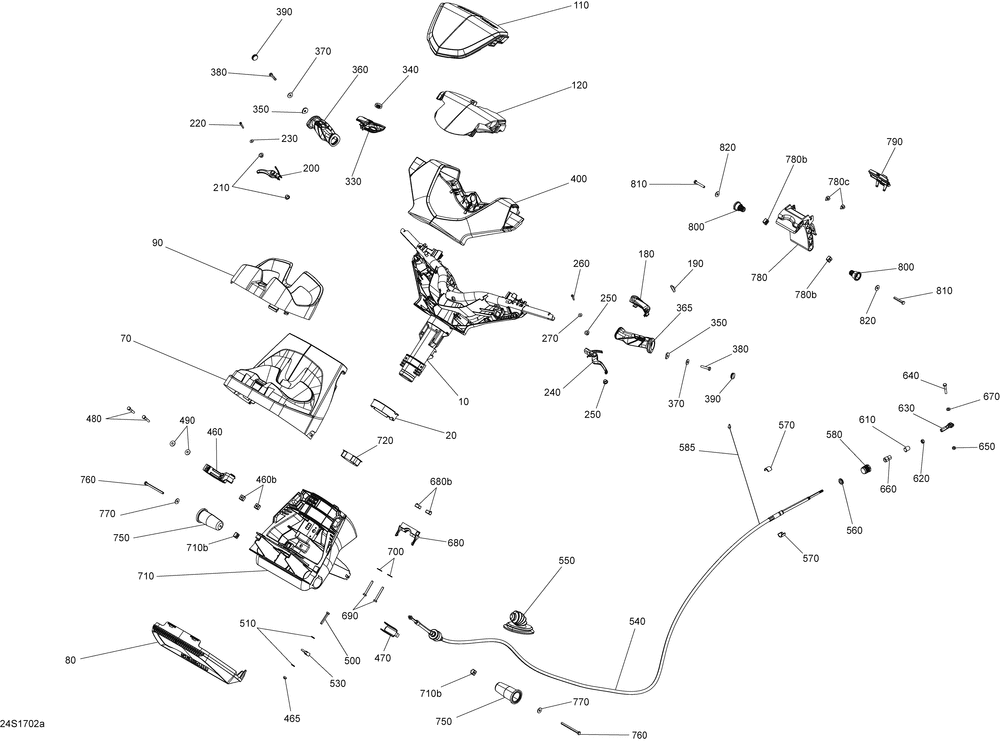

07- Steering - All Models
№ Наименование Примечание Кол-во
10 DIRECTION *STEERING 1
20 WEAR RING 1
70 SUPPORT CADRAN *GAUGE SUPPORT 1
80 GAUGE SUPPORT COVER 1
90 GAUGE TRIM BLACK 1
110 STEERING PAD BLACK 1
120 HANDLE BAR FOAM 1
180 LH HOUSING COVER 1
180 LH HOUSING COVER 1
190 KNOB SWITCH RED 1
200 THROTTLE HANDLE 1
210 BUSHING 2
220 HEX. FLANGED SCREW K40 X 25 Package XT -LTD (5.000 per pack) 1
230 Flat Washer 4 mm Stainless 1
240 REVERSE HANDLE 1
330 RH HOUSING COVER 1
340 KNOB SWITCH GREY 1
350 INSERT GRIP HANDLE 2
360 GAINE GUIDON *HANDLE GRIP 1
365 GAINE GUIDON *HANDLE GRIP 1
370 Flat Washer M6, Stainless 2
380 HEX. SCREW M6 X 30 SCOTCH GRIP (25.000 per pack) 2
390 CAP BLACK (2.000 per pack) 2
400 COUVRE GUIDON *STEER. COVER 1
460>460b SUPPORT ASS Y 1
460b Nut Housing Ass'y 2
465 Elastic Stop Nut M6, Brass 1
470 SPACER 1
480 HEX. SCREW M6 X 35 (10.000 per pack) 2
500 HEX. SCREW M6 X 40 (10.000 per pack) 1
510 Flat Washer M6, Stainless 2
530 BALL JOINT 1
540 STEERING CABLE 1
550 SOUFFLET *GROMMET 1
560 RUBBER WASHER (10.000 per pack) 1
570 HALF RING 2
580 STEERING CABLE LOCK 1
585 LOCTITE PIPE SEALANT 250 ML 0
610 SMALL BOOT 1
620 HEX. NUT 1/4"-28 (10.000 per pack) 1
630 BALL JOINT 1
640 HEX. SCREW M6 X 35 (5.000 per pack) 1
660 EMBOUT GRAND *END PIECE 1
680>680b THRUST SUPPORT ASS Y 1
690 HEX. SCREW M6 X 50 (25.000 per pack) 2
710>710b SUP. DIRECTION *STEERING SUP. 1
720 WEAR RING 1
750 STEERING SUPPORT PIVOT 2
760 HEX SCREW M6 X 80 (2.000 per pack) 2
780>780c POIGNEE ASS. *HANDLE ASS Y 1
780c Rubber Bumper 2
790 LOCK 1
800 PIVOT 2
