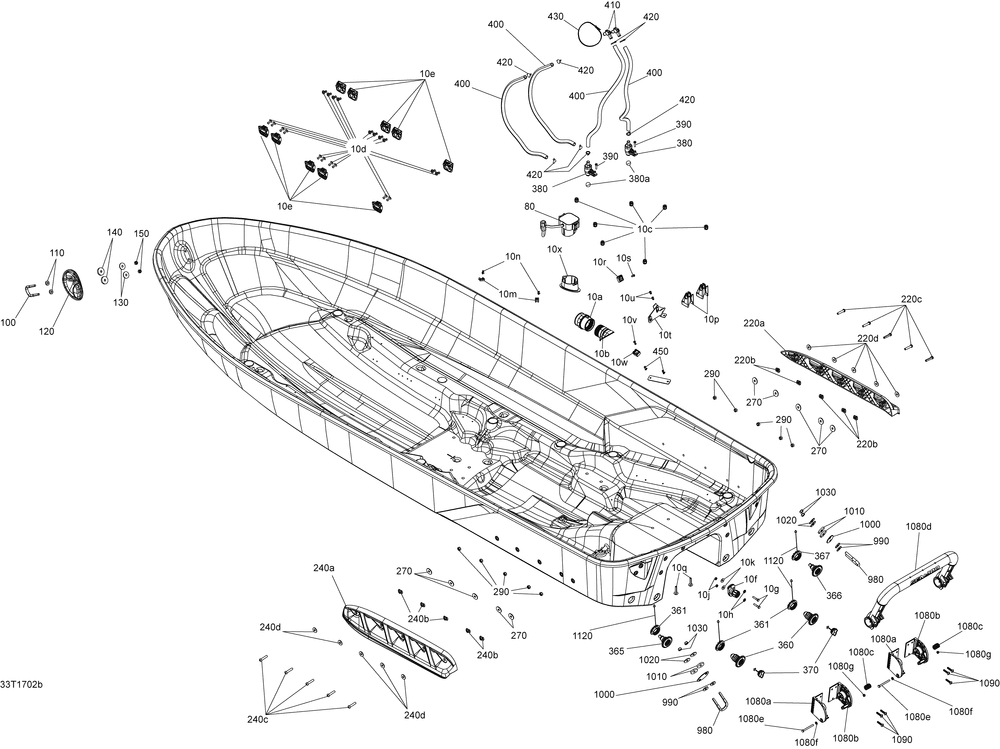

SEA-DOO GTX GTX 09- Hull - Model without Suspension
09- Hull - Model without Suspension
№ Наименование Примечание Кол-во
10a HULL INSERT Model without 300 Engine 1
10b OUTER HULL INSERT Model without 300 Engine 1
10d POP RIVET 3/16" (5.000 per pack) 20
10e STRAP RETAINING 10
10f CABLE ADAPTOR ASS Y 1
10g HEX. SCREW M6 X 30 (5.000 per pack) 2
10h SEALING WASHER 2
10j Elastic Stop Nut M6, Brass 2
10k Flat Washer M6, Stainless 2
10m TIE RAP MOUNT (5.000 per pack) 2
10n AVDEL RIVET 3/16" (10.000 per pack) 2
10p ANCRAGE *STRAP ANCHOR 2
10q HEXAGONAL CAP SCREW M6 X35 (2.000 per pack) 2
10r STRAP ANCHOR 1
10s POP RIVET 3/16" (5.000 per pack) 1
10t ANCRAGE *STRAP ANCHOR 1
10x DEPTH SENSOR BASE 1
80 PROFONDIMETRE *DEPTH SENSOR 1
100 U-CLAMP 1
110 FLAT WASHER (5.000 per pack) 2
120 COQUILLE *BOW CUP 1
130 FLAT WASHER 8 MM STAINLESS (5.000 per pack) 2
140 RUBBER WASHER (5.000 per pack) 2
150 Hex. Elastic Nut M8, Brass 2
220a STABILISATEUR D*SPONSON RH 1
220b ENTRETOISE *SPACER 5
220c TORX SCREW M8 X 40 STAINLESS 5
220d FLAT WASHER 8 MM STAINLESS (10.000 per pack) 5
240a STABILISATEUR G* SPONSON LH 1
360 DRAIN ASS Y 2
361 DOUILLE *BUSHING 3
365 DRAIN NECK ASS Y 1
370 PLUG ASS Y 2
380>380a BAILER PICK-UP ASS Y 2
380a FLOATING BALL 1
390 HEX SCREW 10 14 X 7/8" (5.000 per pack) 2
400 BOYAU 12MM. *HOSE-12MM. (2.000 per pack) 4
410 FITTING ELBOW 90 2
420 Tie-Rap 94 mm 8
430 Tie-Rap 350 mm 1
990 FLAT WASHER 4
1000 FINITION PLATE BLACK 2
1080a A SECTION SUPPORT 2
1080b B SECTION SUPPORT 2
1080c SPRING 2
1080d OVERMOLDED BAR 1
1080e HEX. SCREW M6 X 65 Produced Before February 01 2010 (10.000 per pack) 2
1080f Flat Washer M6, Stainless 2
1080g Hex. Elastic Stop Nut M6 2
1090 SCREW-PLASTITE TORX CONE HD.M6.81X30 6
1120 SEALANT LOCTITE 5900 300 ML 0
