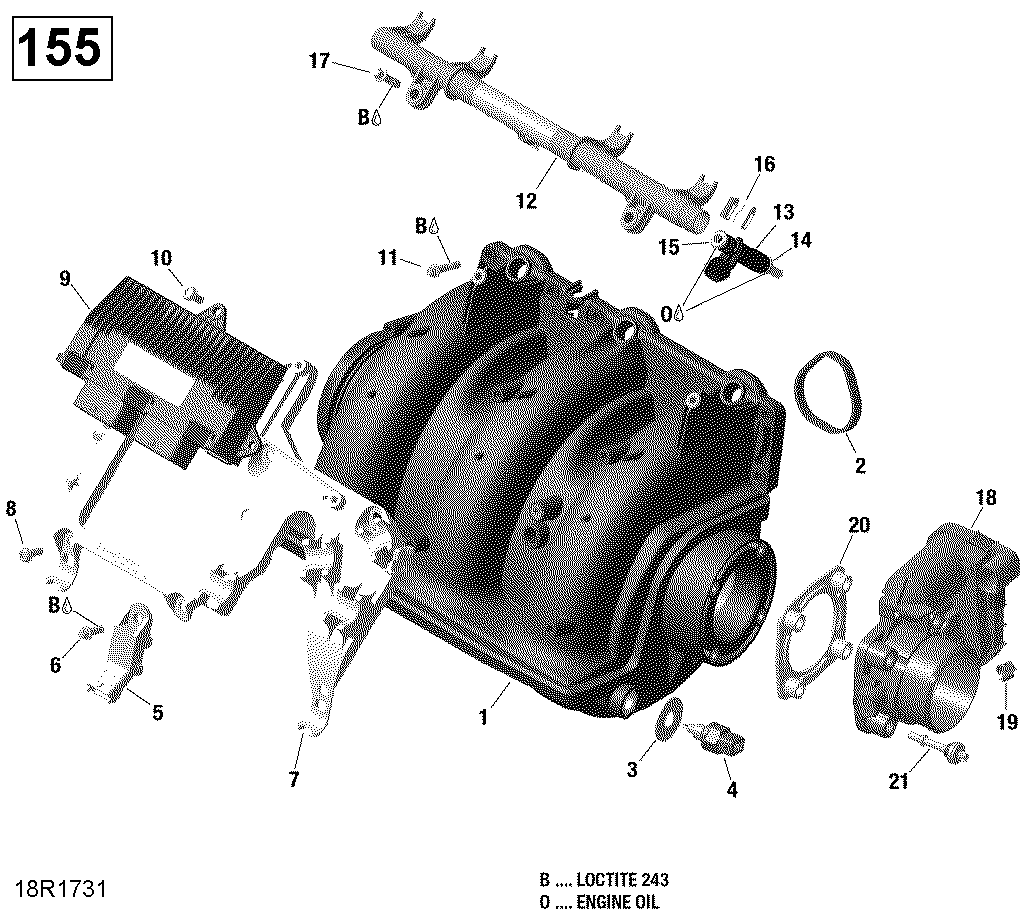

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1>2 | AIR INTAKE MANIFOLD Includes 1 to 2 | 1 | |
| 2 | JOINT ETANCHE *GASKET | 3 | |
| 3 | THRUST WASHER | 1 | |
| 4 | TEMPERATURE SENSOR | 1 | |
| 5 | PRESSURE SENSOR | 1 | |
| 6 | FLANGED TORX SCREW M6 X 16 (5.000 per pack) | 1 | |
| 7 | BASE PLATE | 1 | |
| 8 | Flanged Torx Screw M6 X 16 | 6 | |
| 11 | FLANGED TORX SCREW M6 X 25 (5.000 per pack) | 7 | |
| 13>15 | FUEL INJECTOR | 3 | |
| 14 | O-Ring | 1 | |
| 15 | O-Ring | 1 | |
| 16 | Clip | 1 | |
| 18 | THROTTLE BODY SOCKET ASSY.1503 HO ETC | 1 | |
| 19 | CABLE CLAMP | 1 | |
| 20 | RUBBER GASKET | 1 | |
| 21 | TORX SCREW M6 X 30.5 | 3 |
