SEA-DOO RXT RXT 07- Steering - RXT-X aS 260

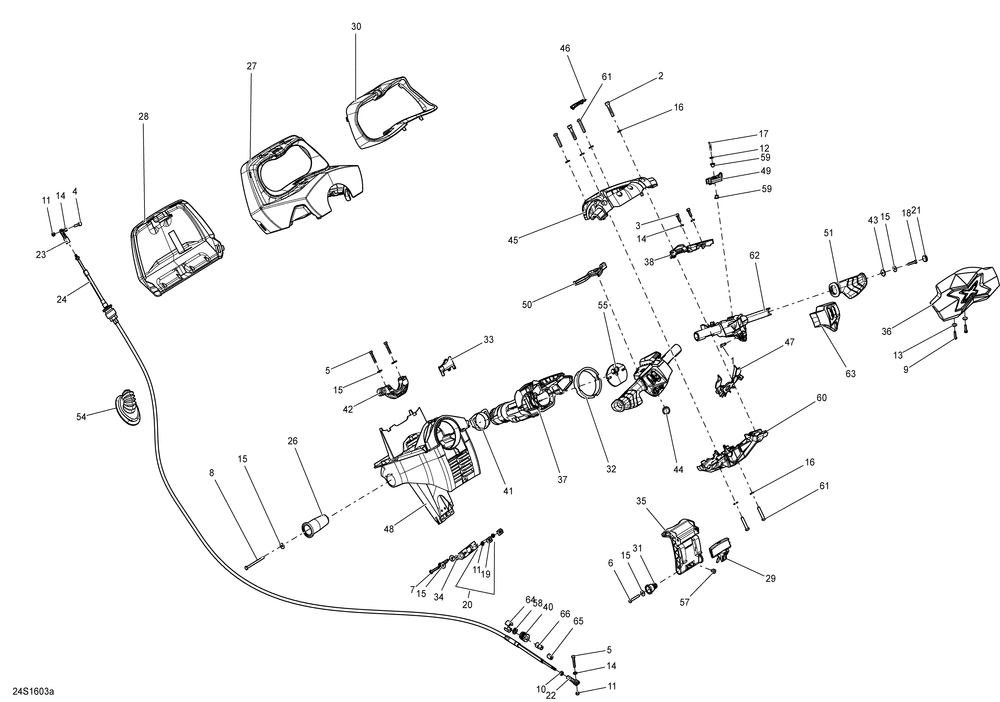

07- Steering - RXT-X aS 260
№ Наименование Примечание Кол-во
1 SOCKET SCREW M6 X 16 (10.000 per pack) 2
2 SOCKET HEAD SCREW M8 X 40 (5.000 per pack) 4
3 Socket Head Screw M6 X 20, Scotch Grip 4
4 HEX. SCREW M6 X 30 (5.000 per pack) 1
5 HEX. SCREW M6 X 35 (5.000 per pack) 3
6 HEX. SCREW M6 X 40 (10.000 per pack) 2
7 HEX. SCREW M6 X 50 (25.000 per pack) 2
8 HEX SCREW M6 X 80 (2.000 per pack) 2
9 HEX SCREW 10 14 X 7/8" (5.000 per pack) 2
10 HEX. NUT 1/4"-28 (10.000 per pack) 1
11 Elastic Stop Nut M6, Brass 6
12 Flat Washer 4 mm Stainless 2
13 Flat Washer 5 mm, Stainless 2
14 Flat Washer M6, Stainless 8
15 Flat Washer M6, Stainless 10
16 FLAT WASHER M8 STAINLESS (5.000 per pack) 8
17 HEX. FLANGED SCREW K40 X 25 Package XT -LTD (5.000 per pack) 2
18 HEX. SCREW M6 X 30 SCOTCH GRIP (25.000 per pack) 2
19 M6 Nut Housing Ass'y 4
20 Nut Housing Ass'y 8
21 CAP BLACK (2.000 per pack) 2
22 BALL JOINT 1
23 BALL JOINT 1
24 STEERING CABLE 1
26 STEERING SUPPORT PIVOT 2
27 SUPPORT CADRAN *GAUGE SUPPORT 1
28 GAUGE SUPPORT COVER 1
29 LOCK 1
30 GAUGE TRIM BLACK 1
31 PIVOT 2
32 WEAR RING 1
33 SPACER 1
34 THRUST SUPPORT ASS Y 1
35 POIGNEE ASS. *HANDLE ASS Y 1
36 HANDLE PAD 1
37 STEERING COLOMN 1
38 LH UPPER HOUSING 1
38 RH UPPER HOUSING 1
40 STEERING CABLE LOCK 1
41 WEAR RING 1
42 SUPPORT ASS Y 1
43 INSERT GRIP HANDLE 2
44 KNOB SWITCH RED 1
45 FRONT EXTENSION BLOC 1
46 CAPUCHON *CAP 1
47 RADIO FREQUENCY KEY SUPPORT 1
48 SUP. DIRECTION *STEERING SUP. 1
49 THROTTLE HANDLE 1
50 REVERSE HANDLE 1
51 GAINE GUIDON *HANDLE GRIP 1
51 GAINE GUIDON *HANDLE GRIP 1
54 SOUFFLET *GROMMET 1
55 GROMMET 1
56 LOCTITE PIPE SEALANT 250 ML 0
57 Rubber Bumper 2
58 RUBBER WASHER (10.000 per pack) 1
59 BUSHING 4
60 REAR EXTENSION BLOCK 1
61 TORX-BUTTON M/S M8 X 40 STLSS S.GRIP (10.000 per pack) 4
62 LOGEMENT *HOUSING 1
62 LOGEMENT *HOUSING 1
63 LH HOUSING COVER 1
63 RH COVER HOUSING 1
64 HALF RING 2
65 SMALL BOOT 1
66 EMBOUT GRAND *END PIECE 1
