SEA-DOO RXT RXT 09- Body - With Suspension

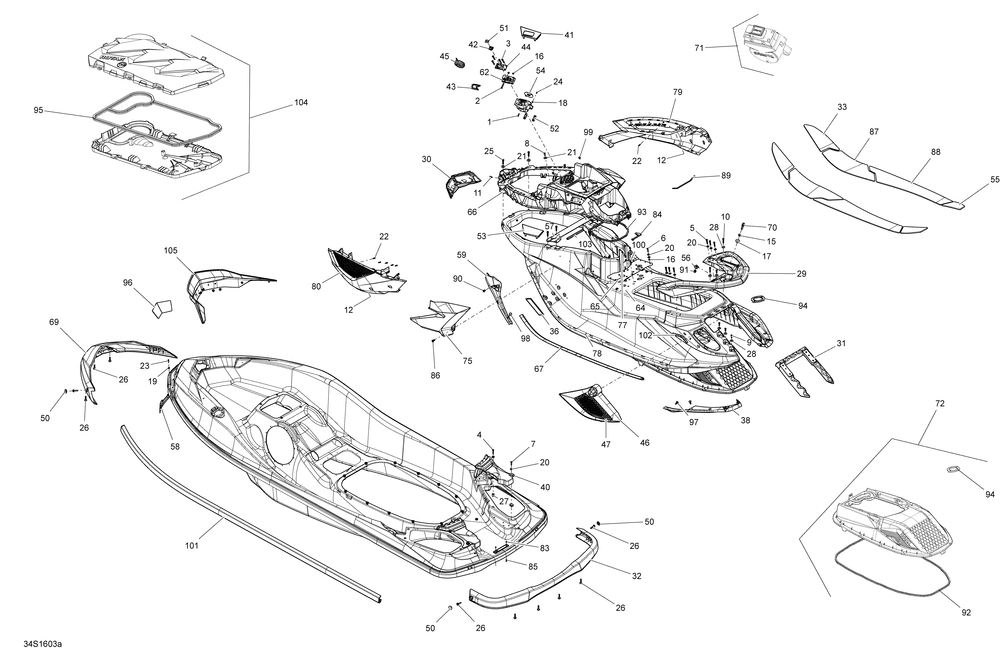

09- Body - With Suspension
№ Наименование Примечание Кол-во
1 PHILLIPS TAPPING SCREW tahos_8 X 1" (10.000 per pack) 1
2 SOCKET HEAD SCREW M6 X 40 (10.000 per pack) 2
3 SOCKET SCREW HEAD M6 X 45 (2.000 per pack) 4
4 SOCKET HEAD SCREW M6 X 35 (5.000 per pack) 16
5 HEX. SCREW M6 X 30 (5.000 per pack) 6
6 HEX. SCREW M6 X 25 (5.000 per pack) 6
7 HEX SCREW M6 X 30 2
8 Hex. Screw M6 X 16, Scotch Grip 2
9 HEX. SCREW M6 X 20 SCOTCH GRIP (10.000 per pack) 7
10 SCREW HEX. M6 X 35 SCOTCH GRIP (10.000 per pack) 2
11 HEX. FORMING SCREW M6 X 16 (5.000 per pack) 2
12 Push Nut 4
13 CAUTION DECAL ENGINE OIL 1
14 WARNING DECAL GASOLINE VAPOR 1
15 HEX. JAM NUT M10 (5.000 per pack) 1
16 Elastic Stop Nut M6, Brass 12
17 FLAT WASHER 10 MM STAINLESS (5.000 per pack) 1
18 FLAT WASHER M3 STAINLESS (10.000 per pack) 4
19 Flat Washer 4 mm Stainless 3
20 Flat Washer M6, Stainless 36
21 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 8
22 FLANGED HEX. SCREW K40 X 16 (5.000 per pack) 10
23 HEX. FLANGED SCREW K40 X 25 Package XT -LTD (5.000 per pack) 3
24 OVAL PHILIPP SCREW KA30 X 12 (10.000 per pack) 6
25 PLASTITE HEX. SCREW M6.8 X 35 (5.000 per pack) 10
26 HEXAGONAL CAP SCREW M6 X35 (2.000 per pack) 11
27 EXPANSION NUT M6 X 1 (10.000 per pack) 16
28 FLAT WASHER M6.6 X 22 (10.000 per pack) 9
29 REAR HANDLE 1
30 GRILLE AVANT *FRONT GRILL 1
31 REAR PIVOT ASS Y 1
32 PARE-CHOCS ARR*REAR BUMPER 1
33 LH FRONT CARPET 1
33 RH FRONT CARPET 1
36 LH FOOTREST COVER 1
36 RH FOOTREST COVER 1
38 LH REAR SCRAPER JOINT 1
38 RH REAR SCRAPER JOINT 1
40 LH REAR GRILL 1
40 RH REAR GRILL 1
41 FRONT REWINDER COVER 1
42 BUTTON 1
43 UNDER CAM 1
44 ROPE GUIDE 1
45 ROPE 3/16" (3.000 per pack) 0
46 LH LATERAL REAR TRIM 1
46 RH LATERAL REAR TRIM 1
47 LH REAR SIDE GRILLE 1
47 RH REAR SIDE GRILLE 1
50 BUMBER CAP 4
51 BUTTON CAP 1
52 DOUBLE CAGE NUT ASS Y 2
53 FRONT REWINDER CAP 1
54 INSIDE COVER 1
55 LH REAR CARPET 1
55 RH REAR CARPET 1
56 LOGEMENT ECROU *HOUSING-NUT 1
57 RENFORT MODULE *STIFFENER MOD 1
58 DECK NOSE 1
59 JOINT AV GA *FRONT LH JOINT 1
59 JOINT AV DR *FRONT RH JOINT 1
62 JAM CLEAT SYSTEM ASS Y 1
64 LOWER CENTRAL REINFORCEMENT 1
65 UPPER REINFORCEMENT 1
66 *FRONT MODULE 1
67 MID JOINT 2
69 PARE CHOCS *FRONT BUMPER 1
70 SEAT STUD 1
71 RETRACTABLE ROPE ASS Y 1
72 DECK EXTENSION ASS Y 1
75 ENJOLIVEUR DR *RH COSMETIC 1
75 ENJOLIVEUR GA *LH COSMETIC 1
77 PIVOT SIEGE *SEAT PIVOT 1
78 CARROS SUP ASS *UPPER DECK ASS 1
79 FRONT RH COSM ASS 1
80 FRONT LH COSM ASS 1
83 BLACK SNAP CAP (50.000 per pack) 2
84 CAP 1
85 RIVET-POP 1/8 *RIVET-POP 1/8 (50.000 per pack) 2
86 POP RIVET 3/16" (5.000 per pack) 10
87 LH CENTER FRONT CARPET 1
87 RH CENTER FRONT CARPET 1
88 LH CENTER REAR CARPET 1
88 RH CENTER REAR CARPET 1
89 JOINT *SEAL (100.000 per pack) 0
90 POP RIVET 3/16 (4.000 per pack) 8
91 NUT-STOP ELASTIC DIN.985 (4.000 per pack) 1
92 LIP SEAL 1
93 NEOPRENE SEAL 1
94 LIP SEAL 1
95 JOINT ETANCHE *LIP SEAL (2.000 per pack) 0
96 TAMPON *GASKET 1
97 BLACK DART (5.000 per pack) 6
98 BLACK DART FAN (10.000 per pack) 2
99 Rubber Bumper 3
100 CAP (5.000 per pack) 1
101 BUMPER 2
102 Gasket, Neoprene 1
103 PROTECTION TRIM 1
104 VENT ADAPTOR 1
105 DEFLECTEUR *DEFLECTOR 1
