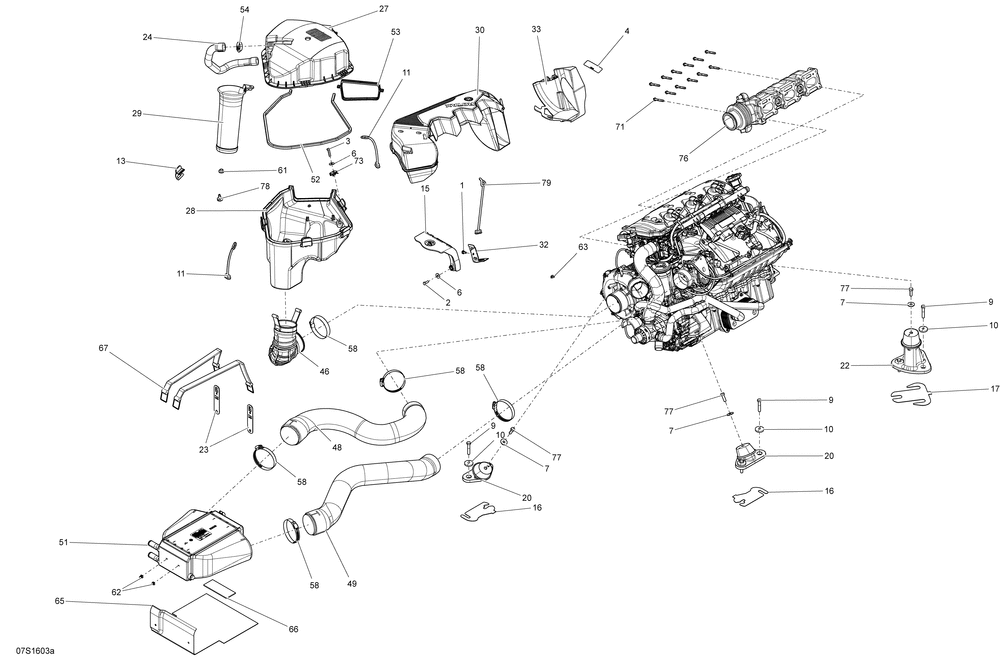

01- Engine - RXT-X aS 260

SEA-DOO RXT RXT 01- Engine - RXT-X aS 260

№	Наименование	Кол-во
1	HEX. SCREW M6 X 12 SCOTCH GRIP (25.000 per pack)	2
2	Hex. Screw M6 X 16, Scotch Grip	3
3	HEX. SCREW M6 X 25 SCOTCH GRIP (10.000 per pack)	2
4	NOTICE DECAL AIR SILENCER Package STD	1
6	Flat Washer M6, Stainless	5
7	FLAT WASHER 8 MM STAINLESS (10.000 per pack)	3
9	HEXAGONAL HEAD CAP SCREW M8 X 45	7
10	RONDELLE CONIQ.*WASHER-CONE (2.000 per pack)	3
11	SANGLE *STRAP	2
13	CLIP	5
15	AIR BOX SUPPORT	1
16	SHIM 1.3 MM	4
17	SHIM 1.3 MM	4
20	RUBBER MOUNT	2
22	RUBBER MOUNT	1
23	HOLDING STRAP	2
24	FORMED HOSE	1
27	AIR SILENCER UPPER	1
28	AIR SILENCER LOW	1
29	TUBE. *INTAKE TUBE	1
30	INTAKE TUBE	1
32	AIR BOX BRACKET	1
33	DEFLECTOR	1
46	BOYAU CONNECT. *HOSE	1
48	FORMED HOSE	1
49	FORMED HOSE	1
51	REFROIDISSEUR *INTERCOOLER Incl Zinc Anode 271001942	1
52	NEOPRENE SEAL	1
53	JOINT ETANCHE *OIL SEAL	1
54	Tridon Gear Clamp	2
58	TRIDON GEAR CLAMP Model with GTR	3
58	TRIDON GEAR CLAMP	2
61	GROMMET (6.000 per pack)	1
63	Tie-Rap 142 mm	1
65	RUBBER PAD	1
66	TAMPON CAOUT. *PAD-RUBBER	2
67	SANGLE RES.ESS.*STRAP-FUEL TANK	2
71	FLANGED TORX SCREW M6 X 45	12
73	PANEL NUT M6 X 1	2
76	ENGINE EXHAUST MANIFOLD	1
77	HEX. SCREW M8 X 25 SCOTCH GRIP (10.000 per pack)	3
78	CHECK VALVE	1
79	SANGLE *STRAP	1
