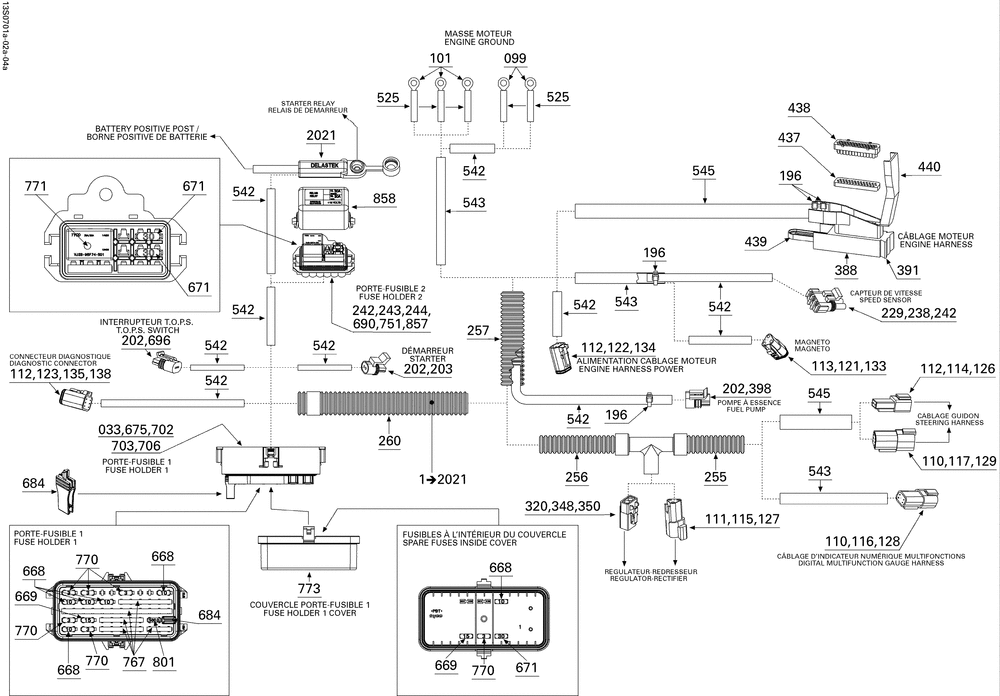

SEA-DOO RXT RXT 10- Electrical Harness 1
10- Electrical Harness 1
№ Наименование Примечание Кол-во
1 MAIN HARNESS Includes 1 to 2021 1
7 FEMALE TERMINAL (5.000 per pack) 1
18 JOINT DE FIL *SEAL-WIRE (5.000 per pack) 1
33 Wire Seal 1
86 FEMALE TERMINAL (5.000 per pack) 1
87 FEMALE TERMINAL (5.000 per pack) 1
90 MALE TERMINAL HOUSING 26 CIRCUITS 1
93 WIRE SEAL (5.000 per pack) 1
99 OPEN BARREL (10.000 per pack) 1
101 OPEN BARREL (10.000 per pack) 1
102 SEALING CAP (10.000 per pack) 1
110 MALE TERMINAL (10.000 per pack) 1
111 MALE TERMINAL (10.000 per pack) 1
112 Female Terminal 1
113 FEMALE TERMINAL 1
114 MALE HOUSING 2 CIRCUITS 1
115 MALE HOUSING 1
116 FEMALE HOUSING 4 CIRCUITS 1
117 BLOC 6 CIRC.FEM*HOUSING-TAB 1
120 .LOGEMENT FEMEL.*HOUSING-FEMALE 1
121 FEMALE HOUSING 3 CIRCUITS 1
122 MALE CONNECTOR 4 CIRCUITS 1
123 MALE CONNECTOR 6 CIRCUITS 1
126 MALE LOCK 2 CIRCUITS 1
127 Male Lock, 3 Circuits 1
128 FEMALE WEDGE 4 CIRCUITS (10.000 per pack) 1
129 CALE 6 CIRC.FEM*WEDGE-6 WAYS F (5.000 per pack) 1
133 FEMALE LOCK 1
134 CALE 4 CIRC.MAL*WEDGE-4 WAYS M (10.000 per pack) 1
135 MALE LOCK 6 CIRCUITS (5.000 per pack) 1
138 Sealing Cap 1
167 FEMALE TERMINAL 1
196 Tie-Rap 142 mm 1
202 FEMALE TERMINAL (5.000 per pack) 1
203 MALE CONNECTOR 2 CIRCUITS (5.000 per pack) 1
227 Male Terminal 1
229 FEMALE TERMINAL (5.000 per pack) 1
231 Female Housing, 2 Circuits 1
237 MALE CONNECTOR 2 CIRCUITS 1
238 MALE HOUSING 3 CIRCUITS 1
241 MALE CONNECTOR 6 CIRCUITS 1
242 Wire Seal 1
243 WIRE SEAL (10.000 per pack) 1
244 WIRE SEAL (5.000 per pack) 1
255 Tubing 13 mm  (10.000 per pack) 1
256 Tubing 16 mm 1
257 TUBING 19 MM (10.000 per pack) 1
260 TUBING 22 MM 0
320 FEMALE TERMINAL (5.000 per pack) 1
348 FEMALE TERMINAL HOUSING 2 CIRCUITS 1
350 CALE 2 CIRC.MAL*WEDGE-2 WAYS M (5.000 per pack) 1
388 FEMALE TERMINAL (5.000 per pack) 1
391 MALE HOUSING 41 CIRCUITS 1
398 MALE CONNECTOR 4 CIRCUITS 1
437 JOINT *SEAL 1
438 LATCH 1
439 LOCK 1
440 COVER 1
525 SHRINK TUBING 0
536 MALE CONNECTOR 26 CIRCUITS 1
541 Tubing 6 mm  (3.000 per pack) 0
542 Tubing 9 mm (10.000 per pack) 0
543 TUBING 12 MM 0
619 BUS CONNECTOR 6 CIRCUITS 1
668 Little Fuse, 10 Amperes 1
669 Little Fuse, 15 Amperes 1
671 LITTLE FUSE 30 AMPERES 1
675 FUSE BOX BASE ASS 1
684 FUSE PULLER 1
690 Female Terminal 1
696 CONNECTOR 3 CIRCUITS 1
702 FEMALE TERMINAL (5.000 per pack) 1
703 Female Terminal 1
706 CAP 1
751 Female Terminal 1
767 BUS BAR 0
770 LITTLE FUSE 3 AMP 1
771 RELAY 30 AMP. 1
773 FUSE COVER 1
801 RESISTANCE 500 OHMS 1
857 FUSE BOX ASS Y 1
858 FUSE BOX COVER 1
2021 BATTERY CABLE 1
