SEA-DOO RXT RXT 07- Steering System INT

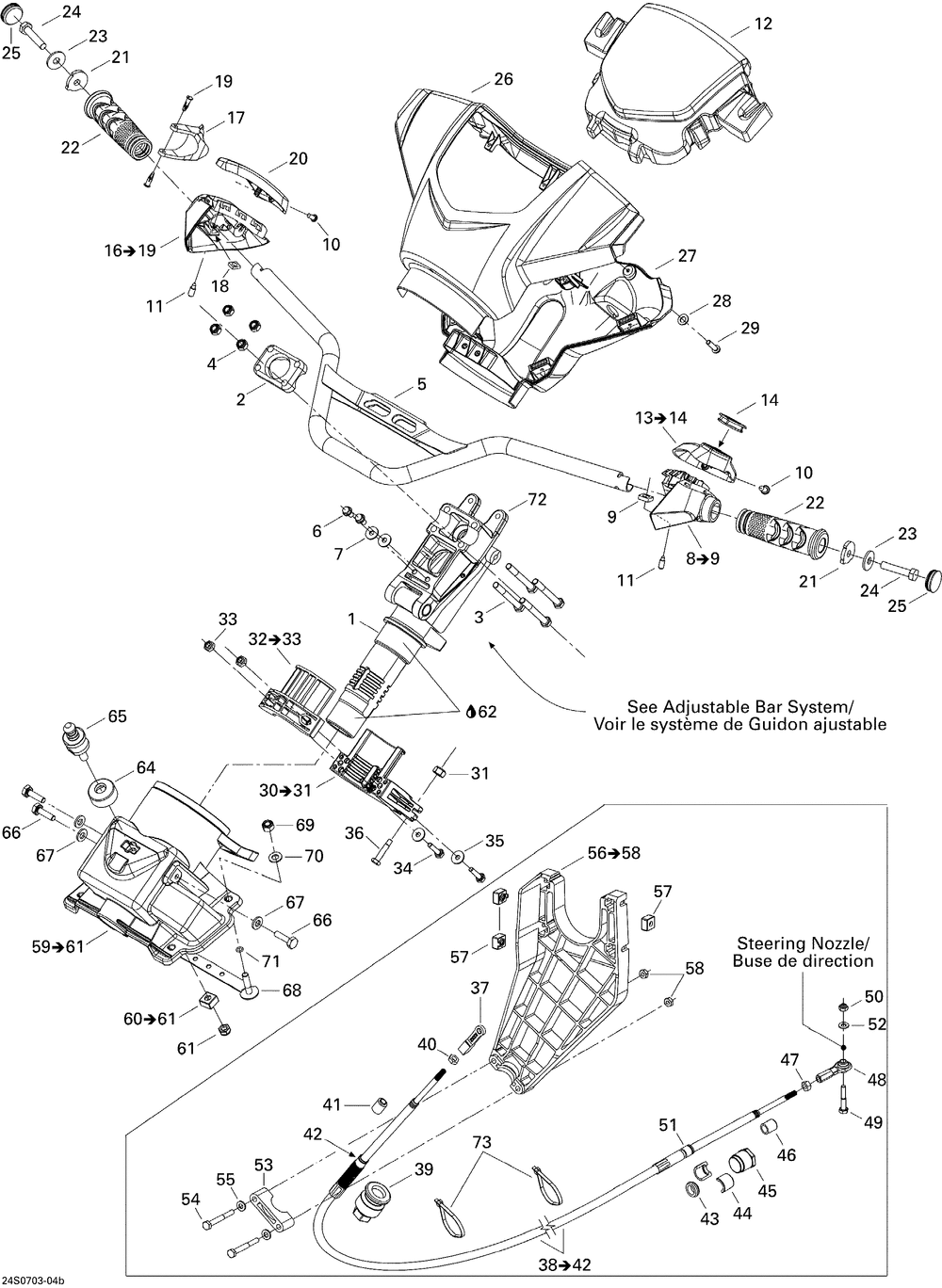

07- Steering System INT
№ Наименование Примечание Кол-во
1 TIGE DIRECTION *STEM-STEERING 1
2 STEERING CLAMP 1
3 HEX. SCREW M8 X 70 (5.000 per pack) 4
4 Hex. Elastic Nut M8, Brass 4
5 HANDLE BAR 1
6 HEX. FLANGED SCREW 1/4"-20 X 1/2" (5.000 per pack) 2
7 Flat Washer M6, Stainless 2
8 HOUSING ASS Y Includes 8 to 9 1
9 SQUARE NUT M6 (10.000 per pack) 1
10 PHILLIPS SCREW M3.9 X 9.5 (5.000 per pack) 2
11 SOCKET HEAD SCREW M6 X 16 (5.000 per pack) 2
12 HANDLE PAD Red/Black 1
12 HANDLE PAD Yellow/Black 1
13 HOUSING COVER ASS Y Includes 13 to 14 Red/Black 1
13 HOUSING COVER Includes 13 to 14 Yellow/Black 1
14 STOP KNOB (5.000 per pack) 1
16 THROTTLE HOUSING ASS Y Includes 16 to 19 1
17 THROTTLE HANDLE 1
19 GOUPILLE *PIN (5.000 per pack) 2
20 THROTTLE HOUSING COVER Red/Black 1
20 HOUSING COVER Yellow/Black 1
21 INSERT GRIP HANDLE 2
22 HANDLE GRIP SLATE GREY 2
24 HEX. SCREW M6 X 30 SCOTCH GRIP (25.000 per pack) 2
25 CAP BLACK (2.000 per pack) 2
26 UPPER STEERING COVER 1
27 LOWER STEERING COVER 1
28 FLAT WASHER M5 STAINLESS (10.000 per pack) 3
29 FLANGED HEX. SCREW K40 X 16 (5.000 per pack) 3
30 SUPPORT Includes 30 to 31 1
31 Elastic Stop Nut M6, Brass 1
32 ARM THRUST Includes 32 to 33 1
34 HEX. SCREW M6 X 25 (5.000 per pack) 2
36 HEX. SCREW M6 X 30 (5.000 per pack) 1
37 BALL JOINT 1
38 STEERING CABLE ASS Y Includes 38 to 42 1
39 AJUSTMENT KNOB 1
40 HEX. NUT 1/4"-28 (10.000 per pack) 1
41 SMALL BOOT 1
42 EMBOUT GRAND *BOOT-LARGE 1
43 RUBBER WASHER (10.000 per pack) 1
44 HALF RING 2
45 STEERING CABLE LOCK 1
48 BALL JOINT 1
49 HEX. SCREW M6 X 35 (5.000 per pack) 1
52 Flat Washer M6, Stainless 1
53 SUPPORT THRUST 1
54 HEX. SCREW M6 X 50 (5.000 per pack) 2
56 CABLE SUPPORT Includes 56 to 58 1
57 M6 Nut Housing Ass'y 3
59 STEERING SUPPORT Includes 59 to 61 1
60 NUT HOUSING ASS Y 1
61 HEX. ELASTIC NUT M10 (5.000 per pack) 1
62 SYNTHETIC GREASE 400 G 0
64 RUBBER PAD 1
65 LATCH STUD 1
66 Hex. Forming Screw M6 X 20 3
68 STEERING SUPPORT 1
70 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 2
71 O-RING (5.000 per pack) 2
72 STEERING SUPPORT 1
73 Tie-Rap 350 mm 2
