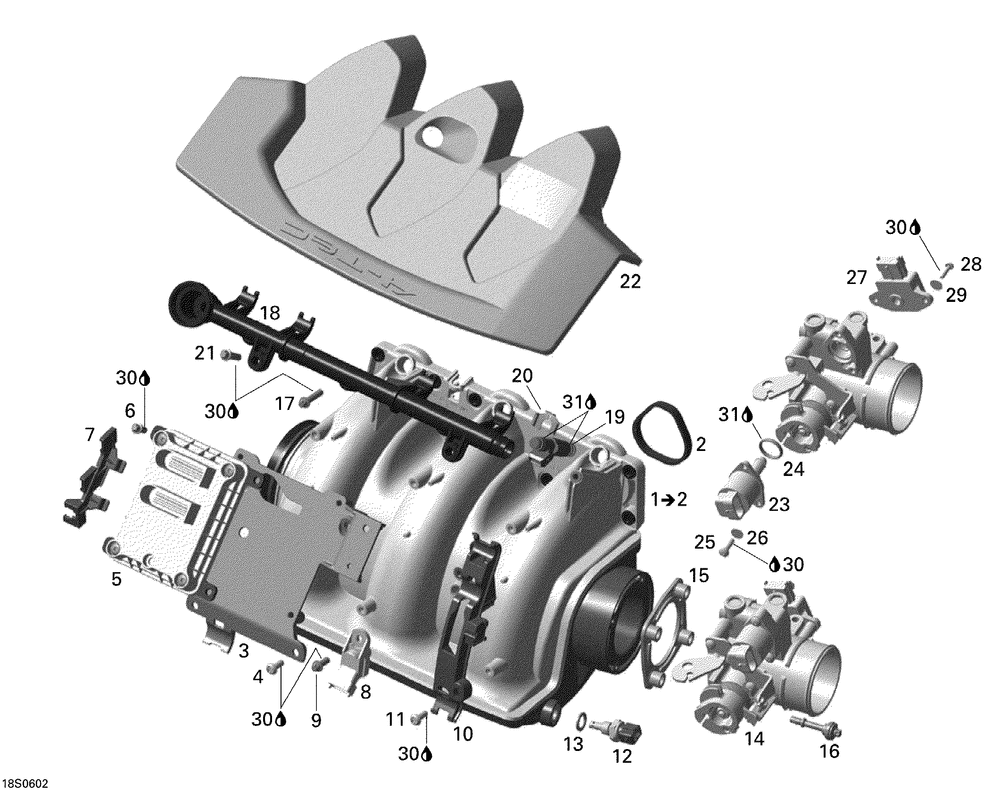

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | AIR INTAKE MANIFOLD Includes 1 to 2 | 1 | |
| 2 | JOINT ETANCHE *GASKET | 3 | |
| 3 | BASE PLATE | 1 | |
| 4 | FLANGED TORX SCREW M6 X 16 (5.000 per pack) | 4 | |
| 5 | ELECTRONIC BOX | 1 | |
| 6 | FLANGED TORX SCREW M6 X 16 | 4 | |
| 7 | CONNECTOR BRACKET | 1 | |
| 8 | PRESSURE SENSOR | 1 | |
| 10 | WIRING SUPPORT | 1 | |
| 12 | TEMPERATURE SENSOR | 1 | |
| 13 | Washer Copper | 1 | |
| 15 | RUBBER GASKET | 1 | |
| 16 | HEX. DISTANCE SCREW M6 X 30.5 | 4 | |
| 17 | FLANGED TORX SCREW M6 X 25 (5.000 per pack) | 7 | |
| 18 | FUEL RAIL ASS Y | 1 | |
| 19 | INJECTOR | 3 | |
| 20 | INJECTOR CLIP | 3 | |
| 23 | IDLE BYPASS VALVE | 1 | |
| 24 | O-RING | 1 | |
| 25 | BINDING HEAD SCREW M5 X 16 | 2 | |
| 26 | SNAP RING | 2 | |
| 27 | POSITION SENSOR | 1 | |
| 28 | PHILLIPS SCREW M4 X 16 (10.000 per pack) | 2 | |
| 29 | Flat Washer 4 mm Stainless | 2 | |
| 30 | LOCTITE 243 10 ML | 0 | |
| 31 | HUILE SEMI*OIL 4T 12X1 BLEND QUART (12.000 per pack) | 0 |
