SEA-DOO GTI SE GTI SE 10- Electrical System GTI SE

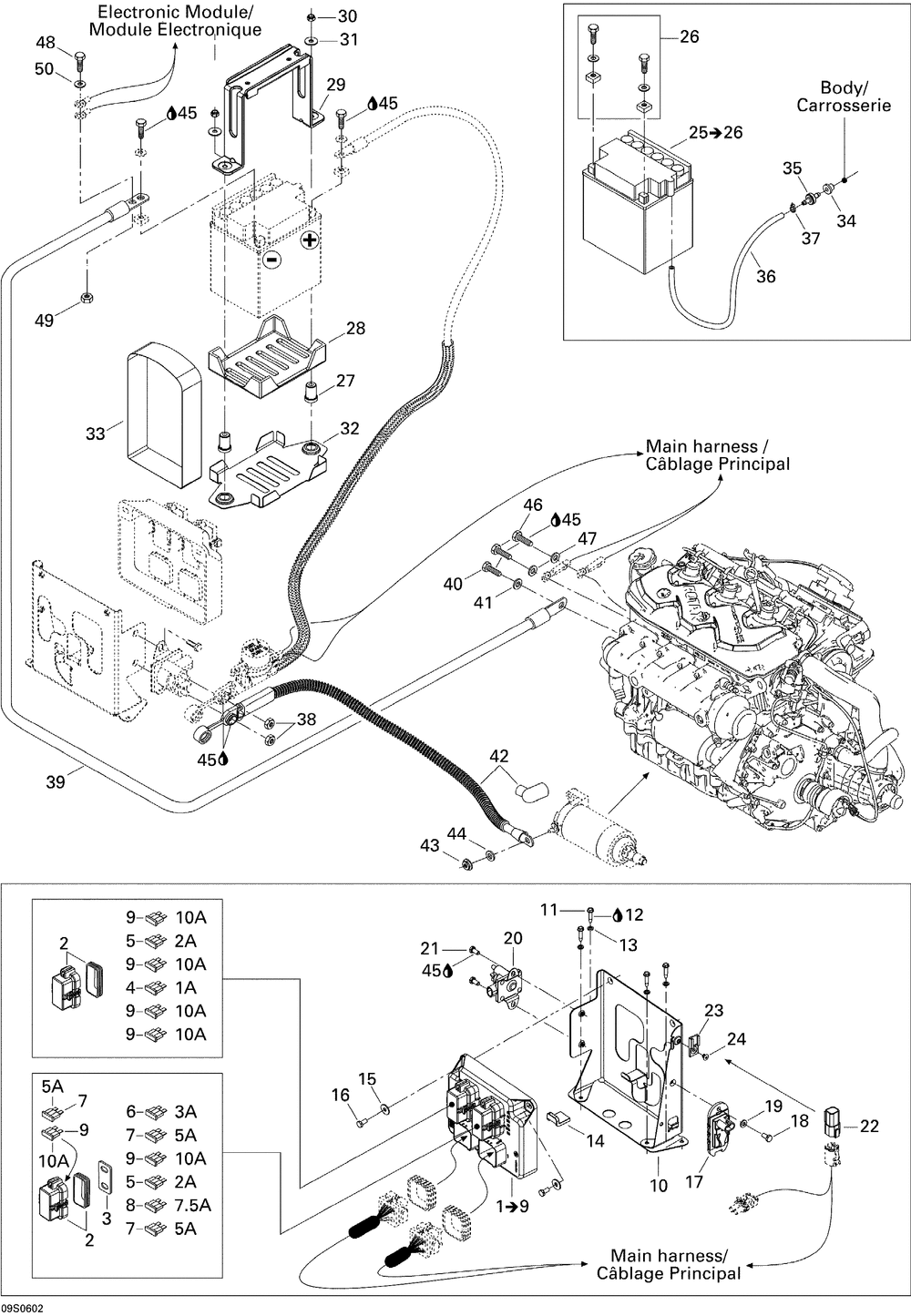

10- Electrical System GTI SE
№ Наименование Примечание Кол-во
1 MULTI PURPOSE ELECTRONIC MODULE MPEM Includes 1 to 9 1
2 FUSE COVER 2
3 COUS.FUSIBLE *FOAM-SUPPORT 1
4 FUSE 1 AMPERE (2.000 per pack) 1
5 FUSE 2 AMPERES 2
6 FUSE 3 AMPERES (5.000 per pack) 1
7 FUSE 5 AMPERES (5.000 per pack) 3
8 FUSE 7.5 AMPERES (5.000 per pack) 1
9 FUSE 10 AMPERES (5.000 per pack) 6
10 MODULE SUPPORT 1
11 HEX SCREW 10 14 X 7/8" (5.000 per pack) 4
12 LOCTITE 271 10 ML 0
13 WASHER-LOCK IMPERIAL (50.000 per pack) 4
14 MODULE PROTECTOR SE5 1
15 Flat Washer M6, Stainless 2
16 HEX. SCREW M6 X 12 SCOTCH GRIP (25.000 per pack) 2
17 INTERRUPTER T.O.P.S. 1
19 Flat Washer M6, Stainless 1
20 STARTER RELAY 1
22 DIAGNOSTIC CONNECTOR 1
23 Clip 1
24 POP RIVET 3/16" (10.000 per pack) 1
25 BATTERIE YB30CLB*BATTERY AMP(DRY) Includes 18 to 19 1
26 BATTERY BOLT KIT (2.000 per pack) 1
27 BUSHING 2
28 LOWER BATTERY PAD 1
29 SUPPORT BATT. *SUPPORT-BATT. 1
30 Hex. Elastic Nut M8, Brass 2
31 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 2
32 SUPP. BATT. *BATT. SUPPORT 1
33 BATTERY STRAP 337 MM 1
34 GROMMET (5.000 per pack) 1
35 CHECK VALVE 1
36 HOSE 6 MM (3.000 per pack) 0
37 Tie-Rap 94 mm 1
38 Hex. Elastic Stop Nut M6 2
39 BATTERY GROUND CABLE ASS Y 1
42 STARTER CABLE 1
43 Elastic Stop Nut M6, Brass 1
45 DIELECTRIC GREASE 150 G 0
48 HEX. CAP SCREW M6 X 12 (5.000 per pack) 1
