SEA-DOO 3D RFI 3D RFI 01- Exhaust System

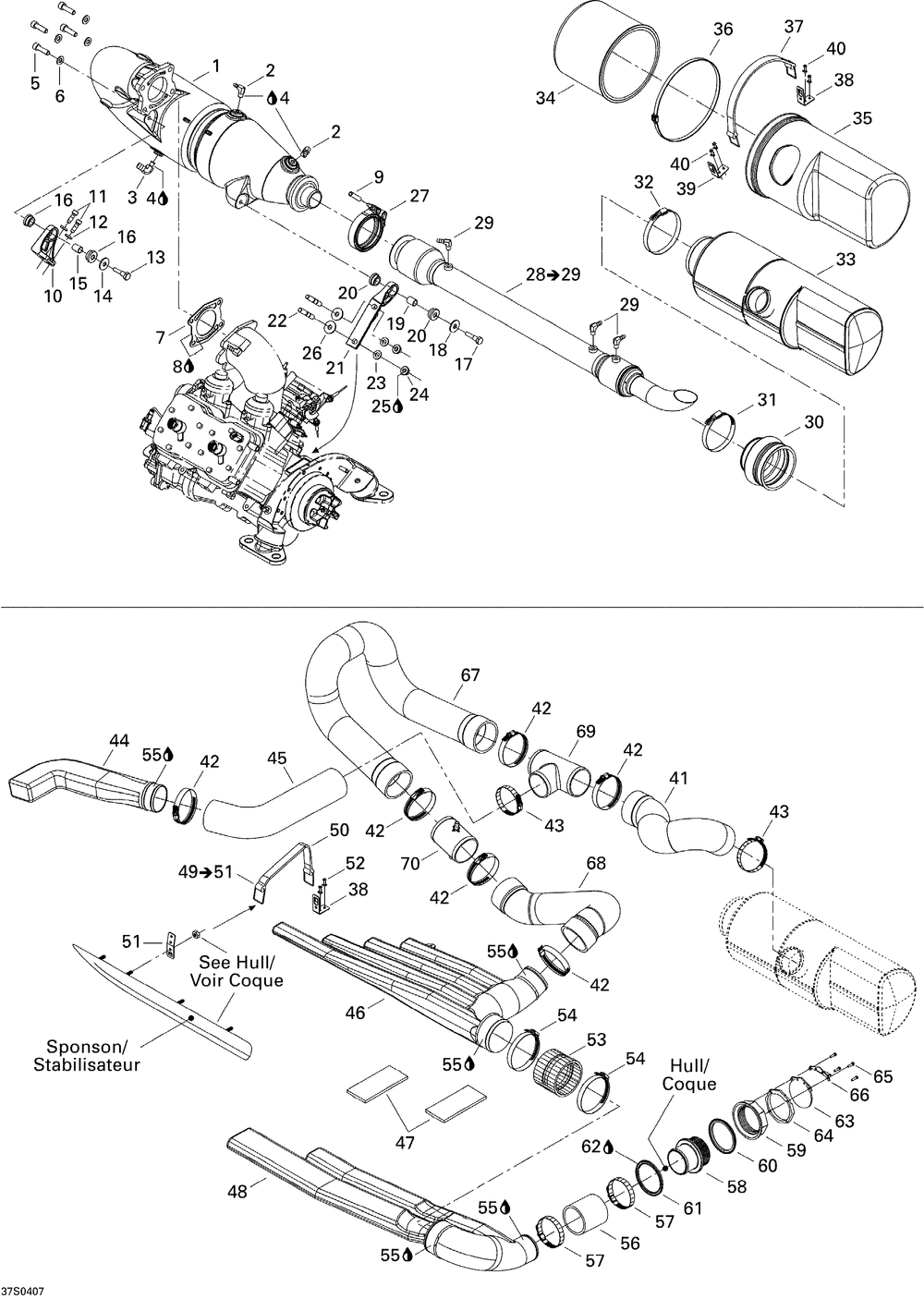

01- Exhaust System
№ Наименование Примечание Кол-во
1 PIPE HEAD BLACK 1
2 RACCORD COUDE90*FITTING-ELBOW 2
3 ELBOW FITTING 90 1
4 LOCTITE 592 PIPE SEALANT 50 ML Package T 0
5 Socket Head Screw M10 X 35, Scotch Grip 4
6 FLAT WASHER 10 MM STAINLESS (5.000 per pack) 4
7 EXHAUST GASKET 1
8 LOCTITE 518 50 ML 0
9 Hose, Polyurethane 0
10 PIPE SUPPORT 1
11 SOCKET HEAD SCREW M8 X 25 SCOTCH GRIP (5.000 per pack) 2
12 FLAT WASHER (5.000 per pack) 2
13 HEX. SCREW M10 X 40 SCOTCH GRIP (4.000 per pack) 1
14 FLAT WASHER 10 MM STAINLESS (5.000 per pack) 1
15 BUSHING 1
16 RUBBER BUSHING (4.000 per pack) 2
21 PIPE SUPPORT 1
22 STUD M10 X 60 2
24 Hex. Flanged Nut M10 2
25 LOCTITE 243 10 ML 0
27 EXHAUST CLAMP 1
28 EXTENSION TUBE Includes 28 to 29 1
30 EXHAUST BELLOW 1
31 TRIDON GEAR CLAMP 1
32 TRIDON GEAR CLAMP 1
33 MUFFLER 1
34 FRONT MUFFLER COVER 1
35 MUFFLER COVER REAR 1
36 TIE-RAP 838 MM 1
37 FUEL TANK STRAP 1
38 STRAP CLIP 90 2
39 STRAP CLIP 1
40 AVDEL RIVET 3/16" (10.000 per pack) 4
41 EXHAUST HOSE 1
42 TRIDON GEAR CLAMP 5
43 TRIDON GEAR CLAMP 3
44 STRAIGHT RESONATOR 1
45 EXHAUST HOSE 1
46 LH UPPER RESONATOR 1
47 RUBBER PAD 2
48 RESONATOR EXTENSION 1
49 STRAP ASS`Y Includes 56 to 58 1
51 STRAP CLIP 1
53 BOYAU RACCORD *HOSE-EXHAUST 1
54 TRIDON GEAR CLAMP 2
55 SEALANT LOCTITE 80 ML 0
56 BOYAU RACCORD *HOSE-EXHAUST 1
58 EXHAUST HOSE OUTLET 1
59 NUT 72 MM 1
60 STABILIZING WASHER 1
61 JOINT ETANCHE *GASKET (5.000 per pack) 1
62 SILICONE SEALANT 51388 300 ML 0
63 JOINT ETANCHE *GASKET 1
64 SUPPORT NUT 1
65 FLANGED HEX. SCREW K40 X 16 (5.000 per pack) 4
66 LANGUETTE *BRACKET 1
67 EXHAUST HOSE 1
68 EXHAUST HOSE 1
69 T-FITTING 1
70 ADAPTER HOSE 1
