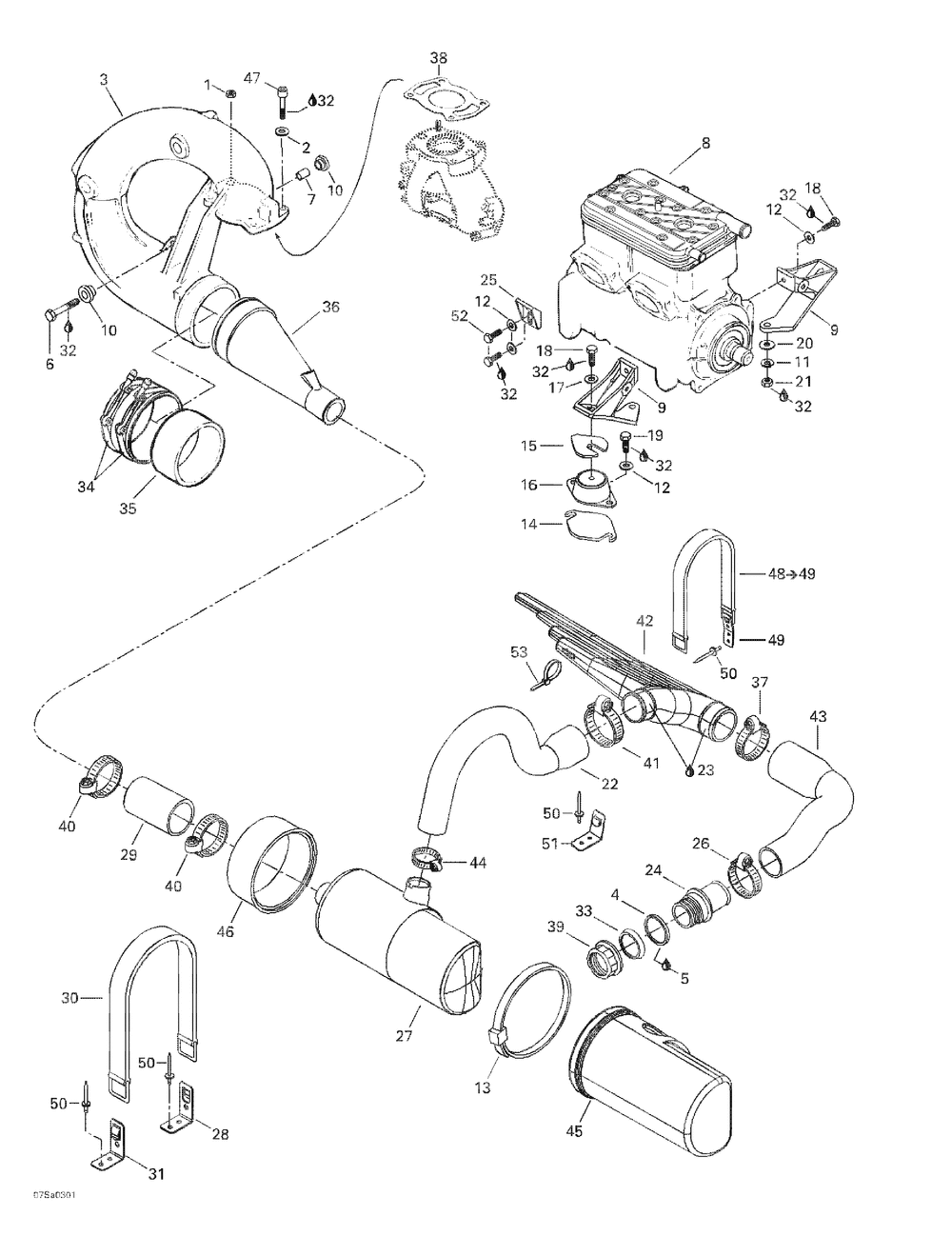

SEA-DOO GTI GTI 01- Engine Support And Muffler
01- Engine Support And Muffler
№ Наименование Примечание Кол-во
SHIM 1.3 MM (5.000 per pack) 0
SHIM 1.3 MM (5.000 per pack) 0
LH ENGINE SUPPORT BLACK 1
1 Hex. Flanged Nut M10 1
2 FLAT WASHER (10.000 per pack) 3
3 TUNED PIPE 1
4 JOINT ETANCHE *GASKET (5.000 per pack) 1
5 SILICONE SEALANT 51388 300 ML 0
6 HEX. SCREW M8 X 40 (5.000 per pack) 1
7 BUSHING 1
9 RH ENGINE SUPPORT BLACK 1
10 RUBBER BUSHING (5.000 per pack) 2
11 Helicoidal Lock Washer M10 2
12 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 14
13 TIE-RAP 838 MM 1
14 SHIM 0.4 MM (5.000 per pack) 0
15 SHIM 0.4 MM (10.000 per pack) 0
16 RUBBER MOUNT 4
17 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 4
18 HEX. SCREW M8 X 25 (5.000 per pack) 6
19 HEX. SCREW M8 X 30 Package XMR Engine 1000 (5.000 per pack) 8
20 FLAT WASHER 10 MM STAINLESS (5.000 per pack) 2
21 HEX. NUT M10 (5.000 per pack) 2
22 EXHAUST HOSE 1
23 SEALANT LOCTITE 80 ML 0
24 EXHAUST HOSE OUTLET 1
25 ENGINE SUPPORT BLACK 2
26 TRIDON GEAR CLAMP 1
27 MUFFLER 1
28 STRAP CLIP 1
29 BOYAU RACCORD *HOSE-EXHAUST 1
30 FUEL TANK STRAP 1
31 STRAP CLIP 90 1
32 LOCTITE 243 10 ML 0
33 STABILIZING WASHER 1
34 NORMA CLAMP 2
35 SEALING RING 1
36 EXHAUST CONE Includes 6 - 7. 1
37 TRIDON GEAR CLAMP 1
38 JOINT ETANCHE *GASKET 1
39 NUT 72 MM 1
40 TRIDON GEAR CLAMP (5.000 per pack) 2
41 TRIDON GEAR CLAMP 1
42 LH UPPER RESONATOR 1
43 HOSE EXHAUST 1
45 REAR COVER MUFFLER 1
46 FRONT COVER MUFFLER 1
47 SOCKET HEAD SCREW M10 X 30 3
48 FUEL TANK STRAP Includes 48 - 49. 1
49 STRAP CLIP (10.000 per pack) 1
50 AVDEL RIVET 3/16" (10.000 per pack) 6
51 STRAP CLIP 1
52 HEX. SCREW M8 X 20 (5.000 per pack) 4
53 Tie-Rap 180 mm 1
