SEA-DOO GTI GTI 07- Steering _24S1512

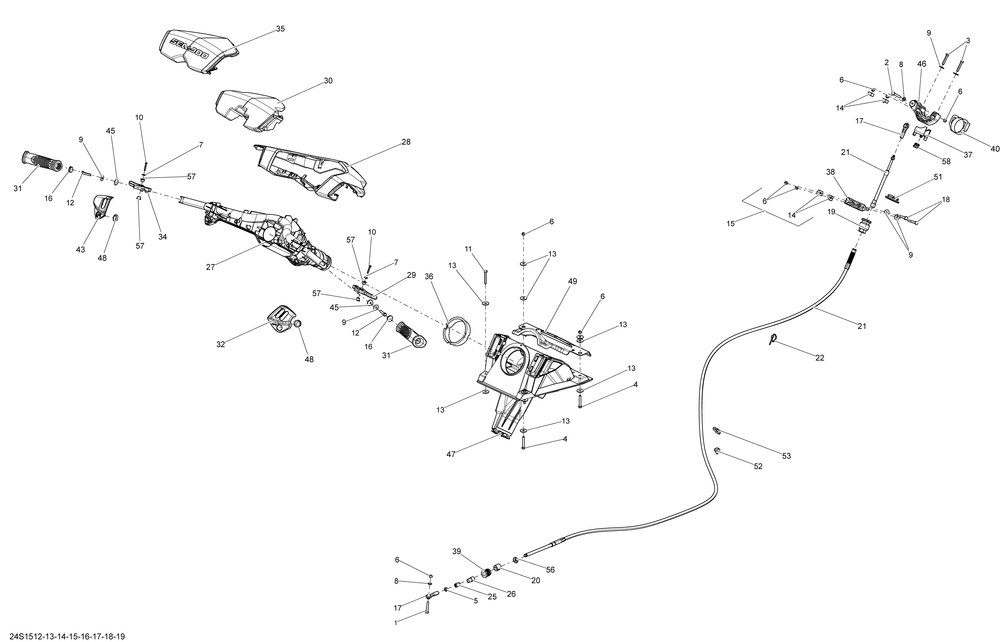

07- Steering _24S1512
№ Наименование Примечание Кол-во
1 HEX. SCREW M6 X 35 (5.000 per pack) 1
2 HEX. SCREW M6 X 40 (10.000 per pack) 1
3 HEX. SCREW M6 X 35 (10.000 per pack) 0
4 HEX CAP SCREW M6X1.0X45 S.GRIP (5.000 per pack) 4
5 HEX. NUT 1/4"-28 (10.000 per pack) 2
6 Elastic Stop Nut M6, Brass 0
7 Flat Washer 4 mm Stainless 0
8 Flat Washer M6, Stainless 2
9 Flat Washer M6, Stainless 0
10 HEX. FLANGED SCREW K40 X 25 Package XT -LTD (5.000 per pack) 0
12 HEX. SCREW M6 X 30 SCOTCH GRIP (25.000 per pack) 2
13 FLAT WASHER M6.6 X 22 (10.000 per pack) 0
14 M6 Nut Housing Ass'y 2
15 Nut Housing Ass'y 4
16 CAP BLACK (2.000 per pack) 2
17 BALL JOINT 2
18 HEX. SCREW M6 X 50 (25.000 per pack) 2
19 AJUSTMENT KNOB 1
20 HALF RING 2
21 STEERING CABLE ASS Y 1
22 Tie-Rap 180 mm 1
25 SMALL BOOT 2
26 EMBOUT GRAND *END PIECE 2
27 DIRECTION 1
28 STEERING COVER 1
29 THROTTLE HANDLE 1
30 HANDLE BAR FOAM 1
31 HANDLE GRIP 2
32 RH HOUSING COVER 1
34 REVERSE HANDLE 1
35 STEERING PAD SILVER 1
36 WEAR RING 1
37 SPACER 1
38 THRUST SUPPORT ASS Y 1
39 STEERING CABLE LOCK 1
40 WEAR RING 1
43 LH HOUSING COVER 1
45 INSERT GRIP HANDLE 2
46 STEERING ARM SUPPORT ASS Y 1
47 SUPPORT-ASS *SUPPORT-ASS 1
48 KNOB SWITCH RED 1
49 DEFLECTOR 1
51 CABLE GROMMET 1
52 Mount Dart 1
53 Tie-Rap 350 mm 1
56 RUBBER WASHER (10.000 per pack) 1
57 BUSHING 2
58 CAP FAN (5.000 per pack) 1
