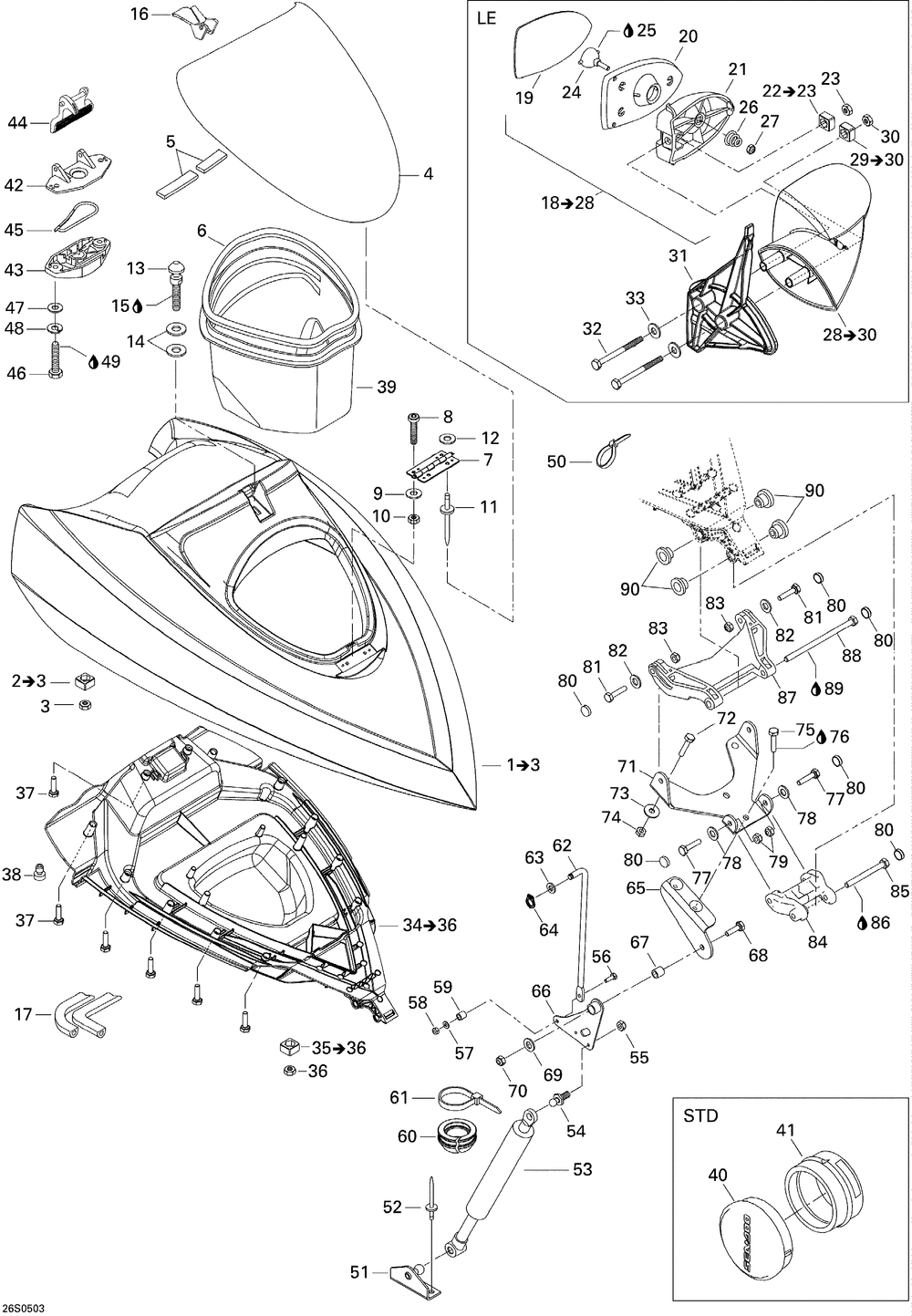

09- Front Storage Compartment LE

SEA-DOO GTI LE RFI GTI LE RFI 09- Front Storage Compartment LE

№	Наименование	Кол-во
1	STORAGE COVER ASS Y LE Includes 1 to 3	1
2	M6 Nut Housing Ass'y	1
3	Hex. Nut M6	1
4	ACCESS COVER BRIGHT YELLOW	1
5	Neoprene Seal Meter	0
6	NEOPRENE SEAL (8.000 per pack)	0
7	HINGE	1
8	SOCKET HEAD SCREW M5 X 16 (10.000 per pack)	2
9	Flat Washer 5 mm, Stainless	2
10	NUT-STOP ELASTIC DIN.985 (10.000 per pack)	2
11	POP RIVET 3/16" (10.000 per pack)	2
13	ANCHORING STUD	1
14	Flat Washer M6, Stainless	2
15	LOCTITE 243 10 ML	0
16	LATCH (2.000 per pack)	1
18	RH MIRROR ASS Y	1
18	LH MIRROR	1
20	MIRROR FRAME	2
21	HOUSING SUPPORT	2
22	NUT HOUSING ASS Y (5.000 per pack)	2
24	RH MIRROR ASS Y	2
25	SYNTHETIC GREASE 400 G	0
26	RH MIRROR ASS Y	2
27	Hex. Elastic Stop Nut M6	2
28	LH SHELL ASS Y LE Includes 28 to 30	1
28	RH SHELL ASS Y LE Includes 28 to 30	1
29	NUT HOUSING ASS Y (5.000 per pack)	1
31	RH SPACER LE	1
31	LH SPACER LE	1
32	HEX. SCREW M8 X 120 (5.000 per pack)	4
33	FLAT WASHER 8 MM STAINLESS (10.000 per pack)	4
34	LOWER COVER ASS Y Includes 18 to 20	1
37	HEX. FLANGED SCREW K40 X 13 (25.000 per pack)	18
38	Rubber Bumper	2
39	GLOVE BOX	1
42	LATCH COVER	1
43	LATCH ASS Y	1
44	LATCH ASS Y	1
45	LATCH SPRING (3.000 per pack)	1
46	HEX. SCREW M6 X 30 (5.000 per pack)	2
47	Flat Washer M6, Stainless	2
48	Lock Washer Helical M6	2
50	Tie-Rap 350 mm	2
51	SHOCK SUPPORT	1
52	AVDEL RIVET 3/16" (10.000 per pack)	2
53	GAS SHOCK	1
54	GOUJON A TETE *BALL-STUD	1
55	Hex. Elastic Nut M8	1
56	HEX. SCREW M4 X 16 (5.000 per pack)	1
57	Flat Washer 4 mm Stainless	1
58	NUT-STOP ELASTIC DIN.985A2 (5.000 per pack)	1
59	SPACER	1
60	CABLE GROMMET	1
61	Tie-Rap 180 mm	1
62	TIGE *ROD	1
64	CIRCLIP 6 MM (5.000 per pack)	1
65	SUPPORT LEVER	1
66	LEVER	1
67	SPACER	1
68	HEX. SCREW M6 X 30 (10.000 per pack)	1
71	PIVOT SUPPORT	1
72	Hex. Forming Screw M6 X 20	2
77	HEX. SPECIAL SCREW M6 X 25 (5.000 per pack)	2
80	Black Snap Cap	6
84	FRONT ARM	1
85	HEX. SCREW M6 X 60 (5.000 per pack)	1
87	REAR ARM	1
88	Hex. Screw M6 X 100	1
90	Sleeve	4
