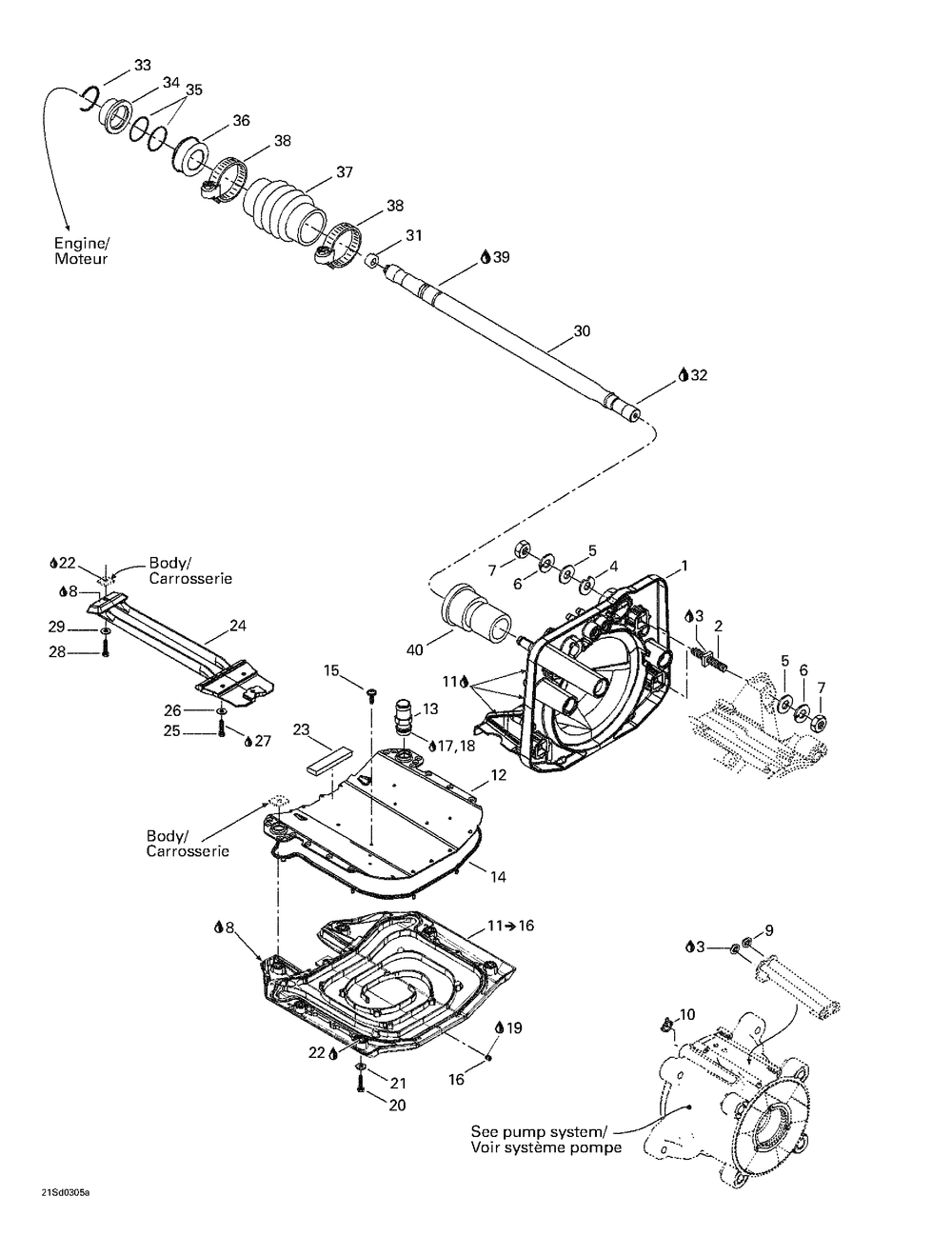

05- Propulsion System

№	Наименование	Кол-во
1	PUMP SUPPORT	1
2	SQUARE STUD	4
3	LOCTITE 518 50 ML	0
4	SHIM 0.3 MM (5.000 per pack)	6
5	FLAT WASHER 10 MM STAINLESS (5.000 per pack)	8
6	Helicoidal Lock Washer M10	8
7	HEX. NUT M10 (5.000 per pack)	8
8	SEALANT LOCTITE 5900 300 ML	0
9	WATERTIGHT SEAL	2
10	REDUCER YELLOW	1
11	RIDING PLATE ASS Y Includes 12 to 20	1
13	STRAIGHT PLASTIC FITTING	2
14	JOINT ETANCHE *SEAL	1
15	TORX BUTTON HEAD SCREW M6 X 14	36
16	SOCKET DRAIN PLUG M6 X 12 (4.000 per pack)	1
17	(ORM-D) LOCTITE PRIMER N 128 G	0
18	LOCTITE 577 250 ML	0
19	LOCTITE PIPE SEALANT 250 ML	0
20	HEX. SCREW M8 X 30 SCOTCH GRIP (10.000 per pack)	6
21	FLAT WASHER 8 MM STAINLESS (10.000 per pack)	6
22	SILICONE SEALANT 51388 300 ML	0
23	Gasket, Neoprene	0
24	PUMP GRATE	1
25	HEX. SCREW M6 X 16 (5.000 per pack)	3
26	Flat Washer M6, Stainless	3
27	LOCTITE 271 10 ML	0
30	DRIVE SHAFT	1
31	DRIVE SHAFT PLUG	1
32	SYNTHETIC GREASE 400 G	0
33	C-CLIP	1
34	SUPPORT RING	1
35	O-RING Except Engine 130 (10.000 per pack)	2
36	CARBON RING	1
37	BELLOWS	1
38	NORMA CLAMP Legend SE 800 SDI.	2
39	LOCTITE 767 ANTISEIZE LUBRICANT 8 OZ	0
40	HULL INSERT 41 MM	1
