SEA-DOO RX DI, 6122/6123 RX DI, 6122/6123 10- Rear Electrical Box

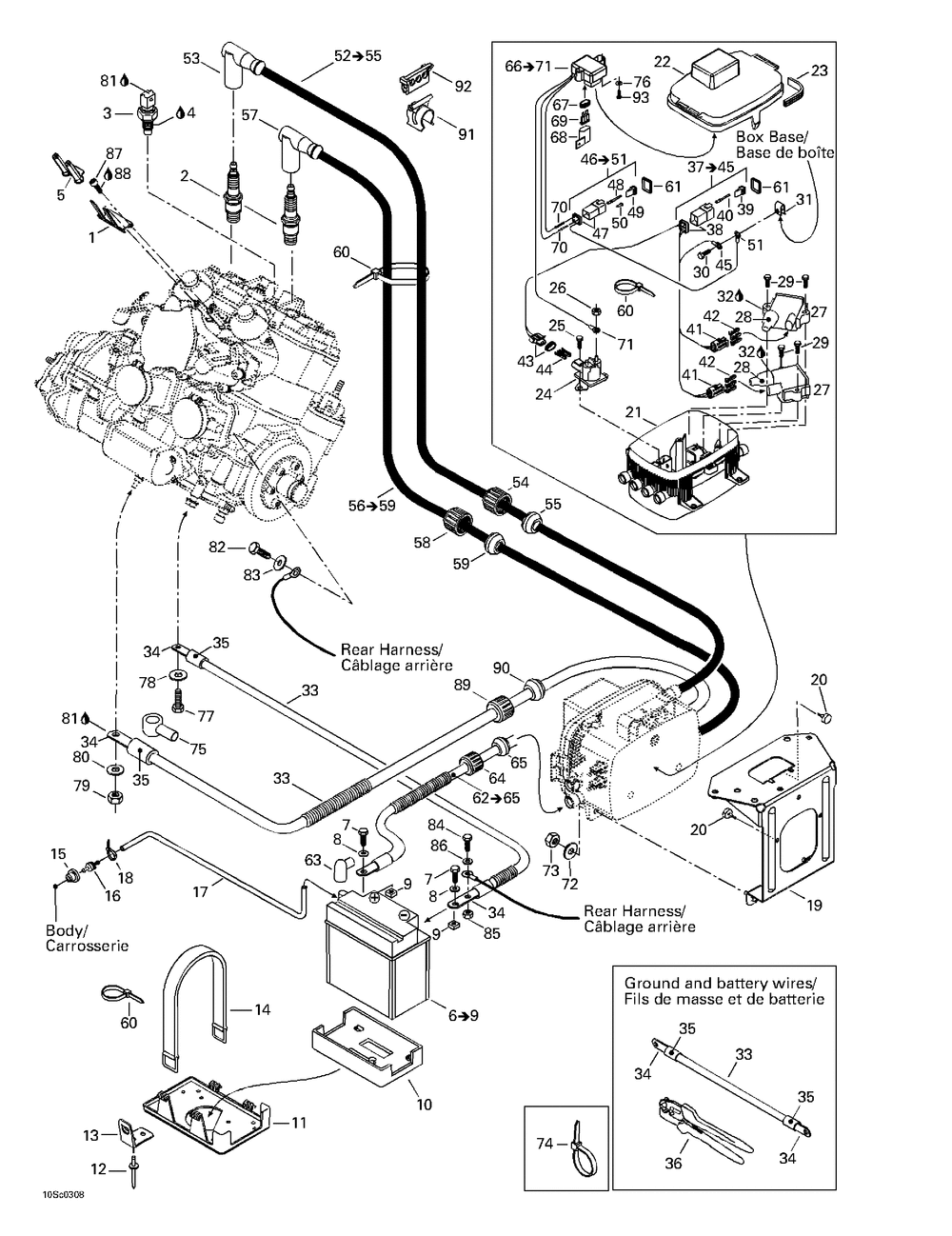

10- Rear Electrical Box
№ Наименование Примечание Кол-во
CABLE MASSE ASS*CABLE-GROUND Includes 3435 1
Tie-Rap 180 mm 0
Tie-Rap 350 mm 0
1 GROUND PLATE 1
2 BOUGIE ALLUMAGE*PLUG-SPARK ZFR4F11 (4.000 per pack) 2
3 TEMPERATURE SENSOR 1
4 LOCTITE 518 50 ML 0
5 INSULATOR 1
6 BATTERIE YB16CLB *BATTERY (DRY) Includes 5 to 8 1
7 HEX. SCREW M6 X 16 (10.000 per pack) 2
8 FLAT WASHER 6 MM (5.000 per pack) 2
9 HEX. NUT M6 (10.000 per pack) 2
10 LOWER BATTERY PAD 1
11 SUPPORT BATT. *SUPPORT-BATT. 1
12 AVDEL RIVET 3/16" (10.000 per pack) 4
13 STRAP CLIP 1
14 RETAINER STRAP 2
15 GROMMET (5.000 per pack) 1
16 CHECK VALVE 1
17 HOSE 6 MM (3.000 per pack) 0
18 Tie-Rap 94 mm 1
19 SUPPORT BOITE *SUPPORT-BOX 1
20 Rubber Bumper 4
21 ELECTRIC BOX BASE 1
22 COUVERCLE BOITE*BOX COVER 1
23 JOINT ETANCHE *GASKET 1
24 STARTER RELAY 1
25 HEX. FLANGED SCREW M6 X 10 (5.000 per pack) 2
26 Hex. Elastic Stop Nut M6 2
27 IGNITION COIL 2
28 PROTECTOR CAP 2
29 SCREW-TAPP.HEX.ISO.1479F (10.000 per pack) 4
30 Hex. Screw M6 X 16, Scotch Grip 1
32 DIELECTRIC GREASE 150 G 0
33 CABLE ROUGE *CABLE-RED Includes 3435758990 1
37 CABLAGE BOITE *HARNESS-BOX Includes 32 to 40 1
38 BLOC 6 CIRC.FEM*HOUSING-TAB 1
39 CALE 6 CIRC.FEM*WEDGE-6 WAYS F (5.000 per pack) 1
40 MALE TERMINAL (10.000 per pack) 6
41 MALE TERMINAL HOUSING 3 CIRCUITS 2
42 FEMALE TERMINAL (10.000 per pack) 6
43 MALE CONNECTOR 2 CIRCUITS (5.000 per pack) 1
44 FEMALE TERMINAL (5.000 per pack) 2
45 OPEN BARREL (10.000 per pack) 1
46 CABLAGE BOITE *HARNESS Includes 46 - 51. 1
47 BLOC 4 CIRC.FEM*HOUSING-TAB 1
48 MALE TERMINAL (3.000 per pack) 1
49 CALE 4 CIRC.MAL*WEDGE-4 WAYS M 1
50 Sealing Cap 1
52 COIL CABLE 735 MM Includes 46 to 48 1
54 ELECTRIC WIRE CAP (5.000 per pack) 1
55 PASSE-FILS NOIR*GROMMET-BLACK (5.000 per pack) 1
56 COIL CABLE 560 MM Includes 49 to 51 1
60 Tie-Rap 142 mm 3
61 JOINT ETANCHE *GASKET 2
62 CABLE ROUGE *CABLE-RED Includes 62 - 65. 1
63 PROTECTION CAP (5.000 per pack) 1
65 PASSE-FILS NOIR*GROMMET-BLACK 1
66 CUT-OFF RELAY Includes 62 to 65 1
67 CUSHION (5.000 per pack) 1
69 FUSE 30 AMPERES (5.000 per pack) 1
70 MALE TERMINAL 2
72 Flat Washer M6, Stainless 3
76 FLAT WASHER M5 STAINLESS (10.000 per pack) 2
77 HEX. SCREW M10 X 20 SCOTCH GRIP (5.000 per pack) 1
78 FLAT WASHER 10 MM STAINLESS (5.000 per pack) 1
80 Flat Washer M6, Stainless 1
82 HEX. SCREW M6 X 12 SCOTCH GRIP (25.000 per pack) 1
84 HEX. CAP SCREW M6 X 12 (5.000 per pack) 1
87 SOCKET HEAD SCREW M6 X 25 (10.000 per pack) 4
88 LOCTITE 243 10 ML 0
91 COLLAR SUPPORT 1
92 WIRE SUPPORT 1
93 HEX. PLASTITE SCREW M5.28 X 16 (5.000 per pack) 2
