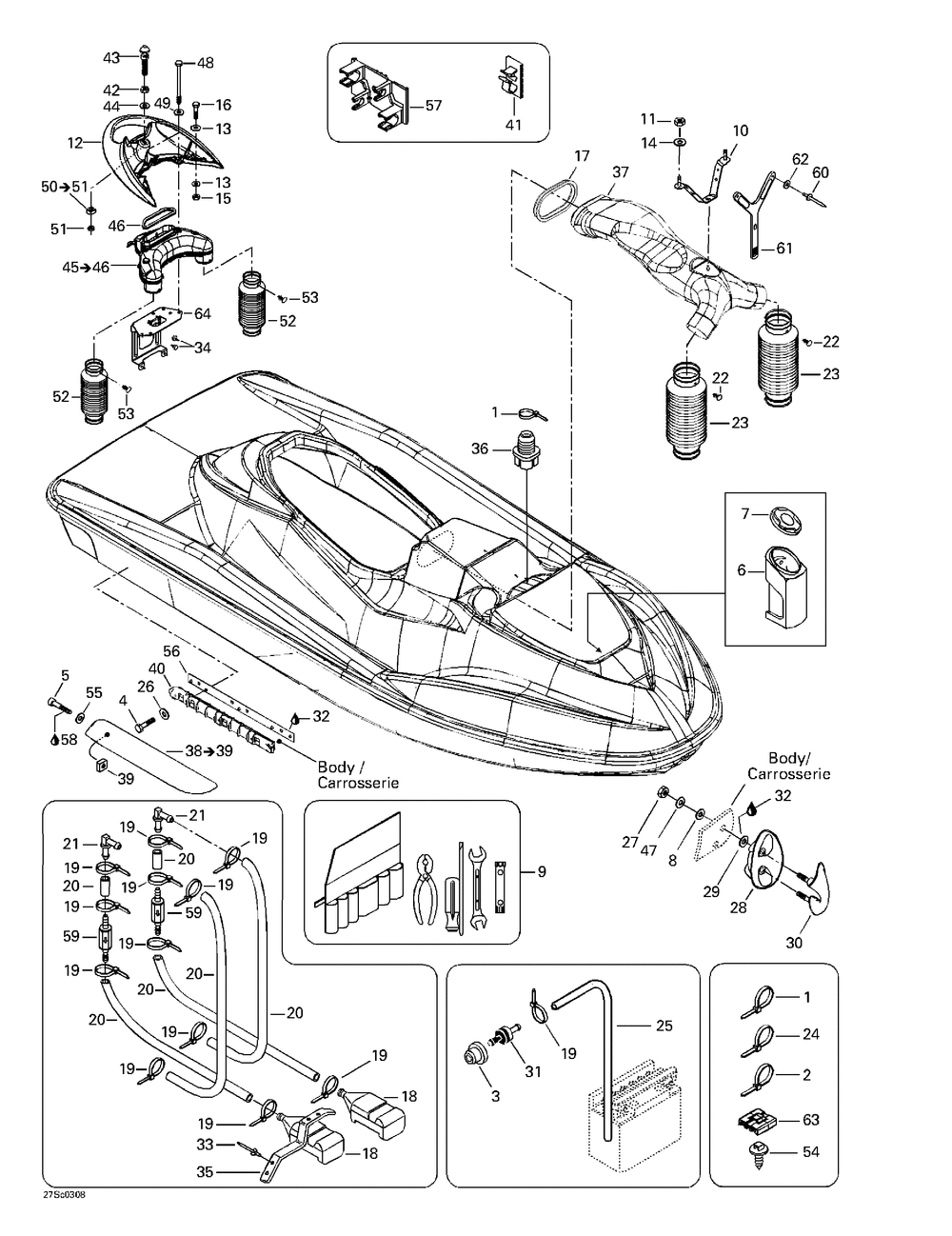

SEA-DOO RX DI, 6122/6123 RX DI, 6122/6123 09- Body Front View
09- Body Front View
№ Наименование Примечание Кол-во
AJOUT STAB. *INSERT-STAB. 1
BASE STAB.GA. *BASE-STAB.LH. 1
STABILISAT.GA. *SPONSON-LH. 1
1 Tie-Rap 180 mm 0
2 Tie-Rap 350 mm 0
3 GROMMET (5.000 per pack) 1
4 HEX. SCREW M6 X 30 SCOTCH GRIP (10.000 per pack) 10
5 SOCKET HEAD SCREW M6 X 50 (10.000 per pack) 2
6 EXTINGUISHER HOUSING 1
7 EXTINGUISHER CAP 1
8 RUBBER WASHER (5.000 per pack) 2
9 TROUSSE OUTIL *KIT-TOOL OWNER 1
10 COLLECTOR SUPPORT 1
11 Hex. Elastic Nut M8 2
12 GRAB HANDLE 1
13 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 6
16 HEX. SCREW M8 X 45 (5.000 per pack) 3
17 COLLECTOR JOINT 1
18 BAILER SCREEN 2
19 Tie-Rap 94 mm 13
20 POLYURETHANE HOSE 8 MM (3.000 per pack) 0
21 ELBOW FITTING 90 2
22 Dart, Fastex 2
23 VENT HOSE 2
24 Tie-Rap 142 mm 0
25 HOSE 6 MM (3.000 per pack) 0
26 Flat Washer M6, Stainless 10
28 SHELL BLACK 1
30 AMARRE NOIRE *BOW-EYE/BLACK 1
31 CHECK VALVE 1
32 SILICONE SEALANT 51388 300 ML 0
33 AVDEL RIVET 3/16" (10.000 per pack) 4
34 Rubber Bumper 4
35 LH SPRING CLIP 2
36 GROMMET 1
37 FRONT COLLECTOR 1
38 STABILISAT.DR. *SPONSON-RH. Includes 38 - 39. 1
40 BASE STAB.DROIT*BASE-STAB.RH. 1
41 ATTACHE COLLIER*TIE-CLAMP (5.000 per pack) 0
42 HEX. JAM NUT M10 (5.000 per pack) 1
43 LATCH STUD 1
44 FLAT WASHER 10 MM STAINLESS (5.000 per pack) 1
45 VENT TUBE BAFFLE ASStahos_Y Includes 11 to 12 1
46 BAFFLE SEAL 1
47 FLAT WASHER 8 MM STAINLESS (5.000 per pack) 2
49 Flat Washer M6, Stainless 3
50 NUT HOUSING ASS Y 1
51 HEX. ELASTIC NUT M10 (5.000 per pack) 1
54 MOUNT DART (5.000 per pack) 0
56 AJOUT STAB. *INSERT-STAB. 1
57 CLAMP TIE 1
58 LOCTITE 271 10 ML 0
59 CHECK VALVE 2
60 POP RIVET 3/16" (5.000 per pack) 2
61 RUBBER STRAP 1
62 Flat Washer 5 mm, Stainless 2
63 TIE-RAP MOUNT (5.000 per pack) 0
64 SUPPORT BOITE *SUPPORT-BOX 1
