SEA-DOO XP DI, 6130/6131 XP DI, 6130/6131 02- Fuel System

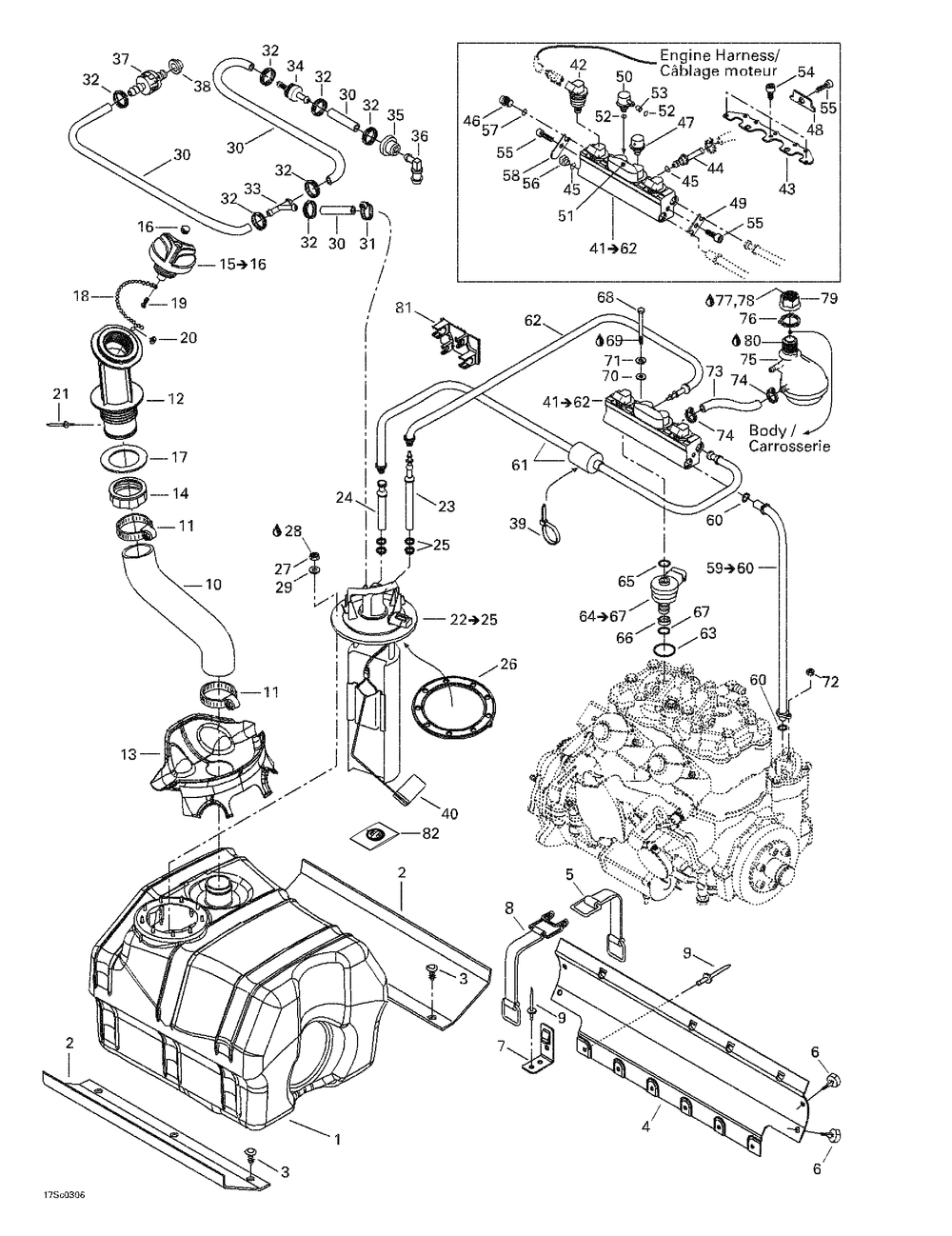

02- Fuel System
№ Наименование Примечание Кол-во
1 FUEL TANK Includes 1 to 3 1
2 RUBBER PAD 2
3 BLACK DART (5.000 per pack) 8
4 HEAT SHIELD 1
5 FUEL TANK STRAP 3
6 RUBBER STOPPER 4
7 STRAP CLIP 90 3
8 FUEL TANK STRAP 3
9 AVDEL RIVET 3/16" (10.000 per pack) 12
10 BOYAU REMPLIS. *FILLER HOSE 1
11 TRIDON GEAR CLAMP (5.000 per pack) 2
12 FUEL FILLER NECK 1
13 FUEL SHIELD 1
14 FILLER NECK NUT FUEL 1
15 FUEL TANK CAP BLACK Includes 6 to 7 1
16 SNAP CAP BLACK (5.000 per pack) 1
17 JOINT ETANCHE *GASKET (5.000 per pack) 1
18 FUEL CAP CHAIN 1
19 SCREW K40 X 10 (5.000 per pack) 1
20 FLAT WASHER M3 STAINLESS (10.000 per pack) 1
21 POP RIVET 1/8" (50.000 per pack) 1
22 FUEL MODULE ASS Y Includes 22 - 25. 1
25 Oetiker Clamp 4
26 JOINT ETANCHE *GASKET 1
27 HEX. FLANGED NUT M5 (10.000 per pack) 9
28 LOCTITE 243 10 ML 0
29 RUBBER WASHER (9.000 per pack) 9
30 BOYAU 1/4 *HOSE-1/4 (10.000 per pack) 0
31 TRIDON GEAR CLAMP (10.000 per pack) 1
32 CAILLAU CLIC CLAMP (5.000 per pack) 7
33 Y-FITTING 1
34 CHECK VALVE 1
35 GROMMET 1
36 ELBOW MALE CONNECTOR (5.000 per pack) 1
37 CHECK VALVE 1
38 GROMMET (5.000 per pack) 1
39 Tie-Rap 350 mm 2
40 SENSOR LEVER 1
41 FUEL DISTRIBUTOR Includes 41 - 62. 1
42 FUEL INJECTOR 2
43 RETAINER PLATE 1
44 RACCORD RETOUR *ADAPTER-AIR 1
45 O-RING (2.000 per pack) 2
46 FUEL PLUG 1
47 AIR REGULATOR 1
48 RETAINER PLATE 1
49 RETAINER PLATE 1
50 FUEL REGULATOR 1
51 COUVERCLE *COVER 1
52 O-RING (2.000 per pack) 2
53 SPACER 1
54 SOCKET HEAD SCREW M5 X 12 (5.000 per pack) 3
55 SOCKET HEAD SCREW M6 X 12 (10.000 per pack) 3
56 AIR PLUG 1
57 O-RING 1
58 RETAINER PLATE 1
59 PRESSURE HOSE Includes 70 to 71 1
60 O-RING (2.000 per pack) 2
61 FUEL FEEDING HOSE ASS Y 1
62 BOYAU ASSEMBLE *HOSE-ASS Y 1
63 O-RING 2
64 AIR INJECTOR Includes 62 - 65. 2
65 O-RING 2
66 INJECTOR RING 2
67 O-RING 2
68 HEX. SCREW M8 X 70 (5.000 per pack) 2
70 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 2
71 Lock Washer 8 mm, Stainless 2
72 Hex. Elastic Stop Nut M6 1
73 BOYAU 8MM. *HOSE-8MM. (3.000 per pack) 0
75 NOISE REDUCER 1
76 SEAL WASHER 1
77 (ORM-D) LOCTITE PRIMER N 128 G 1
79 SPECIAL NUT M27 (5.000 per pack) 1
80 SILICONE SEALANT 51388 300 ML 0
81 CLAMP TIE 1
82 FUEL FILTER BOSCH 1
