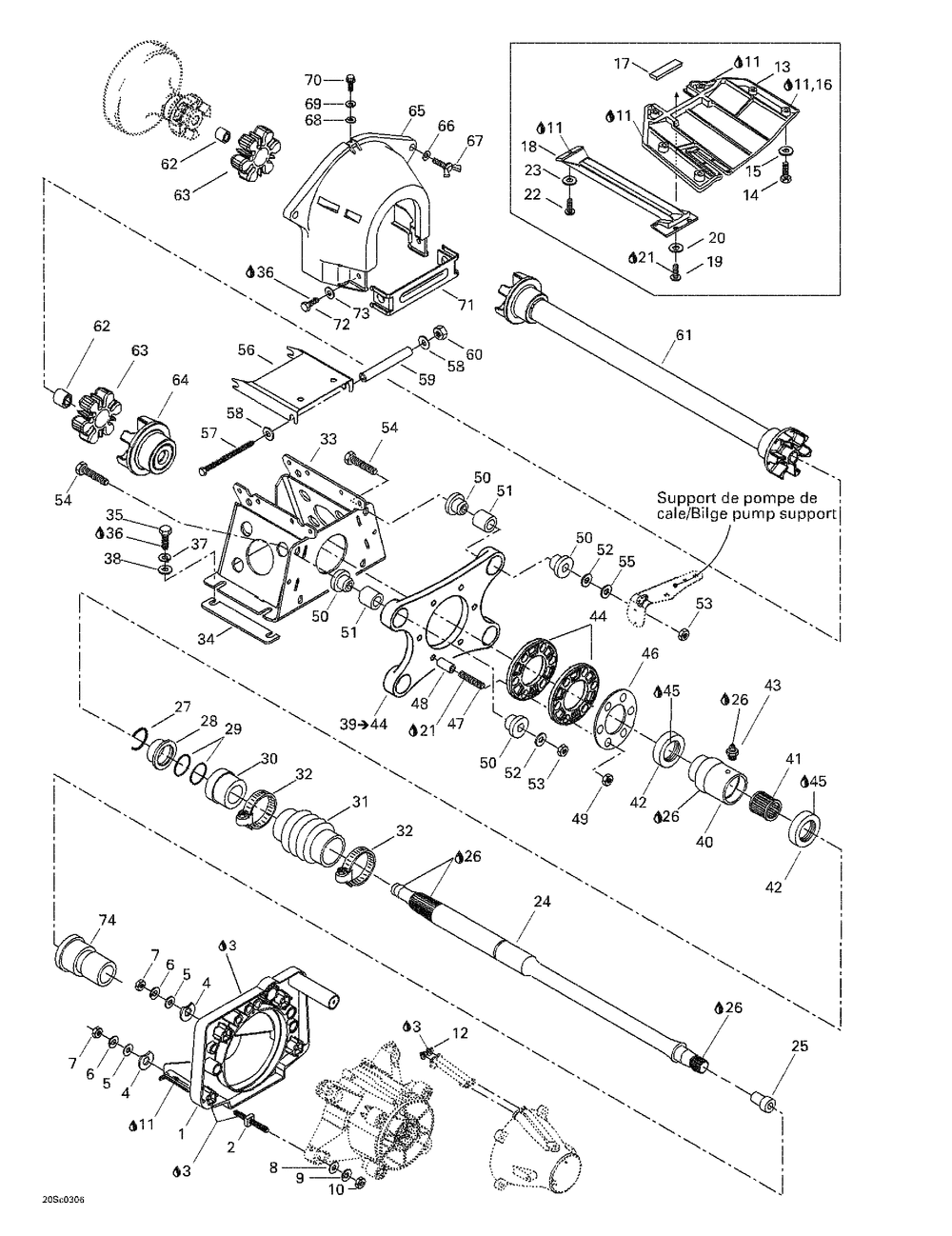

SEA-DOO XP DI, 6130/6131 XP DI, 6130/6131 05- Propulsion
05- Propulsion
№ Наименование Примечание Кол-во
FLAT WASHER 10 MM STAINLESS (5.000 per pack) 2
1 PUMP SUPPORT 1
2 SQUARE STUD 4
3 LOCTITE 518 50 ML 0
4 SHIM 0.3 MM (5.000 per pack) 8
5 FLAT WASHER 10 MM STAINLESS (5.000 per pack) 2
6 Helicoidal Lock Washer M10 4
7 HEX. NUT M10 (5.000 per pack) 4
11 SEALANT LOCTITE 5900 300 ML 0
12 WATERTIGHT SEAL 3
13 RIDING PLATE BLACK 1
14 HEX. SCREW M8 X 30 SCOTCH GRIP (10.000 per pack) 6
15 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 6
16 SILICONE SEALANT 51388 300 ML 0
17 Neoprene Seal Meter 0
18 GRILLE POMPE *GRATE-PUMP 1
19 HEX. SCREW M6 X 16 (5.000 per pack) 2
20 Flat Washer M6, Stainless 2
21 LOCTITE 271 10 ML 0
24 DRIVE SHAFT 1
25 DRIVE SHAFT PLUG (5.000 per pack) 1
26 SYNTHETIC GREASE 400 G 0
27 C-CLIP (10.000 per pack) 1
28 SUPPORT RING 1
29 O-RING (5.000 per pack) 2
30 CARBON RING 1
31 BELLOWS 1
32 NORMA CLAMP (5.000 per pack) 2
33 SHAFT SUPPORT 1
34 SHIM (2.000 per pack) 2
35 HEX. SCREW M8 X 30 Package XMR Engine 1000 (5.000 per pack) 4
36 LOCTITE 243 10 ML 0
37 Lock Washer 8 mm, Stainless 4
39 DAMPING SUPPORT Includes 39 - 44. 1
40 JOINT SUPPORT 1
41 NEEDLE BEARING SCE1416-L271/STDtahos_E 1
42 DOUBLE LIP SEAL 2
43 GREASE FITTING (5.000 per pack) 1
44 ALIGNMENT WASHER 2
46 FIXATION WASHER 1
47 STUD M6 X 30 (5.000 per pack) 6
48 SPACER 2
50 RUBBER BUSHING (5.000 per pack) 8
51 BUSHING 4
53 Hex. Elastic Nut M8 4
54 HEX. SCREW M8 X 45 (5.000 per pack) 4
55 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 2
56 SHAFT GUARD 1
57 HEX. SCREW M6 X 120 1
58 Flat Washer M6, Stainless 2
59 SPACER 1
60 Hex. Elastic Stop Nut M6 1
61 TRANSMISSION SHAFT ASStahos_Y 1
62 SNAP BUSHING 2
63 RUBBER ADAPTOR 2
64 COUPLER ASStahos_Y 1
65 FLYWHEEL GUARD 1
67 WING SCREW M8 X 25 (5.000 per pack) 2
68 FLAT WASHER M5 STAINLESS (10.000 per pack) 1
69 HELICAL LOCK WASHER M5 (5.000 per pack) 1
70 HEX. PLASTITE SCREW M5.28 X 16 (5.000 per pack) 1
71 FRONT LOWER GUARD 1
74 HULL INSERT 33 MM 1
