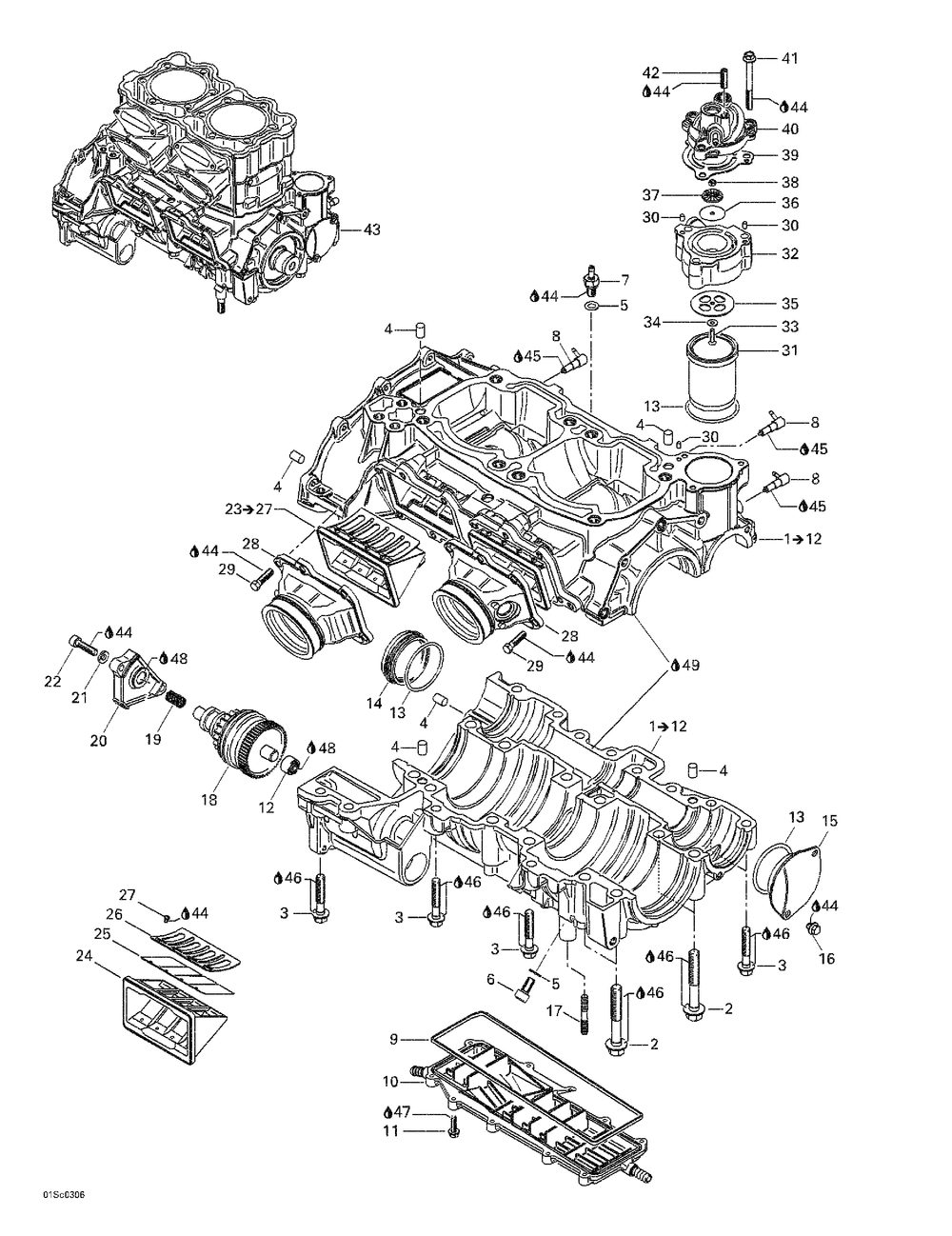

01- Crankcase Reed Valve

№	Наименование	Кол-во
1	CRANKCASE ASSY 947-DI Includes 1 - 12.	1
2	HEX. FLANGED SCREW M10 X 73.5	12
3	HEX. FLANGED SCREW M8 X 45	12
4	Center Pin 8 X 12	6
5	Sealing Ring	2
6	SOCKET HEAD SCREW M8 X 16 (5.000 per pack)	1
7	VENT NIPPLE M8	1
8	CHECK VALVE	3
9	RUBBER RING	1
10	WATERCHANNEL COVER	1
11	TAPTITE SCREW M5 X 20 (5.000 per pack)	10
12	ROULEMENT AIGUI*BUSHING-NEEDLE	1
13	O-RING	3
14	BEARING COVER	1
15	BEARING COVER	1
16	Hex. Flanged Screw M6 X 12	2
17	STUD M10 X 18 (10.000 per pack)	3
18	STARTER DRIVE ASS Y	1
19	SPRING Model With Electric Starter	1
20	COUVERCLE LANC.*COVER-DRIVE ST	1
21	Spring Washer	2
22	SOCKET HEAD SCREW M6 X 22 (10.000 per pack)	2
23	REED VALVE ASS Y Includes 23 to 27	2
25	REED PEDAL	4
26	REED PEDAL STOP	4
27	PHILLIPS SCREW M3 X 5 (10.000 per pack)	16
28	CARBURATOR ADAPTER ASS Y	2
29	Hex. Flanged Screw M6 X 25	12
30	GOUPILLE CENTRE*PIN	3
31	COMPRESSOR SLEEVE	1
32	COMPRESSOR HEAD	1
33	OVAL HEAD SCREW	1
34	RONDELLE *WASHER	1
35	INLET REED DISK	1
36	OUTLET REED DISK	1
37	DIAPHRAGM GUIDE	1
38	LOCK NUT M4	1
39	JOINT ETANCHE *GASKET	1
40	COMPRESSOR COVER	1
41	HEX. FLANGED SCREW M6 X 55	3
42	ADJUSTER SCREW M6 X 25	1
43	REBUILD-CRANKCASE-CYLINDER PACKAGE	0
44	LOCTITE 243 10 ML	0
45	LOCTITE 648 10 ML	0
46	LOCTITE 518 50 ML	0
47	LOCTITE 767 ANTISEIZE LUBRICANT 8 OZ	0
48	DOW CORNING 111*DOW CORNING 111	0
49	LOCTITE 5910 300 ML	0
50	ENGINE GASKET SET	0
51	CYLINDER GASKET SET	0
