SEA-DOO XP DI, 6130/6131 XP DI, 6130/6131 01- Engine Support

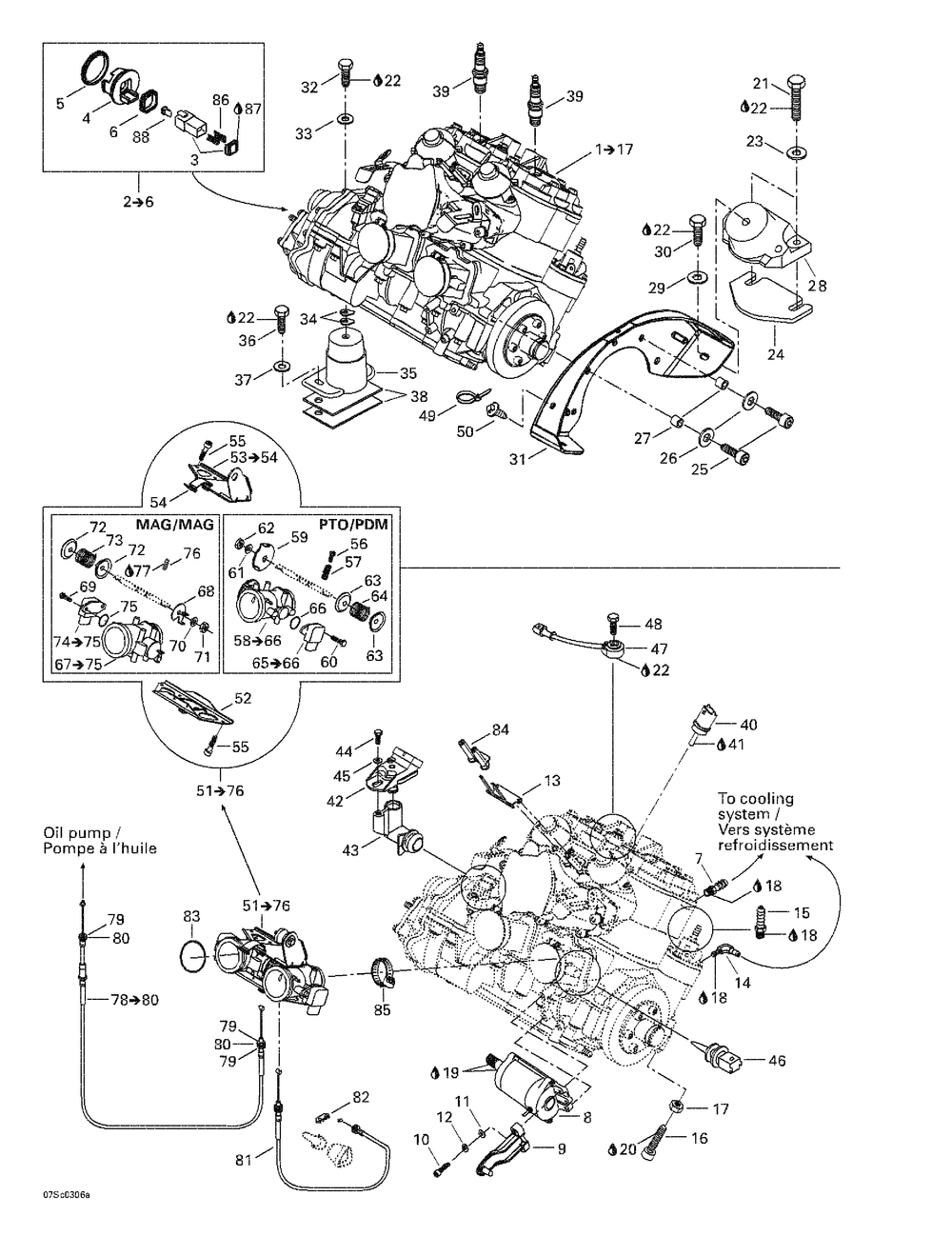

01- Engine Support
№ Наименование Примечание Кол-во
SHIM 0.4 MM (10.000 per pack) 3
SHIM 1.3 MM (5.000 per pack) 3
2 RACCORD *CONNECTOR Includes 48 to 52 1
3 BLOC 6 CIRC.FEM*HOUSING-TAB 1
4 RACCORD *CONNECTOR 1
5 JOINT ETANCHE *GASKET 1
6 JOINT ETANCHE *GASKET 1
7 MÂLE CONNECTOR 1
8 STARTER ASS Y BLACK Includes 1 - 11. 1
9 AIR SILENCER SUPPORT 1
10 SOCKET HEAD SCREW M6 X 35 (5.000 per pack) 2
11 Flat Washer M6, Stainless 2
12 Lock Washer Helical M6 2
13 GROUND PLATE 1
14 RACCORD COUDE90*FITTING-ELBOW 1
15 STRAIGHT FITTING No DPM 1
16 SOCKET SCREW M10 X 30 (5.000 per pack) 2
17 HEX. NUT M10 (5.000 per pack) 2
18 LOCTITE PIPE SEALANT 250 ML 0
19 SYNTHETIC GREASE 400 G 0
20 LOCTITE 271 10 ML 0
21 HEX. SCREW M8 X 40 (5.000 per pack) 4
22 LOCTITE 243 10 ML 0
23 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 4
24 SHIM 0.3 MM (5.000 per pack) 3
25 SOCKET HEAD SCREW M8 X 25 SCOTCH GRIP (5.000 per pack) 5
27 BUSHING 2
28 TAMPON ANCRAGE *MOUNT-RUBBER 2
29 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 2
30 HEX. SCREW M8 X 16 (5.000 per pack) 2
31 ENGINE SUPPORT BLACK 1
32 HEX. SCREW M8 X 20 (5.000 per pack) 1
34 SHIM 1.3 MM (5.000 per pack) 1
35 TAMPON ANCRAGE *MOUNT-RUBBER 1
39 BOUGIE ALLUMAGE*PLUG-SPARK ZFR4F11 (4.000 per pack) 2
40 TEMPERATURE SENSOR 1
41 LOCTITE 518 50 ML 0
42 PRESSURE SENSOR 1
43 VALVE ADAPTOR 1
44 HEX. PLASTITE SCREW M5.28 X 16 (5.000 per pack) 1
45 Flat Washer 1
46 AIR TEMPERATURE SENSOR 1
47 Датчик детонации 1
48 HEX. SCREW M8 X 30 Package XMR Engine 1000 (5.000 per pack) 1
49 Tie-Rap 180 mm 3
50 MOUNT DART (5.000 per pack) 3
51 HEX. NUT M5 Includes 1 to 27 (5.000 per pack) 1
52 LOWER SUPPORT 1
53 SUPPORT ASS Y Includes 3 to 4 1
54 LATCH BRACKET 1
55 SOCKET HEAD SCREW M5 X 10 (10.000 per pack) 11
56 ADJUSTER SCREW (5.000 per pack) 1
57 SPRING 2
58 PRIMARY THROTTLE BODY Includes 8 to 16 1
59 THROTTLE LEVER ASS Y 1
60 POTENTIOMETER SCREW M4 (2.000 per pack) 2
62 Hex. Nut M6 1
63 GUIDE SPRING 2
64 SPRING 1
65 POSITION SENSOR 1
66 O-RING 1
67 SECONDARY THROTTLE BODY Includes 17 to 25 1
68 LEVIER CAPTEUR *LEVER-PICK-UP 1
73 SPRING 1
76 IDLE SCREW 1
77 COUVERCLE *COVER 0
78 INJECTION CABLE Includes 12 to 14 1
79 HEX. NUT M6 (5.000 per pack) 3
81 THROTTLE CABLE 1
82 TAB LOCK (5.000 per pack) 1
83 O-RING (10.000 per pack) 2
84 INSULATOR 1
85 NORMA CLAMP (2.000 per pack) 2
86 MALE TERMINAL (10.000 per pack) 6
87 DIELECTRIC GREASE 150 G 0
88 CALE 6 CIRC.FEM*WEDGE-6 WAYS F (5.000 per pack) 1
