SEA-DOO GTX DI, 6118/6119 GTX DI, 6118/6119 07- Steering System

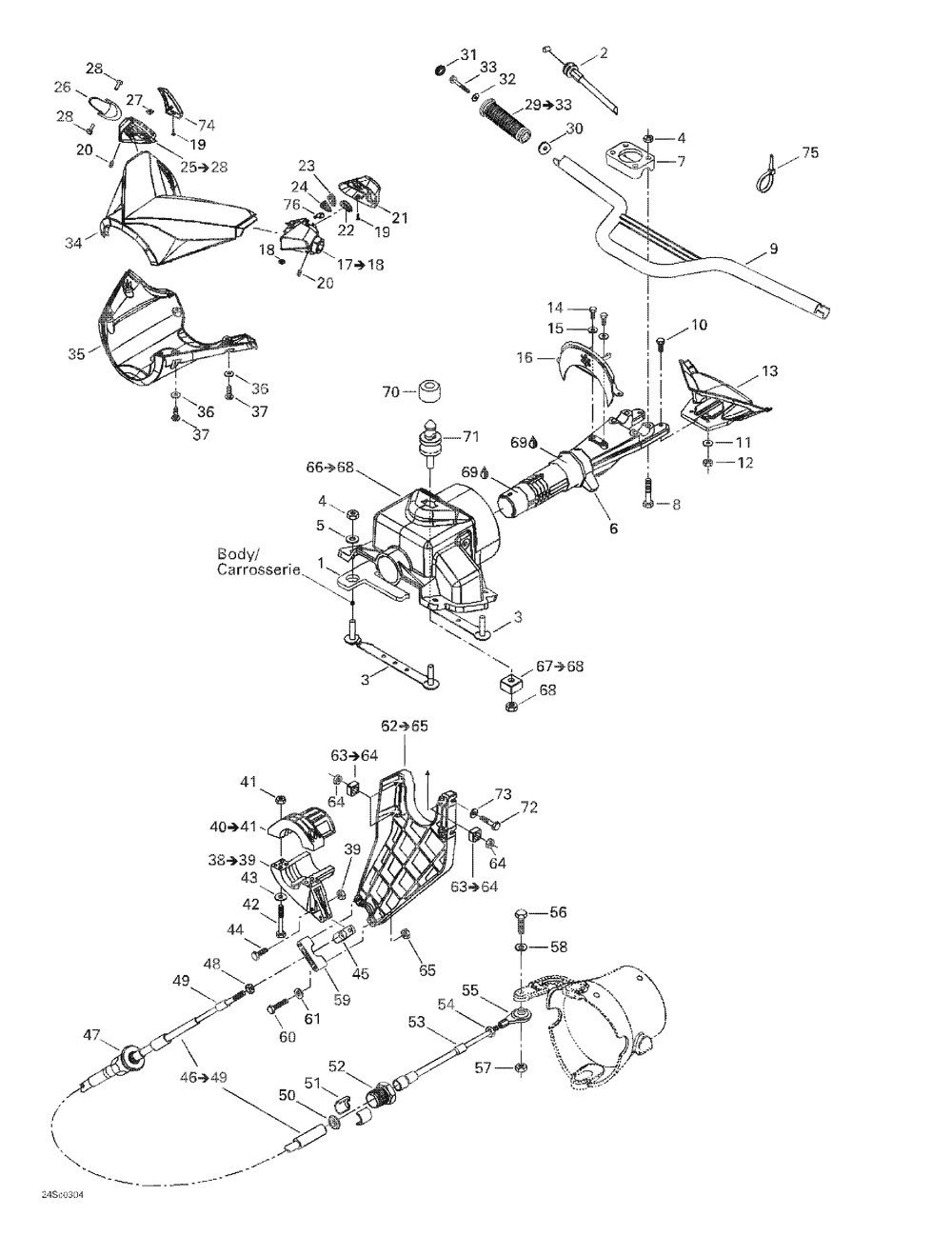

07- Steering System
№ Наименование Примечание Кол-во
1 JOINT ETANCHE *GASKET (2.000 per pack) 1
2 CABLE ACCELERAT*THROTTLE CABLE 1
3 STEERING SUPPORT 2
4 Hex. Elastic Nut M8 8
5 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 4
6 TIGE DIRECTION *STEM-STEERING 1
7 STEERING CLAMP 1
8 HEX. SCREW M8 X 50 (5.000 per pack) 4
9 HANDLE BAR 1
10 HEX. SCREW M6 X 30 (5.000 per pack) 2
11 Flat Washer M6, Stainless 2
12 Hex. Elastic Stop Nut M6 2
13 HANDLE PAD AUTOMNE RED (B-549) GTX 4-TEC 6111/6112. 1
14 HEX. FLANGED SCREW 1/4"-20 X 1/2" (5.000 per pack) 2
15 Flat Washer M6, Stainless 2
16 PLAQUE MAR.NOIR*PLATE-MAR.BLAC 1
17 HOUSING ASS Y Includes 13 to 14 1
18 SQUARE NUT M6 (10.000 per pack) 1
19 PHILLIPS SCREW M3.9 X 9.5 (5.000 per pack) 2
20 SOCKET HEAD SCREW M6 X 16 (5.000 per pack) 2
21 LH HOUSING COVER ASStahos_Y 1
22 STOP KNOB (5.000 per pack) 1
23 MODE KNOB 1
24 SET KNOB 1
26 THROTTLE HANDLE 1
28 GOUPILLE *PIN (5.000 per pack) 2
29 HANDLE GRIP KIT BLACK Includes 17 - 21. 1
31 CAP BLACK (2.000 per pack) 2
33 HEX. SCREW M6 X 30 SCOTCH GRIP (25.000 per pack) 2
34 UPPER STEERING COVER BLACK 1
35 LOWER STEERING COVER BLACK 1
36 FLAT WASHER M5 STAINLESS (10.000 per pack) 6
37 FLANGED HEX. SCREW K40 X 16 (5.000 per pack) 6
38 STEERING STEM ARM Includes 36 to 37 1
40 ARM THRUST Includes 38 to 39 1
42 HEX. SCREW M6 X 25 (5.000 per pack) 2
44 HEX. SCREW M6 X 30 (5.000 per pack) 1
45 BALL JOINT 1
46 STEERING CABLE ASS Y Includes 44 to 47 1
47 AJUSTMENT KNOB 1
48 HEX. NUT 1/4"-28 (10.000 per pack) 1
49 TERMINAL WIPER 1
50 RUBBER WASHER (10.000 per pack) 1
51 HALF RING 2
52 STEERING CABLE LOCK 1
55 BALL JOINT 1
56 HEX. SCREW M6 X 35 (5.000 per pack) 1
59 SUPPORT THRUST 1
60 HEX. SCREW M6 X 50 (5.000 per pack) 2
62 CABLE SUPPORT Includes 60 to 62 1
63 M6 Nut Housing Ass'y 3
64 Hex. Nut M6 3
66 STEERING SUPPORT Includes 63 to 65 1
67 NUT HOUSING ASStahos_Y Includes 64 to 65 1
68 HEX. NUT M10 (5.000 per pack) 1
69 SYNTHETIC GREASE 400 G 0
70 RUBBER PAD 1
71 LATCH STUD 1
72 Hex. Forming Screw M6 X 20 3
74 THROTTLE HOUSING COVER Red/Black 1
75 Tie-Rap 142 mm 1
76 U BRACKET 1
