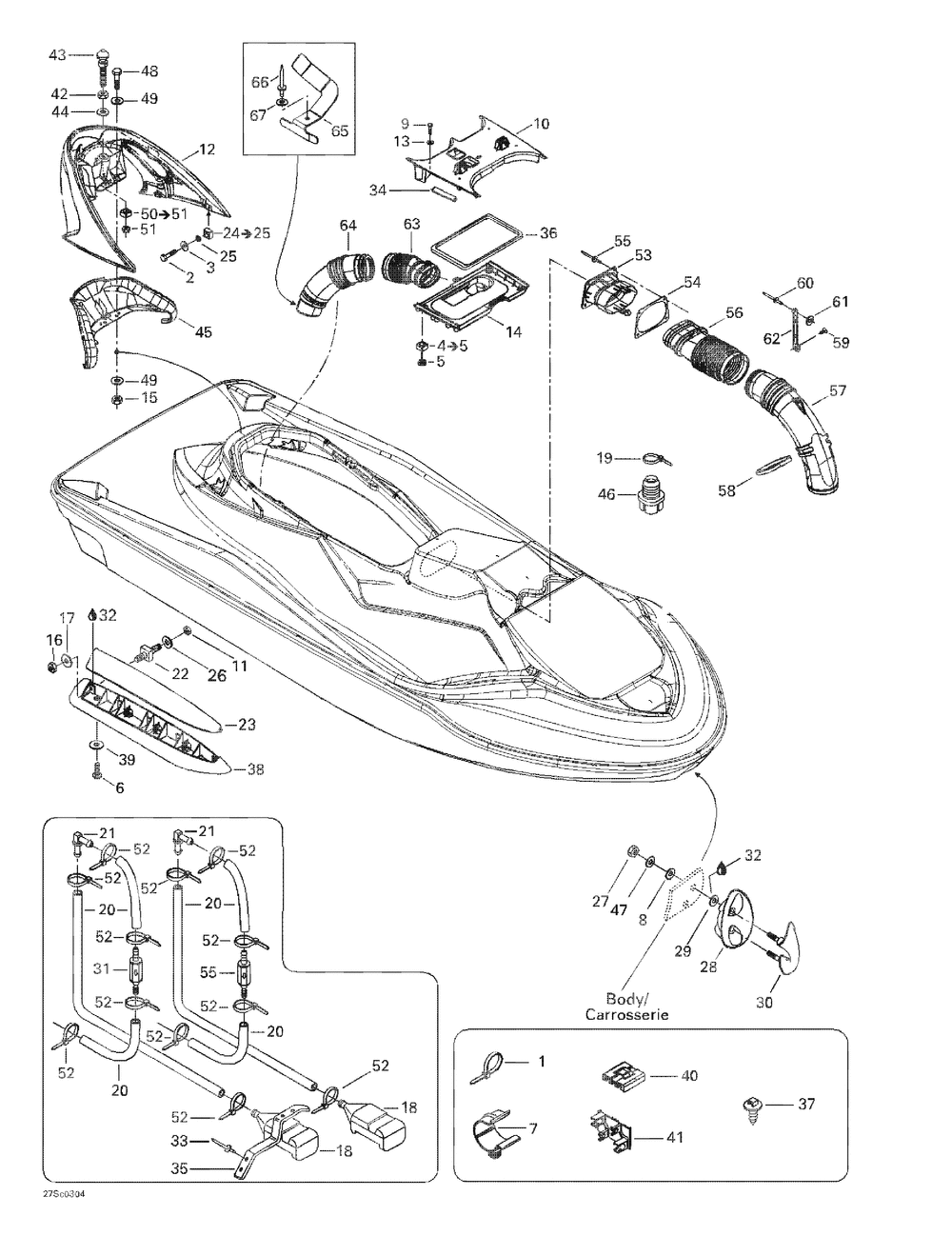

SEA-DOO GTX DI, 6118/6119 GTX DI, 6118/6119 09- Body Front View
09- Body Front View
№ Наименование Примечание Кол-во
Tie-Rap 142 mm 0
LH SPONSON 1
LH SPONSON COVER 1
Tie-Rap 180 mm 0
Tie-Rap 350 mm 0
1 Tie-Rap 94 mm 0
2 HEX. SCREW M6 X 25 (5.000 per pack) 4
3 Flat Washer M6, Stainless 4
4 Nut Housing Ass'y 4
5 Elastic Stop Nut M6, Brass 4
6 PHILLIPS SCREW 10-14 X 7/8tahos_ (5.000 per pack) 6
7 RETAINER 4
8 RUBBER WASHER (5.000 per pack) 2
9 HEX. SCREW M6 X 75 (5.000 per pack) 4
10 UPPER BRIDGE BLACK 1
11 Hex. Nut M6 10
12 GRAB HANDLE BLACK 1
14 FLEXIBLE HOSE 1
15 Hex. Elastic Nut M8 2
18 BAILER SCREEN 2
20 POLYURETHANE HOSE 8 MM (3.000 per pack) 0
21 ELBOW FITTING 90 2
22 THREADED INSERT 10
23 RH SPONSON COVER 1
24 Nut Housing Ass'y 4
25 Hex. Elastic Stop Nut M6 4
27 HEX. ELASTIC NUT M8 (5.000 per pack) 2
28 SHELL BLACK 1
29 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 2
30 AMARRE NOIRE *BOW-EYE/BLACK 1
31 CHECK VALVE 2
32 SILICONE SEALANT 51388 300 ML 0
33 AVDEL RIVET 3/16" (10.000 per pack) 4
34 JOINT ETANCHE *GASKET PAC = 1.2M 0
35 LH SPRING CLIP 2
36 JOINT ETANCHE *GASKET 0
37 MOUNT DART (5.000 per pack) 0
38 RH SPONSON 1
39 FLAT WASHER M5 STAINLESS (10.000 per pack) 6
40 TIE-RAP MOUNT (5.000 per pack) 0
41 CLAMP TIE 0
42 HEX. JAM NUT M10 (5.000 per pack) 1
43 SEAT STUD 1
44 FLAT WASHER 10 MM STAINLESS (5.000 per pack) 1
45 HANDLE COVER BLACK 1
46 GROMMET 1
47 FLAT WASHER 8 MM STAINLESS (5.000 per pack) 2
48 HEX. SCREW M8 X 45 (5.000 per pack) 2
50 NUT HOUSING ASS Y 1
51 HEX. ELASTIC NUT M10 (5.000 per pack) 1
53 FRONT AIR COLLECTOR ASS Y 1
54 FRONT AIR COLLECTOR ASS Y 1
56 FLEXIBLE HOSE 1
57 VENT HOSE 1
58 Neoprene Seal Meter 0
59 BLACK DART FAN (10.000 per pack) 1
60 POP RIVET 1/8tahos_ (10.000 per pack) 1
61 FLAT WASHER M3 STAINLESS (10.000 per pack) 1
61 FLAT WASHER (5.000 per pack) 1
62 HOSE SUPPORT 1
63 FLEXIBLE HOSE 1
64 BOYAU VENTILAT.*HOSE-VENT 1
65 SUPPORT BOYAU *SUPPORT-HOSE 1
66 POP RIVET 3/16" (5.000 per pack) 1
