SEA-DOO RX, 5579/5580/5581/5582 RX, 5579/5580/5581/5582 01- Engine Support And Muffler

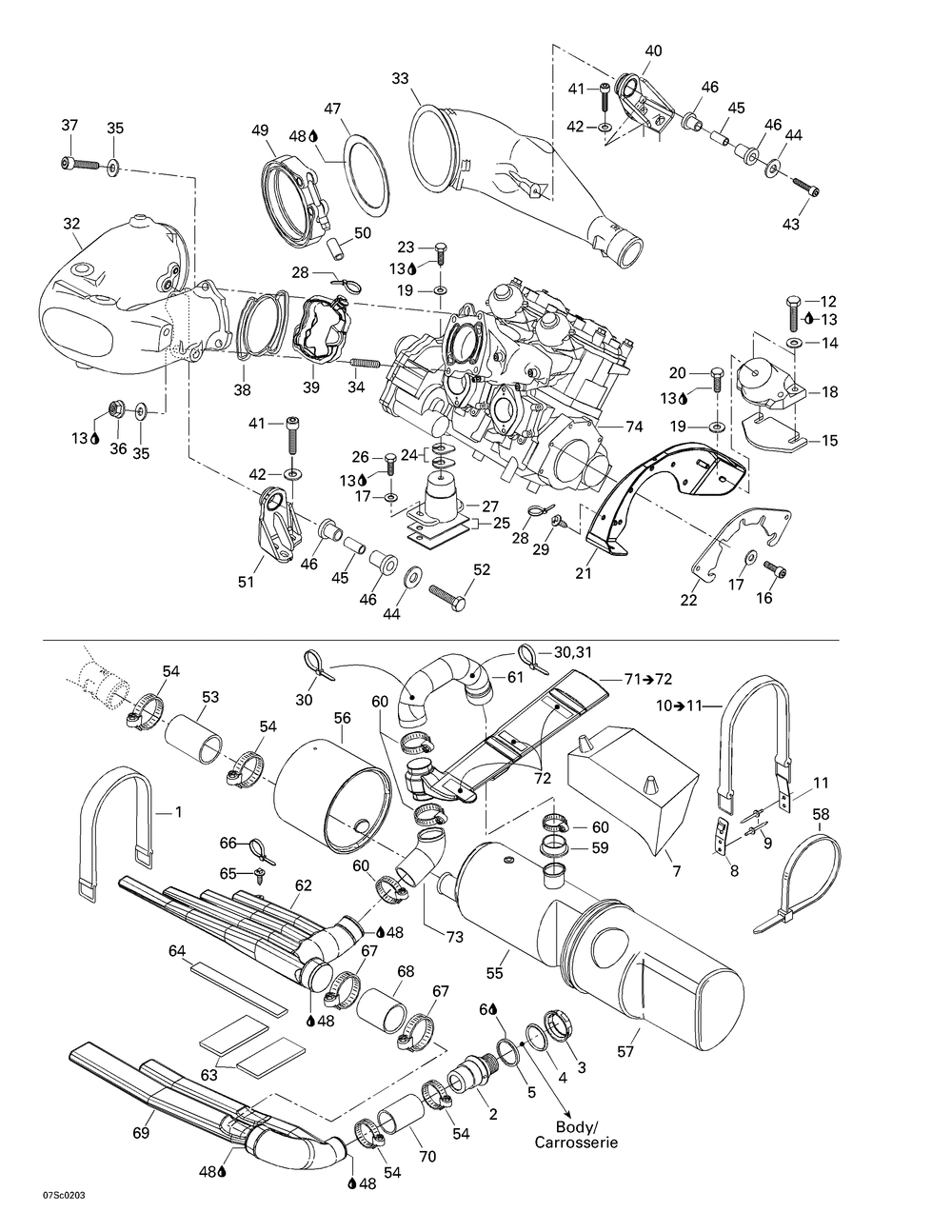

01- Engine Support And Muffler
№ Наименование Примечание Кол-во
SHIM 1.3 MM (5.000 per pack) 0
SHIM 1.3 MM (5.000 per pack) 0
1 RETAINER STRAP 1
2 EXHAUST HOSE OUTLET 1
3 NUT 72 MM 1
4 STABILIZING WASHER 1
5 JOINT ETANCHE *GASKET (5.000 per pack) 1
6 SILICONE SEALANT 51388 300 ML 0
7 APPUI RESONNA. *SUPPORT-RESONATOR 1
8 STRAP CLIP (10.000 per pack) 1
9 AVDEL RIVET 3/16" (10.000 per pack) 4
10 FUEL TANK STRAP Includes 48 - 49. 1
12 HEX. SCREW M8 X 40 (5.000 per pack) 4
13 LOCTITE 243 10 ML 0
14 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 4
15 SHIM 0.3 MM (5.000 per pack) 0
16 SOCKET HEAD SCREW M8 X 25 SCOTCH GRIP (5.000 per pack) 5
18 TAMPON ANCRAGE *MOUNT-RUBBER 2
19 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 3
20 HEX. SCREW M8 X 16 (5.000 per pack) 2
21 ENGINE SUPPORT 1
22 JOINT ETANCHE *GASKET 1
23 HEX. SCREW M8 X 20 (5.000 per pack) 1
24 SHIM 0.4 MM (10.000 per pack) 0
27 TAMPON ANCRAGE *MOUNT-RUBBER 1
28 Tie-Rap 142 mm 3
29 MOUNT DART (5.000 per pack) 2
30 Tie-Rap 350 mm 2
31 Tie-Rap 180 mm 1
32 TUYAU COLLECT. *PIPE-HEAD 1
33 EXHAUST CONE BLACK 1
34 STUD M10 X 5.1 X 55 SCOTCH GRIP 1
35 FLAT WASHER (10.000 per pack) 4
36 Hex. Flanged Nut M10 1
37 Socket Head Screw M10 X 35, Scotch Grip 3
38 EXHAUST GASKET 1
39 ENV.RECUPER. *ENV-PICK UP 1
40 SUPP.TUYAU *SUPP-PIPE 1
41 SOCKET HEAD SCREW M8 X 30 SCOTCH GRIP (5.000 per pack) 5
42 FLAT WASHER M8.4 5
43 Hex. Screw M10 X 40 Scotch Grip 1
44 FLAT WASHER 10 MM STAINLESS (5.000 per pack) 2
45 BUSHING 2
46 RUBBER BUSHING (4.000 per pack) 4
47 SEALING RING 1
48 SEALANT LOCTITE 80 ML 0
49 EXHAUST CLAMP 1
50 POLYURETHANE HOSE 8 MM (3.000 per pack) 0
51 PIPE SUPPORT 1
52 HEX. SCREW M10 X 40 SCOTCH GRIP (4.000 per pack) 1
53 BOYAU RACCORD *HOSE-EXHAUST 1
54 TRIDON GEAR CLAMP 4
55 SILENC.ECHAPP. *MUFFLER-NOIR 1
56 MUFFLER COVER FRONT 1
57 MUFFLER COVER REAR 1
58 TIE-RAP 838 MM 1
59 ADAP.BOYAU *ADAP-HOSE 1
60 TRIDON GEAR CLAMP 4
61 BOYAU ECHAPP. *HOSE-EXHAUST 1
62 LH UPPER RESONATOR 1
63 RUBBER PAD 2
64 TAMPON CAOUT. *PAD-RUBBER 1
67 TRIDON GEAR CLAMP 2
68 BOYAU RACCORD *HOSE-EXHAUST 1
69 RESONATOR EXTENSION 1
70 BOYAU RACCORD *HOSE-EXHAUST 1
71 RESONNATEUR ASS*RESONATOR-ASS Y Includes 71 - 72. 1
73 BOYAU RESONNA. *HOSE-RESONATOR 1
