SEA-DOO GTX 4-TEC, 5573/5574/5593/5594 GTX 4-TEC, 5573/5574/5593/5594 10- Electrical Harness

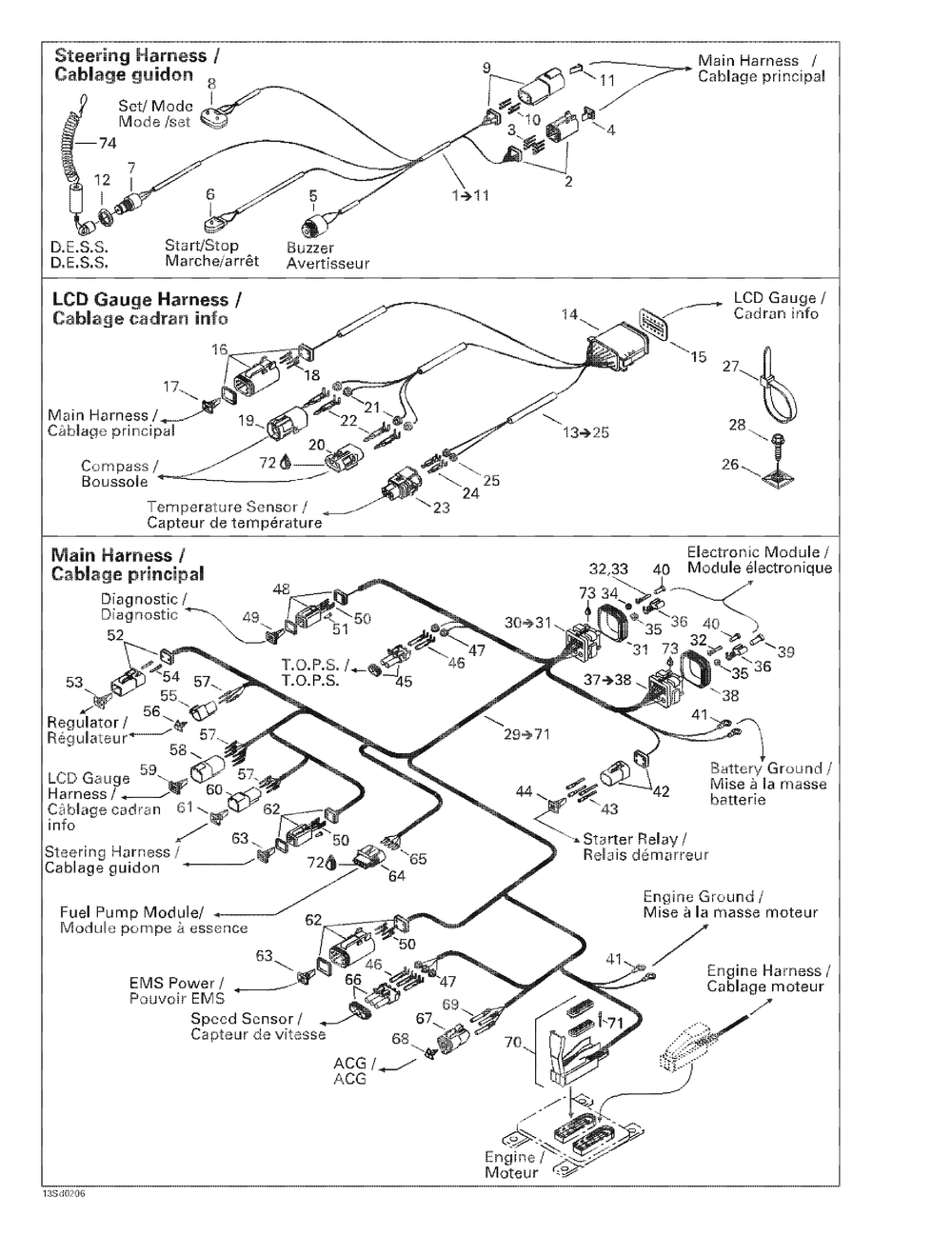

10- Electrical Harness
№ Наименование Примечание Кол-во
FEMALE TERMINAL 5
1 STEERING HARNESS ASStahos_Y Includes 1 to 11 1
2 MALE CONNECTOR 6 CIRCUITS 1
3 Female Terminal 6
4 MALE LOCK 6 CIRCUITS (5.000 per pack) 1
5 BUZZER 1
6 START/STOP SWITCH 1
7 SAFETY SWITCH 1
8 SET/MODE SWITCH 1
9 FEMALE HOUSING 4 CIRCUITS 1
10 MALE TERMINAL (10.000 per pack) 4
11 FEMALE WEDGE 4 CIRCUITS (10.000 per pack) 1
12 SAFETY NUT 1
13 CLUSTER HARNESS ASStahos_Y Includes 15 to 27 1
14 FEMALE TERMINAL HOUSING 12 CIRCUITS 1
15 Female Lock, 12 Circuits 1
16 MALE CONNECTOR 4 CIRCUITS 1
17 CALE 4 CIRC.MAL*WEDGE-4 WAYS M (10.000 per pack) 1
19 BLOC 4 CIRC.FEM*HOUSING-TAB GTI RFI LE 1
20 Female Housing, 2 Circuits 1
21 Wire Seal 6
22 Male Terminal 6
23 FEMALE TERMINAL HOUSING 2 CIRCUITS 1
24 FEMALE TERMINAL (10.000 per pack) 2
25 Wire Seal 2
26 TIE RAP MOUNT (5.000 per pack) 2
27 Tie-Rap 180 mm 2
28 HEX. FLANGED SCREW K40 X 13 (25.000 per pack) 2
29 CABLAGE *WIRING HARNESS Includes 29 - 71. 1
30 MALE CONNECTOR 26 CIRCUITS 1
31 WIRE SEAL 1
32 FEMALE TERMINAL (5.000 per pack) 33
33 FEMALE TERMINAL (5.000 per pack) 2
34 JOINT DE FIL *SEAL-WIRE (5.000 per pack) 2
35 WIRE SEAL (5.000 per pack) 3
36 FEMALE TERMINAL (5.000 per pack) 3
37 MALE TERMINAL HOUSING 26 CIRCUITS 1
39 BOUCHON *PLUG 1
40 SEALING CAP (10.000 per pack) 13
41 OPEN BARREL (10.000 per pack) 4
42 FEMALE TERMINAL HOUSING 4 CIRCUITS 1
43 FEMALE TERMINAL 2
44 CALE 4 CIRC.MAL*WEDGE-4 WAYS M 1
45 MALE CONNECTOR 2 CIRCUITS 1
46 FEMALE TERMINAL (5.000 per pack) 5
51 Sealing Cap 1
52 FEMALE TERMINAL HOUSING 2 CIRCUITS 1
53 CALE 2 CIRC.MAL*WEDGE-2 WAYS M (5.000 per pack) 1
54 FEMALE TERMINAL (5.000 per pack) 2
55 MALE HOUSING 1
56 Male Lock, 3 Circuits 1
60 BLOC 6 CIRC.FEM*HOUSING-TAB 1
61 CALE 6 CIRC.FEM*WEDGE-6 WAYS F (5.000 per pack) 1
64 MALE CONNECTOR 4 CIRCUITS 1
65 FEMALE TERMINAL (5.000 per pack) 4
66 MALE HOUSING 3 CIRCUITS 1
67 FEMALE HOUSING 3 CIRCUITS 1
68 FEMALE LOCK 1
70 MALE HOUSING 41 CIRCUITS 1
71 FEMALE TERMINAL (5.000 per pack) 11
72 DIELECTRIC GREASE 150 G 0
73 *(ORMD) *DEOXIT AEROSOL * 0
74 SAFETY LANYARD ANTITHEFT 1
