SEA-DOO GTX RFI, 5566/5565 GTX RFI, 5566/5565 10- Electronic Module And Electrical Accessories

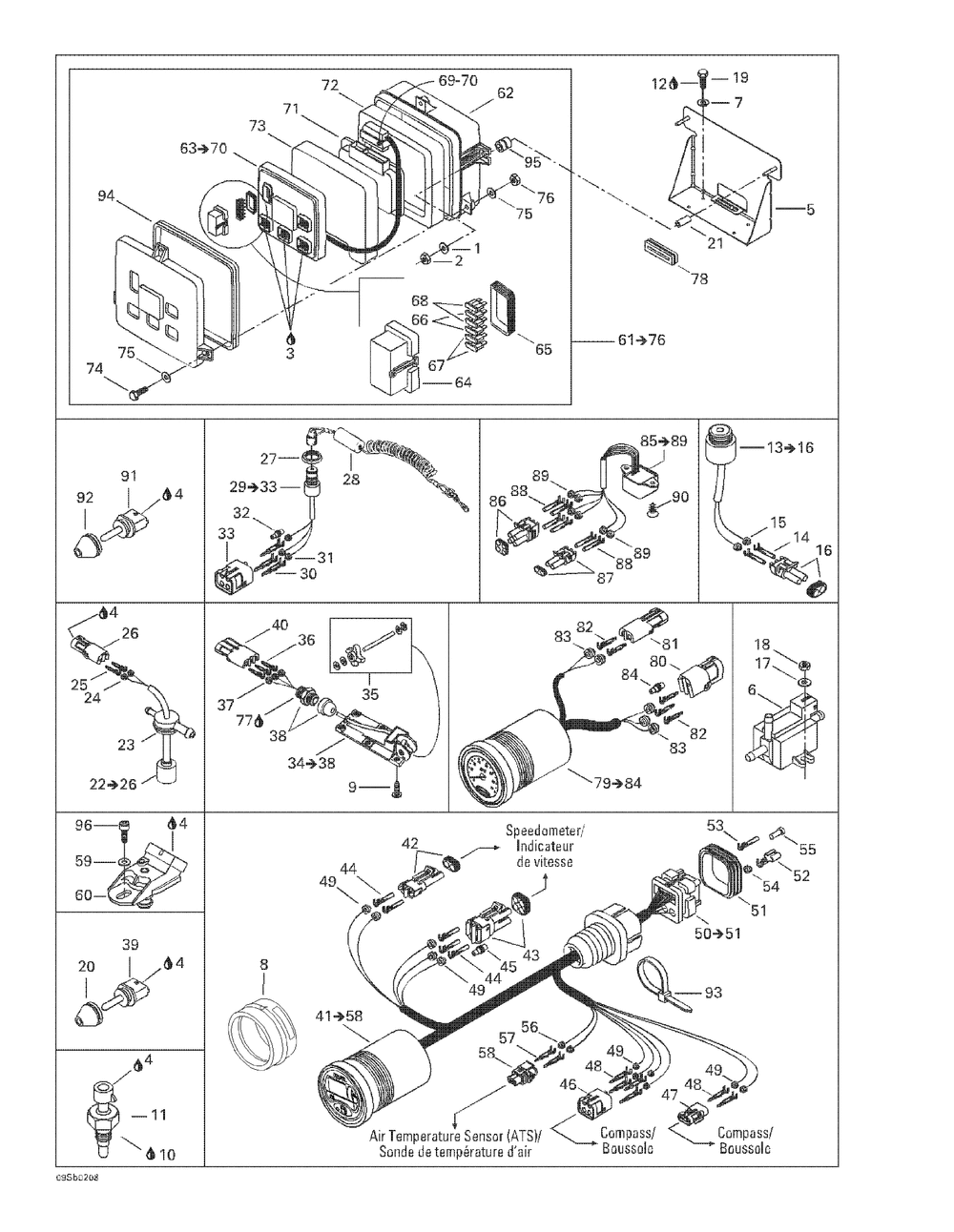

10- Electronic Module And Electrical Accessories
№ Наименование Примечание Кол-во
1 Flat Washer M6, Stainless 2
2 Hex. Elastic Stop Nut M6 2
3 *(ORMD) *DEOXIT AEROSOL * 0
4 DIELECTRIC GREASE 150 G 0
5 SUPP.BOITE ASS.*SUPP-BOX ASSY. 1
6 Клапан управления впускаемого воздуха 1
7 HELICAL LOCK WASHER M5 (5.000 per pack) 4
8 GAUGE SUPPORT DS 650 Baja. 2
9 PHILLIPS SCREW M5 X 12 (10.000 per pack) 6
10 LOCTITE 518 50 ML 0
11 TEMPERATURE SENSOR 1
12 LOCTITE 271 10 ML 0
13 BUZZER Includes 23 - 26. 1
14 FEMALE TERMINAL (5.000 per pack) 2
15 Wire Seal 2
16 MALE CONNECTOR 2 CIRCUITS 1
17 FLAT WASHER M5 STAINLESS (10.000 per pack) 2
18 HEX. ELASTIC NUT M5 (5.000 per pack) 2
19 HEX SCREW 10 14 X 7/8" (5.000 per pack) 4
20 INSULATOR 1
21 SPACER (2.000 per pack) 2
22 OIL LEVER SENSOR ASS Y Includes 13 to 17 1
23 GROMMET 2
25 Male Terminal 2
26 Female Housing, 2 Circuits 1
27 SAFETY NUT 1
28 SAFETY LANYARD ANTITHEFT 1
29 WIRE SEAL Includes 15 - 19. (5.000 per pack) 1
32 WIRE SEAL (5.000 per pack) 1
33 BLOC 4 CIRC.FEM*HOUSING-TAB GTI RFI LE 1
34 WIRE SEAL Includes 63 - 67. (10.000 per pack) 1
35 PADDLE WHEEL KIT GTI RFI LE 1
38 ELECTRIC CONNECTION GTI RFI LE 1
39 AIR TEMPERATURE SENSOR 1
40 FEMALE TERMINAL HOUSING 3 CIRCUITS (5.000 per pack) 1
41 CADRAN INFO *GAUGE LCD Includes 41 - 58. 1
43 MALE CONNECTOR 4 CIRCUITS GTI RFI LE 1
49 Wire Seal (20 Gauge) (Purple) (Packard) 11
50 MALE CONNECTOR 26 CIRCUITS 1
51 WIRE SEAL 1
52 FEMALE TERMINAL (5.000 per pack) 3
53 FEMALE TERMINAL (5.000 per pack) 13
54 WIRE SEAL (5.000 per pack) 3
55 SEALING CAP (10.000 per pack) 10
56 Wire Seal 2
57 FEMALE TERMINAL (10.000 per pack) 2
58 MALE HOUSING 2 CIRCUITS 1
59 Flat Washer M6, Stainless 1
60 PRESSURE SENSOR 1
62 ELECTRONIC BOX BASE 1
63 ELECTRONIC MODULE Includes 63 - 70. 1
64 FUSE COVER 1
65 COVER SEAL 1
66 FUSE 5 AMPERES (5.000 per pack) 2
67 FUSE 10 AMPERES (5.000 per pack) 2
68 FUSE 15 AMPERES (5.000 per pack) 2
71 MODULE ELECTRON*MODULE-ELECT. 1
72 LOWER FOAM 1
73 TOP FOAM 1
74 HEX. SCREW M6 X 30 (5.000 per pack) 3
77 LOCTITE PIPE SEALANT 250 ML 0
78 INSULATOR 1
79 CADRAN VITESSE *SPEEDOMETER Includes 79 - 84. 1
85 COMPASS GTI RFI LE Includes 38 to 42 1
90 DART BLACK (5.000 per pack) 2
93 Tie-Rap 180 mm 1
94 JOINT ETANCHE *GASKET 1
95 UPPER INSULATOR 2
96 SOCKET HEAD SCREW M6 X 12 SCOTCH GRIP (10.000 per pack) 1
