SEA-DOO RX DI (LE), 5583/5584/5585 RX DI (LE), 5583/5584/5585 10- Rear Electrical Box

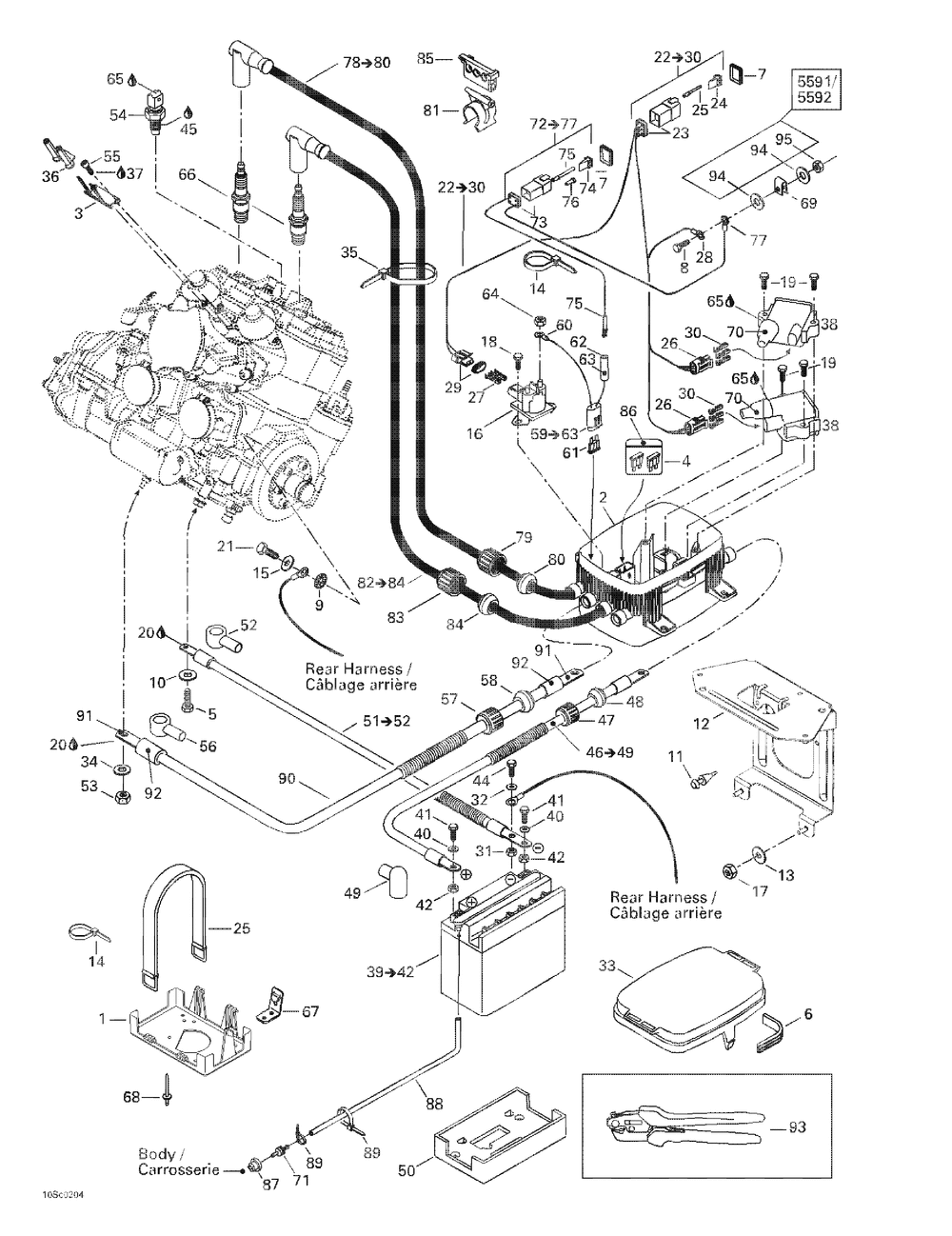

10- Rear Electrical Box
№ Наименование Примечание Кол-во
HEX. SCREW M6 X 16 (5.000 per pack) 1
FUSE 15 AMPERES (5.000 per pack) 1
BASE BOITE ELEC*BASE-BOX ELECT 1
1 SUPPORT BATT. *SUPPORT-BATT. 1
2 ELECTRIC BOX BASE 1
3 GROUND PLATE 1
4 FUSE 25 AMPERES (5.000 per pack) 1
5 HEX. SCREW M10 X 20 SCOTCH GRIP (5.000 per pack) 1
6 JOINT ETANCHE *GASKET 1
7 JOINT ETANCHE *GASKET 2
8 Hex. Screw M6 X 16, Scotch Grip 1
9 EXTERNAL SERRATED LOCK WASHER 6 MM (5.000 per pack) 1
10 FLAT WASHER 10 MM STAINLESS (5.000 per pack) 1
11 Rubber Bumper 2
12 SUPPORT BOITE *SUPPORT-BOX 1
13 Flat Washer M6, Stainless 2
14 Tie-Rap 142 mm 4
15 Flat Washer M6, Stainless 1
16 STARTER RELAY Skandic 600. 1
17 Hex. Elastic Stop Nut M6 2
18 HEX. FLANGED SCREW M6 X 10 (5.000 per pack) 2
19 SCREW-TAPP.HEX.ISO.1479F (10.000 per pack) 4
20 DIELECTRIC GREASE 150 G 0
21 HEX. SCREW M6 X 12 SCOTCH GRIP (25.000 per pack) 1
22 CABLAGE BOITE *HARNESS-BOX Includes 32 to 40 1
23 BLOC 6 CIRC.FEM*HOUSING-TAB 1
24 CALE 6 CIRC.FEM*WEDGE-6 WAYS F (5.000 per pack) 1
25 RETAINER STRAP 6
26 MALE TERMINAL HOUSING 3 CIRCUITS 2
27 FEMALE TERMINAL (5.000 per pack) 2
28 OPEN BARREL (10.000 per pack) 1
29 MALE CONNECTOR 2 CIRCUITS (5.000 per pack) 1
30 FEMALE TERMINAL (10.000 per pack) 6
33 ELECTRIC BOX COVER 1
36 INSULATOR 1
37 LOCTITE 243 10 ML 0
38 IGNITION COIL 2
39 BATTERIE YB16CLB *BATTERY (DRY) Includes Items 1 to 4 1
40 FLAT WASHER 6 MM (5.000 per pack) 2
41 HEX. SCREW M6 X 16 (10.000 per pack) 2
42 HEX. NUT M6 (10.000 per pack) 2
43 RETAINER STRAP 1
44 HEX. CAP SCREW M6 X 12 (5.000 per pack) 1
45 LOCTITE 518 50 ML 0
46 CABLE ROUGE *CABLE-RED Includes 62 - 65. 1
47 ELECTRIC WIRE CAP (5.000 per pack) 1
48 PASSE-FILS NOIR*GROMMET-BLACK 1
49 PROTECTION CAP (5.000 per pack) 1
50 LOWER BATTERY PAD 1
51 CABLE MASSE ASS*CABLE-GROUND Includes 3435 1
54 TEMPERATURE SENSOR 1
55 SOCKET HEAD SCREW M6 X 25 (10.000 per pack) 4
59 FUSE HARNESS 30 AMPERES Includes 59 - 63. 1
61 FUSE 30 AMPERES (5.000 per pack) 1
62 FEMALE TERMINAL 1
63 DEUTSCH JOINT HOUSING 1
66 BOUGIE ALLUMAGE*PLUG-SPARK ZFR4F11 (4.000 per pack) 2
67 STRAP CLIP 1
68 AVDEL RIVET 3/16" (10.000 per pack) 4
70 PROTECTOR CAP 2
71 CHECK VALVE 1
72 ELECTRIC BOX HARNESS ASS Y Includes 72 - 77. 1
73 BLOC 4 CIRC.FEM*HOUSING-TAB 1
74 CALE 4 CIRC.MAL*WEDGE-4 WAYS M 1
75 MALE TERMINAL (3.000 per pack) 3
76 Sealing Cap 2
78 COIL CABLE 735 MM Includes 46 to 48 1
80 PASSE-FILS NOIR*GROMMET-BLACK (5.000 per pack) 1
81 COLLAR SUPPORT 1
82 COIL CABLE 560 MM Includes 49 to 51 1
85 WIRE SUPPORT 1
87 GROMMET (5.000 per pack) 1
88 HOSE 6 MM (3.000 per pack) 0
89 Tie-Rap 94 mm 2
90 CABLE ROUGE *CABLE-RED Includes 3435758990 1
94 Flat Washer 6 mm 2
