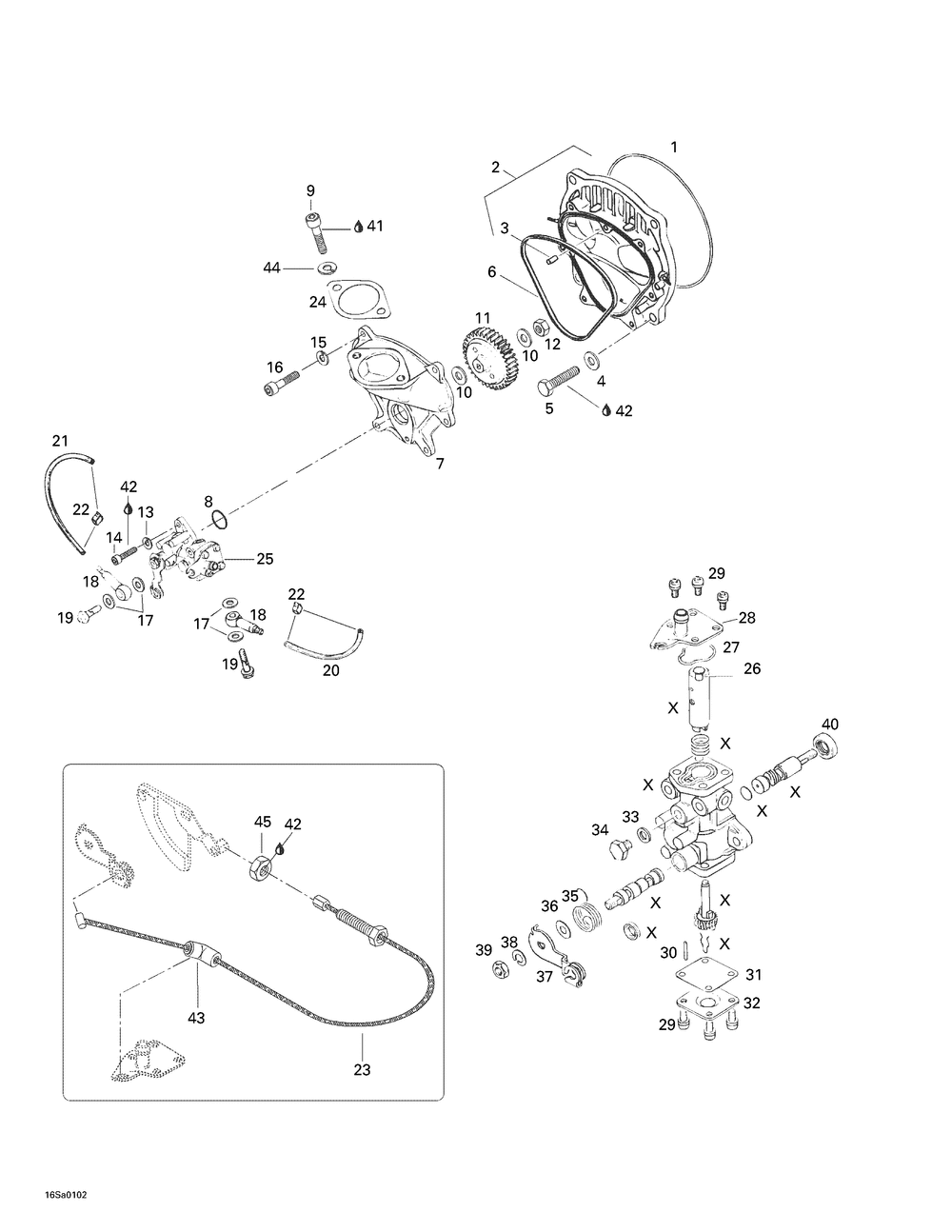

02- Oil Injection System Oil Pump Rotary Valve

SEA-DOO GTI, 5522/5523 GTI, 5522/5523 02- Oil Injection System Oil Pump Rotary Valve

№	Наименование	Кол-во
1	O-RING	1
2	COUVERCLE ROTAR*COVER-ROTARY Includes 2 - 3.	1
3	Drive Pin 5 X 10	1
4	WASHER 8.4 MM (10.000 per pack)	4
5	HEX. SCREW M8 X 20 (10.000 per pack)	4
6	RUBBER RING (5.000 per pack)	1
7	OIL PUMP FLANGE BLACK	1
8	O-RING (5.000 per pack)	1
10	FLAT WASHER (10.000 per pack)	2
11	OIL PUMP GEAR 41 TEETH	1
12	Elastic Stop Nut M6	1
13	RONDELLE FREIN *WASHER-LOCK (5.000 per pack)	2
14	SOCKET HEAD SCREW M5 X 16 (5.000 per pack)	2
15	RONDELLE FREIN *WASHER-LOCK (10.000 per pack)	6
16	SOCKET HEAD SCREW M6 X 20 (5.000 per pack)	6
17	Sealing Washer	4
18	VALVE ASStahos_Y	2
19	BANJO BOLT M6 X 16 (10.000 per pack)	2
20	OIL HOSE (5.000 per pack)	0
22	CLAMP 3.5 MM (10.000 per pack)	4
23	INJECTION CABLE	1
24	JOINT ETANCHE *GASKET (5.000 per pack)	1
25	OIL PUMP ASS Y Includes 25 - 40.	1
26	RETAINER	1
27	O-RING	1
28	PUMP UPPER PLATE	1
29	SCREW M4 X 8 WITH LOCK WASHER Skandic Wide Track. Skandic Super Wide Track. (10.000 per pack)	8
31	JOINT ETANCHE *GASKET Skandic Wide Track. Skandic Super Wide Track.	1
32	PLATEAU POMPE *PLATE-PUMP OIL	1
33	RONDELLE ETANCH*WASHER-SEAL Tundra. (5.000 per pack)	1
34	HEX. SCREW M6 X 8	1
36	RONDELLE *WASHER	1
37	LEVER CONTROL	1
41	SYNTHETIC GREASE 400 G	0
42	LOCTITE 243 10 ML	0
43	CABLE GUIDE (5.000 per pack)	1
44	FLAT WASHER 8 MM STAINLESS (10.000 per pack)	2
45	HEX. NUT M6 (5.000 per pack)	2
46	SET-GASKET	0
