SEA-DOO GTX RFI, 5524/5525/5553/5555 GTX RFI, 5524/5525/5553/5555 10- Electrical Box And Battery

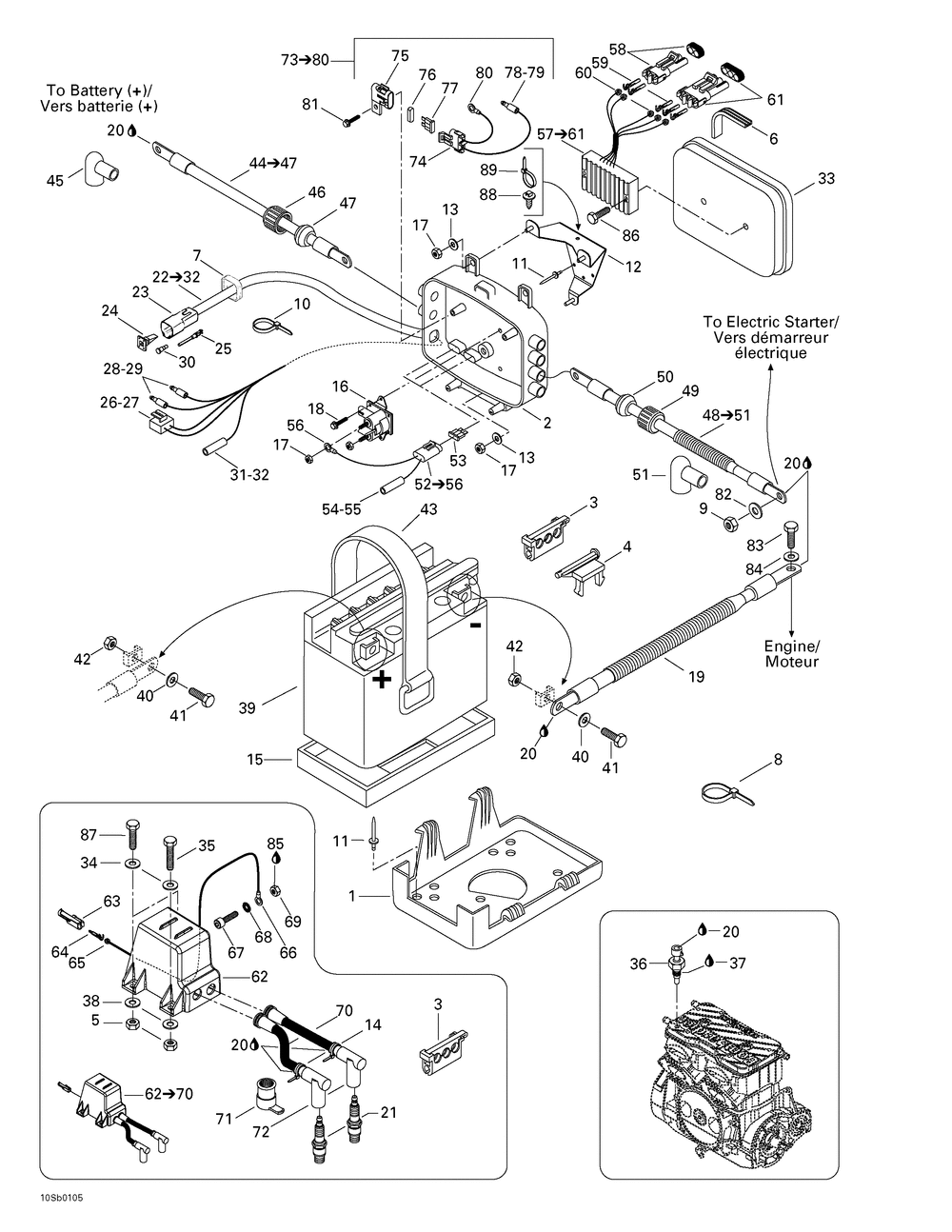

10- Electrical Box And Battery
№ Наименование Примечание Кол-во
SPARK PLUG WIRE 1
1 SUPPORT BATT. *SUPPORT-BATT. 1
2 ELECTRICAL BOX BASE 1
3 3 WIRE SUPPORT 2
4 COLLAR SUPPORT 1
5 Hex. Elastic Stop Nut M6 3
6 JOINT ETANCHE *GASKET 1
7 JOINT ETANCHE *GASKET 1
8 Tie-Rap 142 mm 0
10 Tie-Rap 94 mm 1
11 AVDEL RIVET 3/16" (10.000 per pack) 7
12 ELECTRIC BOX SUPPORT 1
13 Flat Washer M6, Stainless 3
15 LOWER BATTERY PAD 1
16 STARTER RELAY 1
18 HEX. FLANGED SCREW M6 X 10 (5.000 per pack) 2
19 CABLE MASSE ASS*CABLE-GROUND Includes 9192 1
20 DIELECTRIC GREASE 150 G 0
21 SPARK PLUG NGK BR8-ES (10.000 per pack) 2
22 CABLAGE BOITE *HARNESS-BOX Includes 22 - 32. 1
23 BLOC 6 CIRC.FEM*HOUSING-TAB 1
24 CALE 6 CIRC.FEM*WEDGE-6 WAYS F (5.000 per pack) 1
25 MALE TERMINAL (10.000 per pack) 5
26 MALE CONNECTOR 2 CIRCUITS (5.000 per pack) 1
27 FEMALE TERMINAL (5.000 per pack) 2
28 Male Terminal 2
29 Insulated Sheath 2
30 Sealing Cap 1
31 FEMALE TERMINAL (5.000 per pack) 1
32 Insulated Sheath 1
33 COUVERCLE BOITE*COVER-BOX ELEC 1
34 Flat Washer M6, Stainless 3
35 HEX. SCREW M6 X 40 (10.000 per pack) 1
36 TEMPERATURE SENSOR 1
37 LOCTITE 518 50 ML 0
39 BATTERIE YB16CLB *BATTERY (DRY) 1
40 FLAT WASHER 6 MM (5.000 per pack) 2
41 HEX. SCREW M6 X 16 (10.000 per pack) 2
42 HEX. NUT M6 (10.000 per pack) 2
43 RETAINER STRAP 2
44 CABLE ROUGE *CABLE-RED Includes 44 - 47. 1
45 PROTECTION CAP (5.000 per pack) 1
46 ELECTRIC WIRE CAP (5.000 per pack) 1
47 PASSE-FILS NOIR*GROMMET-BLACK 1
48 CABLE ROUGE DEM*CABLE RED. STARTER Includes 48 - 51. 1
52 CABLAGE FUSIBLE*HARNESS-FUSE Includes 52 - 56. 2
53 FUSE 20 AMPERES (5.000 per pack) 2
56 RING TERMINAL (5.000 per pack) 2
57 RECTIFIER ASStahos_Y Includes 28 - 32. 1
58 MALE CONNECTOR 2 CIRCUITS 1
59 FEMALE TERMINAL 5
60 Wire Seal 5
61 MALE HOUSING 3 CIRCUITS 1
62 IGNITION COIL ASStahos_Y Includes 32 to 44 1
62 IGNITION COIL 1
63 BLOC 1 CIRC.FEM*HOUSING-TAB 1
64 Male Terminal 1
66 OPEN BARREL (10.000 per pack) 1
67 SOCKET HEAD SCREW M6 X 20 (10.000 per pack) 1
68 EXTERNAL TOOTH LOCK WASHER (50.000 per pack) 1
69 Elastic Stop Nut M6 1
70 SPARK PLUG WIRE 270 MM 1
71 PROTECTOR CAP 2
72 SPARK PLUG CAP 2
73 CABLAGE FUSIBLE*HARNESS-FUSE Includes 73 - 80. 1
74 FUSE HOLDER (2.000 per pack) 1
75 FUSE HOLDER CAP (5.000 per pack) 1
76 CUSHION (5.000 per pack) 1
77 FUSE 1 AMPERE (2.000 per pack) 1
81 PHILLIPS SCREW 10-14 X 7/8tahos_ (5.000 per pack) 1
83 HEX. SCREW M8 X 25 SCOTCH GRIP (10.000 per pack) 1
84 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 1
85 LOCTITE 271 10 ML 0
86 HEX. FORMING SCREW M6 X 16 (5.000 per pack) 2
87 HEX. SCREW M6 X 30 (5.000 per pack) 2
88 MOUNT DART (5.000 per pack) 1
89 Tie-Rap 350 mm 1
