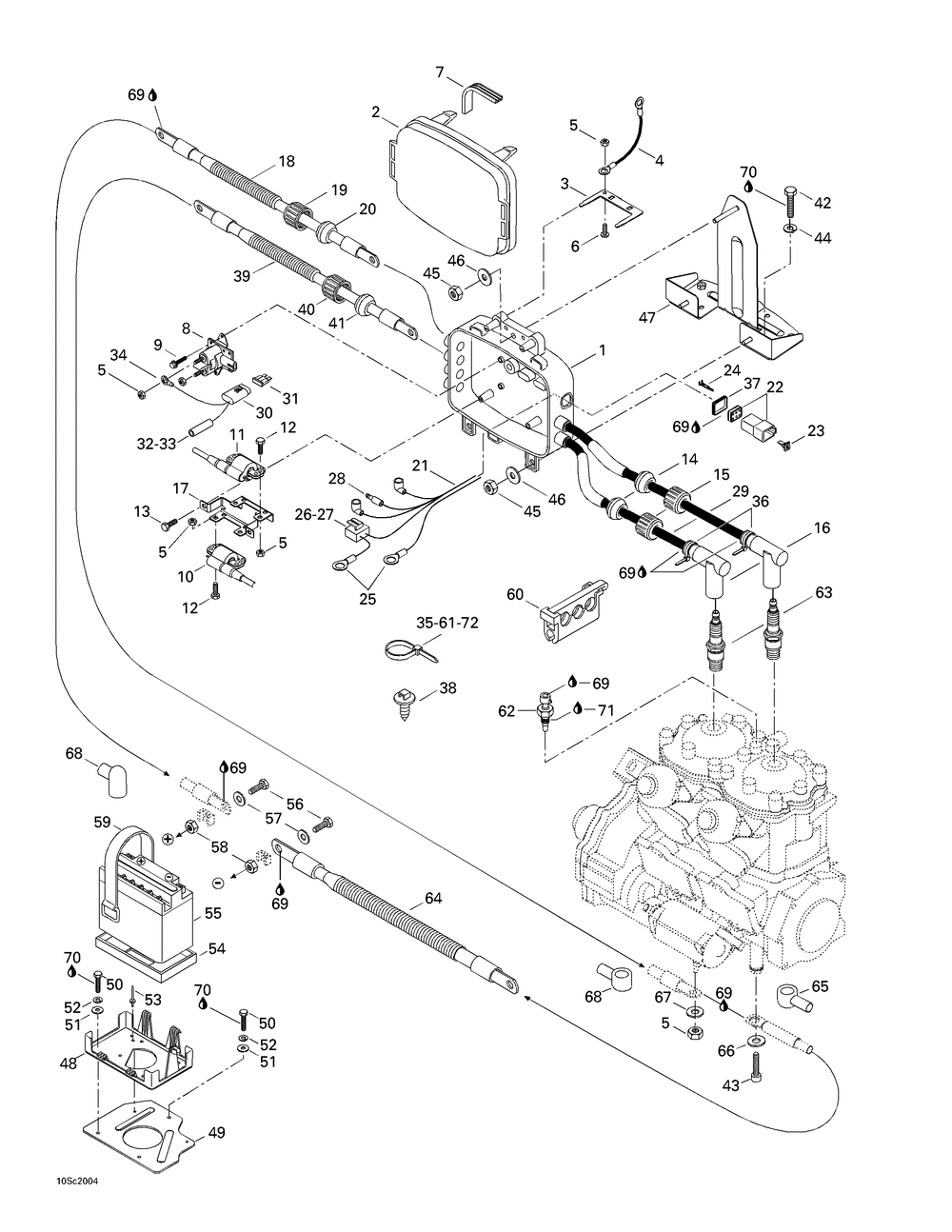

10- Electrical Box And Battery

Корзина пуста
Наименование Примечание Кол-во
1 BASE BOITE ELEC*BASE-BOX ELECT 1
2 ELECTRIC BOX COVER 1
4 FIL DE MASSE *WIRE-GROUND 1
5 Hex. Elastic Stop Nut M6 8
6 SOCKET SCREW BUTTON HEAD M6 X 10 (4.000 per pack) 1
7 JOINT ETANCHE *GASKET 1
8 STARTER RELAY 1
9 HEX. FLANGED SCREW M6 X 10 (5.000 per pack) 2
10 BOBINE ALLUMAGE*COIL-IGNITION 1
11 COIL-IGNITION 1
12 Hex. Forming Screw M6 X 20 4
14 PASSE-FILS NOIR*GROMMET-BLACK (5.000 per pack) 2
15 ELECTRIC WIRE CAP (5.000 per pack) 2
16 SPARK PLUG CAP 2
17 SUPPORT BOBINE *SUPPORT-COIL 1
18 CABLE ROUGE *CABLE-RED Includes 4041687273 1
20 PASSE-FILS NOIR*GROMMET-BLACK 1
21 ELECTRIC BOX HARNESS Includes 24 - 31. 1
22 BLOC 6 CIRC.FEM*HOUSING-TAB 1
23 CALE 6 CIRC.FEM*WEDGE-6 WAYS F (5.000 per pack) 1
24 MALE TERMINAL (10.000 per pack) 6
25 RING TERMINAL (5.000 per pack) 2
26 MALE CONNECTOR 2 CIRCUITS (5.000 per pack) 1
27 FEMALE TERMINAL (5.000 per pack) 2
28 Male Terminal 1
29 SPARK PLUG WIRE 0
30 CABLAGE FUSIBLE*HARNESS-FUSE Includes 61 - 65. 1
31 FUSE 15 AMPERES (5.000 per pack) 1
32 FEMALE TERMINAL (5.000 per pack) 1
33 Insulated Sheath 1
35 Tie-Rap 94 mm 1
36 Tie-Rap 142 mm 2
37 JOINT ETANCHE *GASKET 1
38 MOUNT DART (5.000 per pack) 0
39 CABLE ROUGE *CABLE-RED Includes 3435758990 1
42 HEX SCREW 10 14 X 7/8" (5.000 per pack) 4
43 HEX. SCREW M10 X 20 SCOTCH GRIP (5.000 per pack) 1
44 HELICAL LOCK WASHER M5 (5.000 per pack) 4
46 Flat Washer M6, Stainless 3
47 SUPP.BOITE ASS.*SUPP-BOX ASSY. 1
48 SUPPORT BATT. *SUPPORT-BATT. 1
49 SUPPORT PLATE 1
51 Flat Washer 5 mm, Stainless 3
53 AVDEL RIVET 3/16" (10.000 per pack) 2
54 LOWER BATTERY PAD 1
55 BATTERIE YB16CLB *BATTERY (DRY) 1
56 HEX. SCREW M6 X 16 (10.000 per pack) 2
57 FLAT WASHER 6 MM (5.000 per pack) 2
58 HEX. NUT M6 (10.000 per pack) 2
59 RETAINER STRAP 2
60 3 WIRE SUPPORT 1
61 Tie-Rap 350 mm 0
62 TEMPERATURE SENSOR 1
63 SPARK PLUG NGK BR8-ES (10.000 per pack) 2
64 CABLE MASSE ASS*CABLE-GROUND Includes 657273 1
66 FLAT WASHER 10 MM STAINLESS (5.000 per pack) 1
67 Flat Washer M6, Stainless 1
68 PROTECTION CAP (5.000 per pack) 2
69 DIELECTRIC GREASE 150 G 0
70 LOCTITE 271 10 ML 0
71 LOCTITE 518 50 ML 0
72 Tie-Rap 180 mm 0
