SEA-DOO GSX RFI, 5645/5654 GSX RFI, 5645/5654 10- Electronic Module And Electrical Accessories

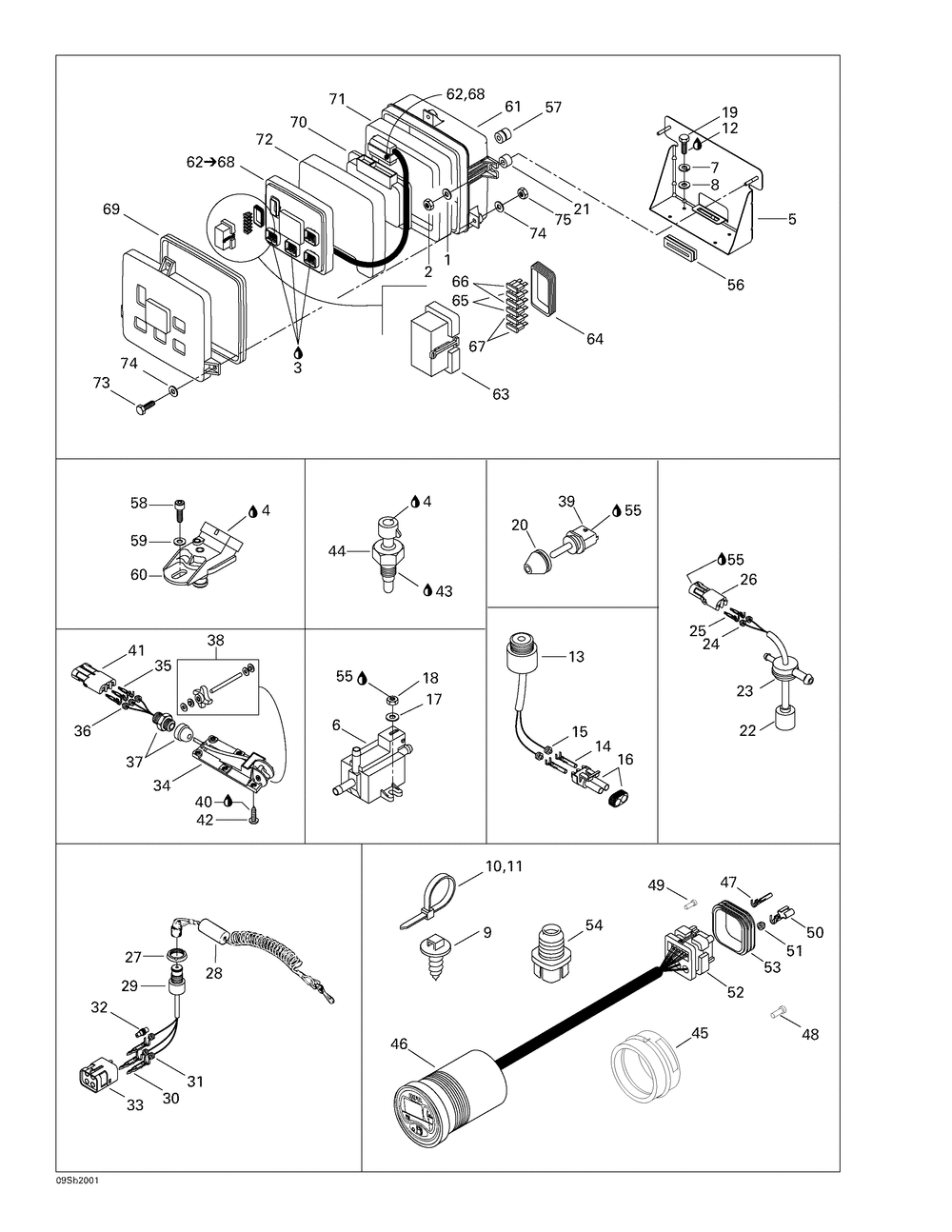

10- Electronic Module And Electrical Accessories
№ Наименование Примечание Кол-во
1 Flat Washer M6, Stainless 2
2 Hex. Elastic Stop Nut M6 2
3 *(ORMD) *DEOXIT AEROSOL * 0
4 DIELECTRIC GREASE 150 G 0
5 SUPP.BOITE ASS.*SUPP-BOX ASSY. 1
6 Клапан управления впускаемого воздуха 1
7 HELICAL LOCK WASHER M5 (5.000 per pack) 4
8 Flat Washer 5 mm, Stainless 4
9 MOUNT DART (5.000 per pack) 0
10 Tie-Rap 142 mm 0
11 Tie-Rap 180 mm 0
12 LOCTITE 271 10 ML 0
13 BUZZER Includes 10 - 13. 1
14 FEMALE TERMINAL (5.000 per pack) 2
15 Wire Seal 2
16 MALE CONNECTOR 2 CIRCUITS 1
17 FLAT WASHER M5 STAINLESS (10.000 per pack) 2
18 HEX. ELASTIC NUT M5 (5.000 per pack) 2
19 HEX. PLASTITE SCREW M5.28 X 16 (5.000 per pack) 4
20 INSULATOR 1
21 SPACER (2.000 per pack) 2
22 OIL LEVER SENSOR ASS Y Includes 13 to 17 1
23 GROMMET 2
25 Male Terminal 2
26 Female Housing, 2 Circuits 1
27 SAFETY NUT 1
28 SAFETY LANYARD ANTITHEFT 1
29 WIRE SEAL Includes 15 - 19. (5.000 per pack) 1
32 WIRE SEAL (5.000 per pack) 1
33 BLOC 4 CIRC.FEM*HOUSING-TAB GTI RFI LE 1
34 WIRE SEAL Includes 63 - 67. (10.000 per pack) 1
37 ELECTRIC CONNECTION GTI RFI LE 1
38 PADDLE WHEEL KIT GTI RFI LE 1
39 AIR TEMPERATURE SENSOR 1
40 LOCTITE 243 10 ML 0
41 FEMALE TERMINAL HOUSING 3 CIRCUITS (5.000 per pack) 1
42 PHILLIPS SCREW M5 X 12 (10.000 per pack) 6
43 LOCTITE 518 50 ML 0
44 TEMPERATURE SENSOR 1
45 GAUGE SUPPORT DS 650 Baja. 1
46 CADRAN INFO *GAUGE-LCD Includes 46 - 54. 1
47 FEMALE TERMINAL (5.000 per pack) 15
48 SEALING CAP (10.000 per pack) 8
49 BOUCHON *PLUG 1
50 FEMALE TERMINAL (5.000 per pack) 4
51 WIRE SEAL (5.000 per pack) 2
52 MALE CONNECTOR 26 CIRCUITS 1
53 WIRE SEAL 1
54 GROMMET 1
56 INSULATOR 1
57 UPPER INSULATOR 2
58 SOCKET HEAD SCREW M6 X 12 SCOTCH GRIP (10.000 per pack) 1
59 Flat Washer M6, Stainless 1
60 PRESSURE SENSOR 1
61 ELECTRONIC BOX BASE 1
62 Wire Seal 3
62 ELECTRONIC MODULE Includes 62 - 68. 1
63 FUSE COVER 1
64 COVER SEAL 1
65 FUSE 5 AMPERES (5.000 per pack) 2
66 FUSE 15 AMPERES (5.000 per pack) 2
67 FUSE 10 AMPERES (5.000 per pack) 2
68 FEMALE TERMINAL (10.000 per pack) 3
69 JOINT ETANCHE *GASKET 1
70 MODULE ELECTRON*MODULE-ELECT. 1
71 LOWER FOAM 1
72 TOP FOAM 1
73 HEX. SCREW M6 X 30 (5.000 per pack) 3
