SEA-DOO GSX RFI, 5645/5654 GSX RFI, 5645/5654 01- Engine Support And Muffler

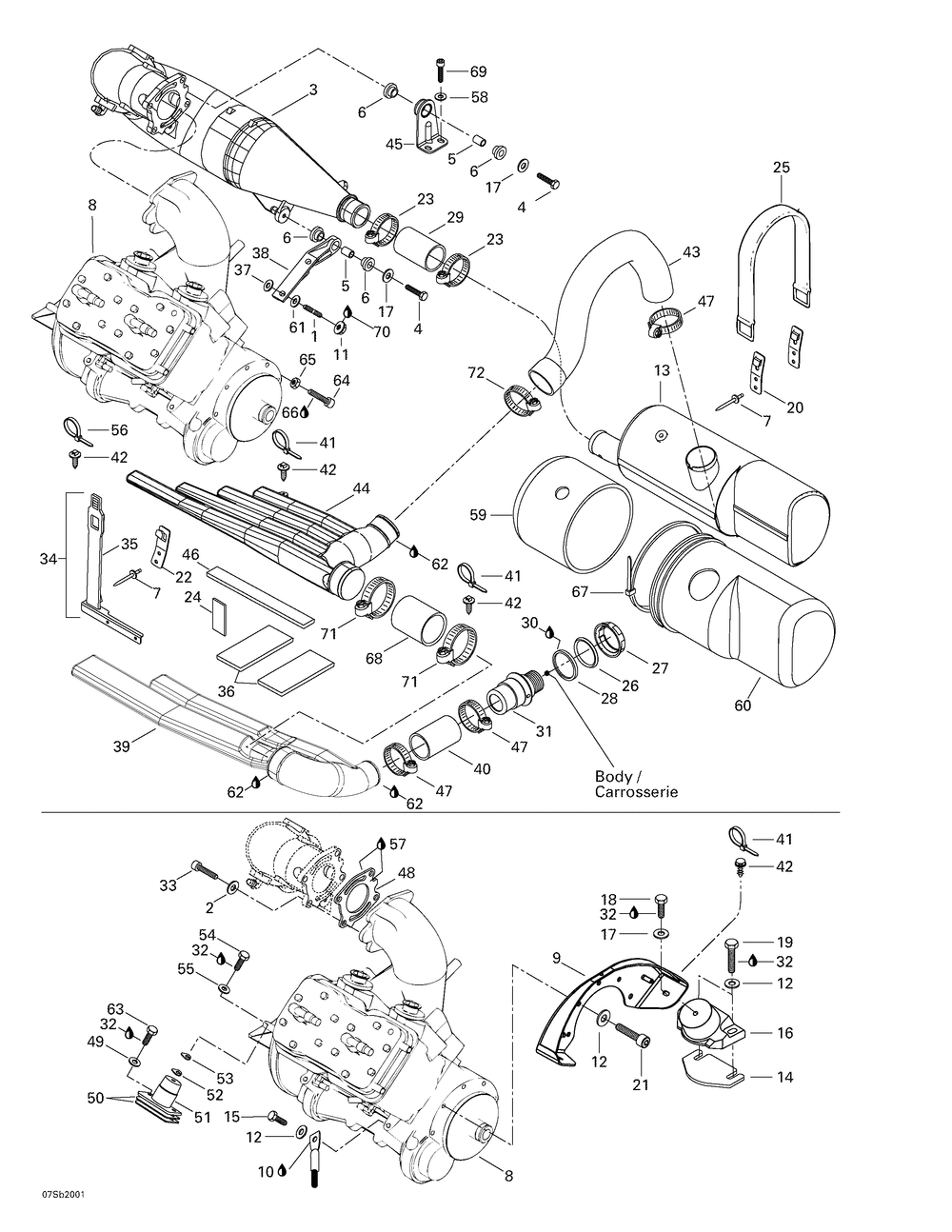

01- Engine Support And Muffler
№ Наименование Примечание Кол-во
SHIM 1.3 MM (5.000 per pack) 0
SHIM 1.3 MM 0
1 STUD M10 X 60 2
2 FLAT WASHER 10 MM STAINLESS (5.000 per pack) 4
3 TUYAU COLLECT. *PIPE-HEAD Includes 7 - 9. 1
4 HEX. SCREW M8 X 40 SCOTCH GRIP (5.000 per pack) 2
5 BUSHING (5.000 per pack) 2
6 RUBBER BUSHING (5.000 per pack) 4
7 AVDEL RIVET 3/16" (10.000 per pack) 6
9 ENGINE SUPPORT 1
10 DIELECTRIC GREASE 150 G 0
11 Hex. Flanged Nut M10 2
12 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 10
13 SILENC.ECHAPP. *MUFFLER-ASS Y 1
14 SHIM 0.3 MM (5.000 per pack) 0
15 HEX. SCREW M8 X 25 SCOTCH GRIP (10.000 per pack) 1
16 TAMPON ANCRAGE *MOUNT-RUBBER 2
17 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 4
18 HEX. SCREW M8 X 16 (5.000 per pack) 2
19 HEX. SCREW M8 X 40 (5.000 per pack) 4
20 STRAP CLIP (10.000 per pack) 2
21 SOCKET HEAD SCREW M8 X 25 SCOTCH GRIP (5.000 per pack) 5
22 PINCE COURROIE *CLIP-STRAP 1
23 TRIDON GEAR CLAMP (5.000 per pack) 2
24 TAMPON CAOUT. *PAD-RUBBER 1
25 RETAINER STRAP 1
26 STABILIZING WASHER 1
27 NUT 72 MM 1
28 JOINT ETANCHE *GASKET (5.000 per pack) 1
29 EXHAUST HOSE 1
30 SILICONE SEALANT 51388 300 ML 0
31 EXHAUST HOSE OUTLET 1
32 LOCTITE 243 10 ML 0
33 SOCKET HEAD SCREW M10 X 35 SCOTCH GRIP (5.000 per pack) 4
34 SANGLE RESONNA.*STRAP-RESONATOR Includes 34 - 35. 1
35 SANGLE BATTERIE*STRAP-BATTERY 1
36 RUBBER PAD 2
37 FLAT WASHER 10 MM STAINLESS (5.000 per pack) 2
38 SUPPORT PIPE 1
39 RESONATOR EXTENSION 1
40 BOYAU RACCORD *HOSE-EXHAUST 1
41 Tie-Rap 180 mm 0
42 MOUNT DART (5.000 per pack) 0
43 BOYAU ECHAPP. *HOSE-EXHAUST 1
44 LH UPPER RESONATOR 1
45 PIPE SUPPORT 1
46 TAMPON CAOUT. *PAD-RUBBER 1
47 TRIDON GEAR CLAMP 3
48 EXHAUST GASKET 1
50 SHIM 0.3 MM (10.000 per pack) 0
51 TAMPON ANCRAGE *MOUNT-RUBBER 1
52 SHIM 0.4 MM (10.000 per pack) 0
53 SHIM 1.3 MM (5.000 per pack) 0
54 HEX. SCREW M8 X 20 (5.000 per pack) 1
56 Tie-Rap 142 mm 2
57 LOCTITE 518 50 ML 0
58 FLAT WASHER (5.000 per pack) 2
59 COVER MUFFLER FRONT 1
60 MUFFLER COVER REAR 1
61 FLAT WASHER (10.000 per pack) 2
62 SEALANT LOCTITE 80 ML Grand Touring 500. Grand Touring 600. 0
64 SOCKET SCREW M10 X 30 (5.000 per pack) 1
65 HEX. NUT M10 (5.000 per pack) 1
66 LOCTITE 271 10 ML 0
67 TIE-RAP 838 MM 1
68 BOYAU RACCORD *HOSE-EXHAUST 1
71 TRIDON GEAR CLAMP 2
72 TRIDON GEAR CLAMP 1
