SEA-DOO GTX DI, 5649/5659 GTX DI, 5649/5659 02- Fuel System

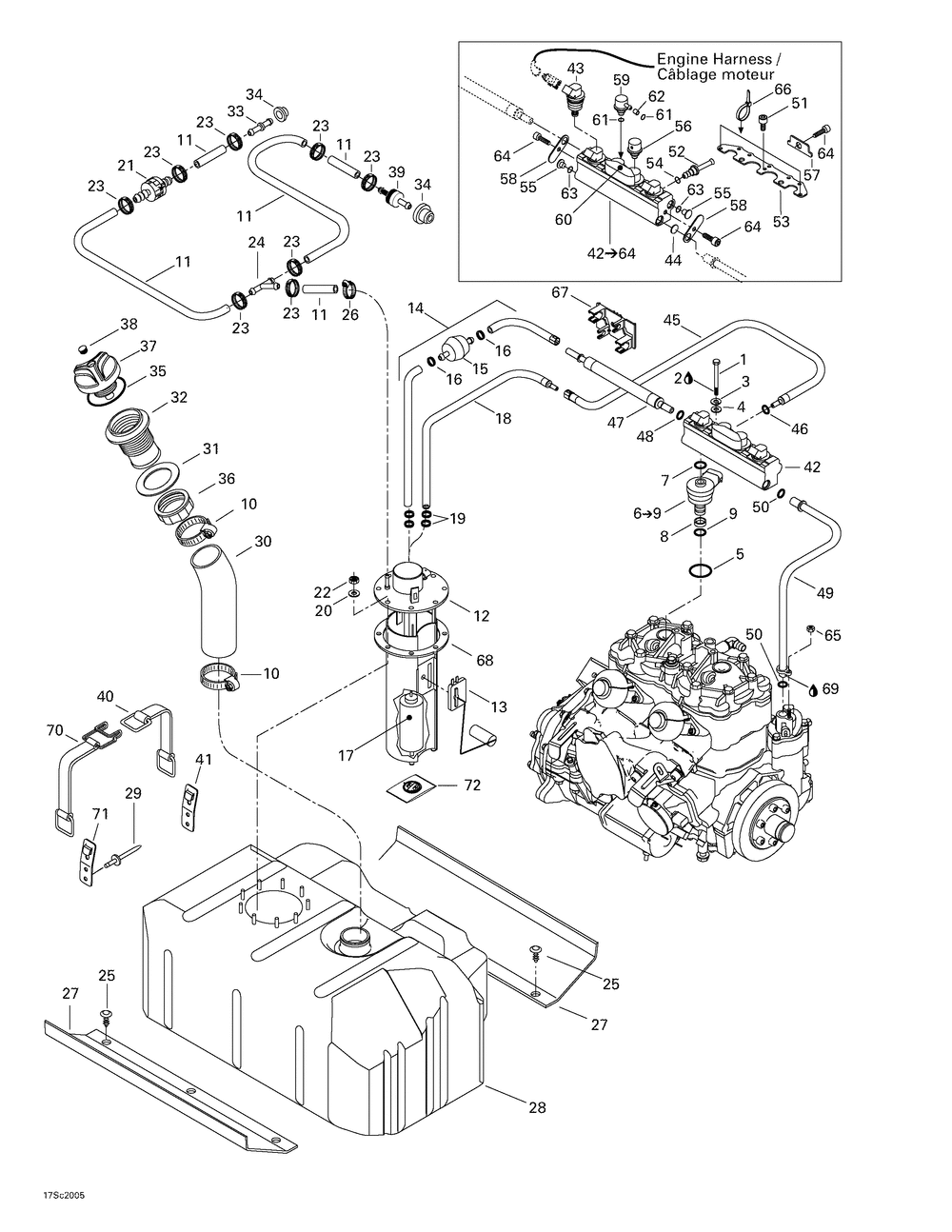

02- Fuel System
№ Наименование Примечание Кол-во
1 HEX. SCREW M8 X 70 (5.000 per pack) 2
2 LOCTITE 243 10 ML 0
3 Lock Washer 8 mm, Stainless 2
4 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 2
5 JOINT TORIQUE *O-RING 2
6 INJECTEUR D AIR*INJECTOR-AIR Includes 6 - 9. 2
7 JOINT TORIQUE *O-RING (2.000 per pack) 1
8 INJECTOR RING 1
9 O-RING 1
10 TRIDON GEAR CLAMP (5.000 per pack) 2
11 BOYAU 6MM. *HOSE-6MM. PAC=5M (5.000 per pack) 0
12 MODULE ESSENCE *MODULE-FUEL ASS Y Includes 14 - 19. 1
13 SENSOR LEVEL 1
14 BOYAU ASSEMBLE *HOSE-ASS Y Includes 14 - 16. 1
15 FILTRE ESSENCE *FILTER-FUEL 1
16 Oetiker Clamp 2
17 MODULE ESSENCE *MODULE-FUEL ASS Y 1
20 Flat Washer 5 mm, Stainless 9
21 CHECK VALVE 1
22 NUT-STOP ELASTIC DIN.985 (10.000 per pack) 9
23 Oetiker Clamp 8
24 Y-FITTING 1
25 BLACK DART (5.000 per pack) 6
26 TRIDON GEAR CLAMP MX Z 500. (10.000 per pack) 1
27 RUBBER PAD 2
28 FUEL TANK 1
29 AVDEL RIVET 3/16" (10.000 per pack) 12
30 BOYAU REMPLIS. *HOSE-FIL.NECK 1
31 JOINT ETANCHE *GASKET 1
32 FILLER NECK FUEL 1
33 STRAIGHT FITTING 1
34 GROMMET (5.000 per pack) 2
35 JOINT ETANCHE *GASKET 1
36 FILLER NECK NUT FUEL 1
37 FUEL TANK CAP BLACK Includes 6 to 7 1
38 SNAP CAP BLACK (5.000 per pack) 1
39 CHECK VALVE 1
40 FUEL TANK STRAP 3
41 STRAP CLIP (10.000 per pack) 3
42 DISTRIBUTEUR *DISTRIBUTOR-FUEL Includes 42 - 64. 1
43 FUEL INJECTOR 2
44 FILTRE A AIR *AIR-FILTER 1
46 O-RING (2.000 per pack) 1
48 O-RING (2.000 per pack) 1
49 PRESSURE HOSE Includes 70 to 71 1
57 RETAINER PLATE 1
58 RETAINER PLATE 2
64 SOCKET HEAD SCREW M6 X 12 (10.000 per pack) 3
65 Hex. Elastic Stop Nut M6 1
66 Tie-Rap 94 mm 1
67 CLAMP TIE 1
68 JOINT ETANCHE *GASKET 1
69 LOCTITE 767 ANTISEIZE LUBRICANT 8 OZ 0
70 FUEL TANK STRAP Includes 10 to 12 3
72 FUEL FILTER BOSCH 1
