SEA-DOO GTX DI, 5649/5659 GTX DI, 5649/5659 10- Rear Electrical Box

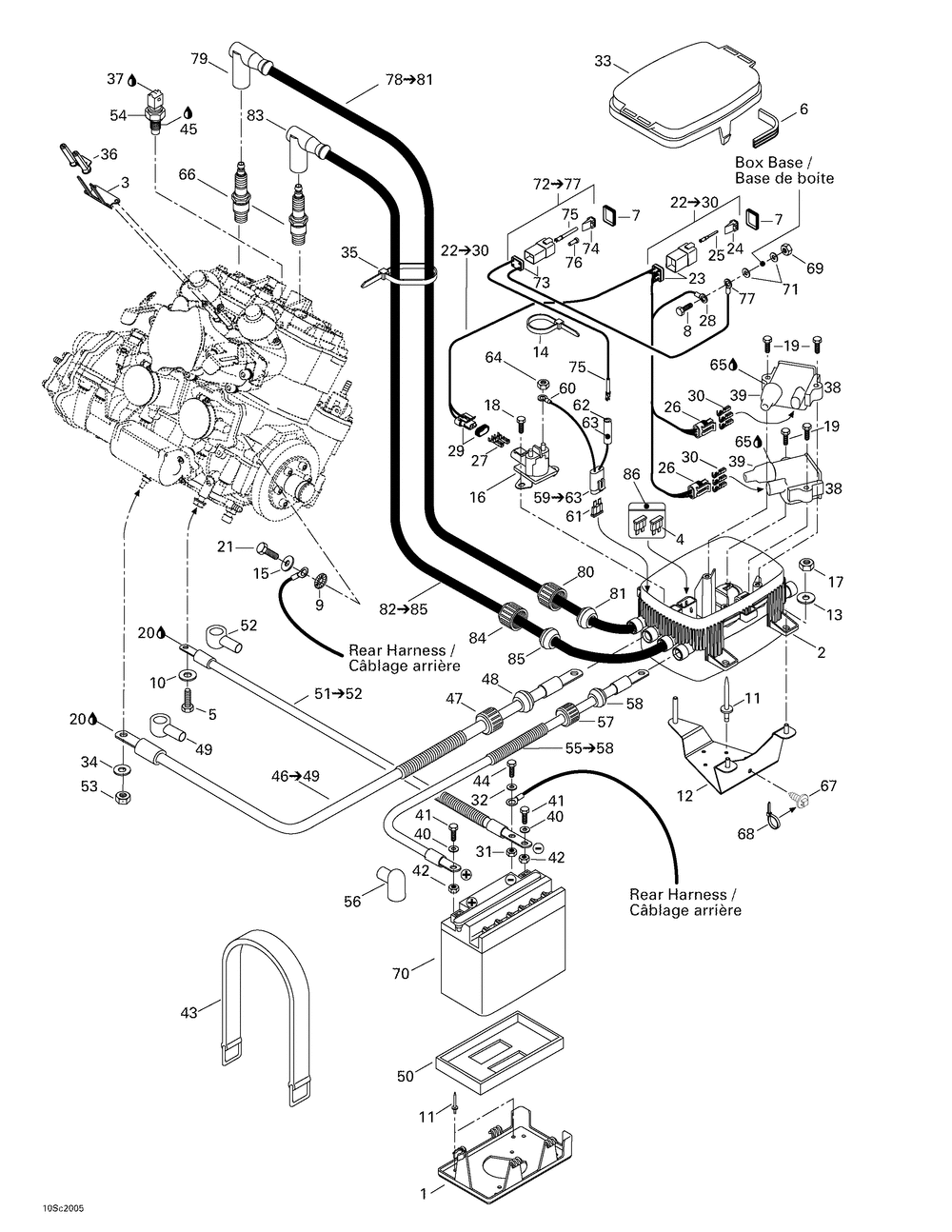

10- Rear Electrical Box
№ Наименование Примечание Кол-во
FUSE 15 AMPERES (5.000 per pack) 1
1 SUPPORT BATT. *SUPPORT-BATT. 1
2 ELECTRIC BOX BASE 1
3 PLAQUE MASSE *PLATE-GROUND 1
4 FUSE 25 AMPERES (5.000 per pack) 1
5 HEX. SCREW M10 X 20 SCOTCH GRIP (5.000 per pack) 1
6 JOINT ETANCHE *GASKET 1
7 JOINT ETANCHE *GASKET 2
8 HEX. SCREW M6 X 16 (5.000 per pack) 1
9 EXTERNAL SERRATED LOCK WASHER 6 MM (5.000 per pack) 1
10 FLAT WASHER 10 MM STAINLESS (5.000 per pack) 1
11 AVDEL RIVET 3/16" (10.000 per pack) 8
12 ELECTRIC BOX SUPPORT 1
13 Flat Washer M6, Stainless 3
14 Tie-Rap 142 mm 1
15 Flat Washer M6, Stainless 1
16 STARTER RELAY 1
17 Hex. Elastic Stop Nut M6 10
18 HEX. FLANGED SCREW M6 X 10 (5.000 per pack) 2
19 SCREW-TAPP.HEX.ISO.1479F (10.000 per pack) 4
20 DIELECTRIC GREASE 150 G 0
21 HEX. SCREW M6 X 12 SCOTCH GRIP (25.000 per pack) 1
22 CABLAGE BOITE *HARNESS-BOX Includes 32 to 40 1
23 BLOC 6 CIRC.FEM*HOUSING-TAB 1
24 CALE 6 CIRC.FEM*WEDGE-6 WAYS F (5.000 per pack) 1
25 MALE TERMINAL (10.000 per pack) 5
26 MALE TERMINAL HOUSING 3 CIRCUITS 2
27 FEMALE TERMINAL (5.000 per pack) 2
28 OPEN BARREL (10.000 per pack) 1
29 MALE CONNECTOR 2 CIRCUITS (5.000 per pack) 1
30 FEMALE TERMINAL (10.000 per pack) 6
33 ELECTRIC BOX COVER 1
36 INSULATOR 1
38 IGNITION COIL 2
39 PROTECTOR CAP 2
40 FLAT WASHER 6 MM (5.000 per pack) 2
41 HEX. SCREW M6 X 16 (10.000 per pack) 2
42 HEX. NUT M6 (10.000 per pack) 2
43 RETAINER STRAP 2
44 HEX. CAP SCREW M6 X 12 (5.000 per pack) 1
45 LOCTITE 518 50 ML 0
46 CABLE ROUGE *CABLE-RED Includes 33 - 36. 1
47 ELECTRIC WIRE CAP (5.000 per pack) 1
48 PASSE-FILS NOIR*GROMMET-BLACK 1
49 PROTECTION CAP (5.000 per pack) 1
50 LOWER BATTERY PAD 1
51 CABLE MASSE ASS*CABLE-GROUND Includes 3435 1
54 TEMPERATURE SENSOR 1
55 CABLE ROUGE *CABLE-RED Includes 55 - 58. 1
59 FUSE HARNESS 30 AMPERES Includes 59 - 63. 1
61 FUSE 30 AMPERES (5.000 per pack) 1
62 FEMALE TERMINAL 1
63 DEUTSCH JOINT HOUSING 1
66 BOUGIE ALLUMAGE*PLUG-SPARK ZFR4F11 (4.000 per pack) 2
67 MOUNT DART (5.000 per pack) 1
68 Tie-Rap 180 mm 1
70 BATTERIE YB16CLB *BATTERY (DRY) 1
71 Flat Washer 6 mm 2
72 ELECTRIC BOX HARNESS ASS Y Includes 72 - 77. 1
73 BLOC 4 CIRC.FEM*HOUSING-TAB 1
74 CALE 4 CIRC.MAL*WEDGE-4 WAYS M 1
75 MALE TERMINAL (3.000 per pack) 3
76 Sealing Cap 2
77 OPEN BARREL (10.000 per pack) 1
78 COIL CABLE 735 MM Includes 46 to 48 1
81 PASSE-FILS NOIR*GROMMET-BLACK (5.000 per pack) 1
82 COIL CABLE 635MM Includes 56 - 59. 1
