SEA-DOO GTX, 5653/5669/5544/5545 GTX, 5653/5669/5544/5545 09- Front Storage Compartment

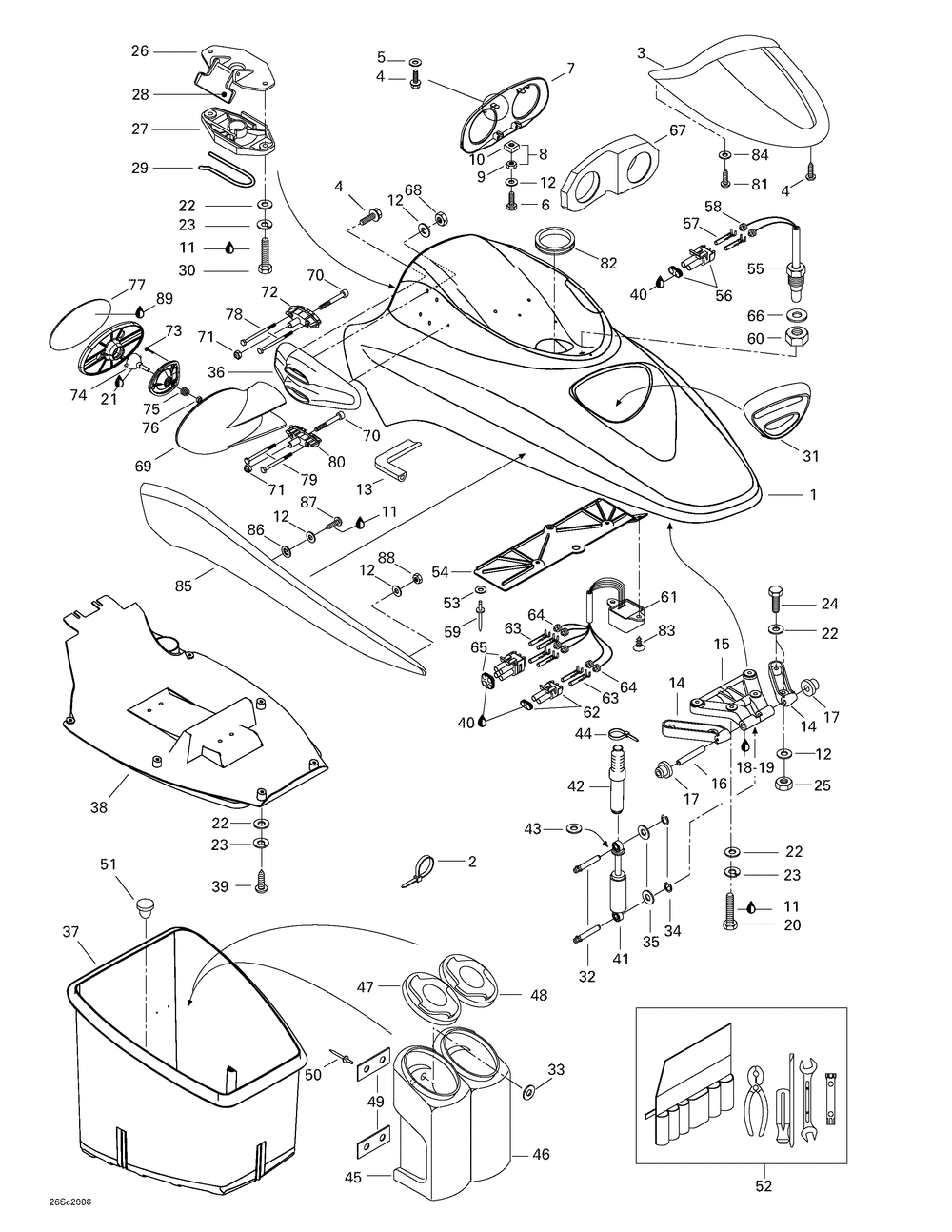

09- Front Storage Compartment
№ Наименование Примечание Кол-во
COUV.BAGAGE SUP*COVER-STOR.UPP GTX (BLUE). 1
LH HINGE 1
MIROIR ASS.DR. *MIRROR-ASSY.RH GTX (RED). 1
MIROIR GAUCHE *MIRROR-LH. 1
MIROIR DROIT *MIRROR-RH. Includes 21 - 32. 1
DEFLECTEUR *DEFLECTOR 1
SUPPORT GAUCHE *SUPPORT LH 1
SUPPORT DROIT *SUPPORT RH 1
ENJOLIVEUR DR. *MOULDING-RH. 1
SUPPORT D.PEINT*SUPPORT RH GTX (RED). 1
1 COUV.BAGAGE SUP*COVER-STOR.UPP GTX (RED). 1
2 Tie-Rap 142 mm 6
3 DEFLECTEUR *DEFLECTOR GTX (RED). 1
4 FLANGED HEX. SCREW K40 X 16 (5.000 per pack) 7
5 Flat Washer 4 mm Stainless 2
6 HEX. SCREW M6 X 25 (5.000 per pack) 2
7 TABLEAU DE BORD*DASHBOARD-ASSY Includes 13 - 16. 1
8 Nut Housing Ass'y 2
9 Hex. Elastic Stop Nut M6 2
10 M6 Nut Housing Ass'y 2
11 LOCTITE 243 10 ML 0
12 Flat Washer M6, Stainless 26
13 Neoprene Seal 0
14 RH HINGE 1
15 CHARNIERE COUV.*HINGE-COVER 1
16 AXE ROTATION *AXLE 1
17 CUSHION (2.000 per pack) 2
19 (ORM-D) LOCTITE PRIMER N 128 G 0
20 Hex. Forming Screw M6 X 20 4
21 SYNTHETIC GREASE 400 G 0
22 Flat Washer M6, Stainless 12
23 Lock Washer Helical M6 8
24 HEX. SCREW M6 X 35 (5.000 per pack) 4
26 LATCH COVER 1
27 LATCH ASS Y 1
28 LATCH ASS Y 1
29 LATCH SPRING (3.000 per pack) 1
31 GRILLE ADM. *GRILL-ADM 1
32 SHORT PIN 2
33 FLAT WASHER M3 STAINLESS (10.000 per pack) 4
34 CIRCLIP (10.000 per pack) 2
35 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 2
36 SUPPORT G.PEINT*SUPPORT LH GTX (RED). 1
37 COFFRE BAG.AV. *TRAY-FRONT Includes 77 - 78. 1
38 COUV.BAGAGE INF*COVER-STOR.LOW 1
39 SCREW-PAN HD.PH.DIN.7985A-A2 (5.000 per pack) 2
40 DIELECTRIC GREASE 150 G 0
41 AMORTISSEUR *SHOCK Includes 82 - 85. 1
42 SOUFFLET *BELLOW 1
43 WASHER-ALUMINUM (5.000 per pack) 1
44 Tie-Rap 94 mm 2
45 EXTINGUISHER HOUSING 1
46 EXTINGUISHER HOUSING 1
47 EXTINGUISHER CAP 1
48 CAPUCHON RANG. *CAP-STORAGE 1
49 JOINT ETANCHE *GASKET (5.000 per pack) 4
50 POP RIVET 1/8 (10.000 per pack) 4
51 Rubber Bumper 1
52 TROUSSE OUTIL *KIT-TOOL OWNER 1
53 FLAT WASHER 5 MM (10.000 per pack) 3
54 PLAQUE MONTAGE *PLATE-MOUNTING 1
55 CAPTEUR TEMP. *SENSOR-TEMP. Includes 55 - 58. 1
56 MALE CONNECTOR 2 CIRCUITS 1
57 FEMALE TERMINAL (5.000 per pack) 2
58 Wire Seal 2
59 POP RIVET 3/16" (10.000 per pack) 3
60 NUT-HEX.PLASTIC M10 X 1.5 (25.000 per pack) 1
61 COMPASS GTI RFI LE Includes 38 to 42 1
65 MALE CONNECTOR 4 CIRCUITS GTI RFI LE 1
66 Flat Washer 10 mm Stainless 1
67 SUPPORT JAUGE *SUPPORT-GAUGE 1
69 MIROIR ASS.GA. *MIRROR-ASSY.LH Includes 69 - 79. GTX (RED). 1
71 Hex. Elastic Nut M8 4
72 ADAPTATEUR tahos_1 *ADAPTOR-1 2
74 MIRROR BALL JOINT (WAKE ) 2
75 MIRROR SPRING 2
77 MIRROR 2
78 HEX. SCREW M6 X 80 (10.000 per pack) 4
79 HEX. SCREW M6 X 70 (10.000 per pack) 4
80 ADAPTATEUR tahos_2 *ADAPTOR-2 0
81 SCREW-THREAD CUT.PH.PAN TYPE25 (10.000 per pack) 2
83 DART BLACK (5.000 per pack) 2
84 FLAT WASHER (5.000 per pack) 2
85 ENJOLIVEUR GA. *MOULDING-LH. 1
86 NUT M6 (6.000 per pack) 5
87 SOCKET SCREW M6 X 16 (5.000 per pack) 10
88 Hex. Nut M6 2
89 SILICONE SEALANT 51388 300 ML 0
