SEA-DOO GTX, 5653/5669/5544/5545 GTX, 5653/5669/5544/5545 07- Steering System

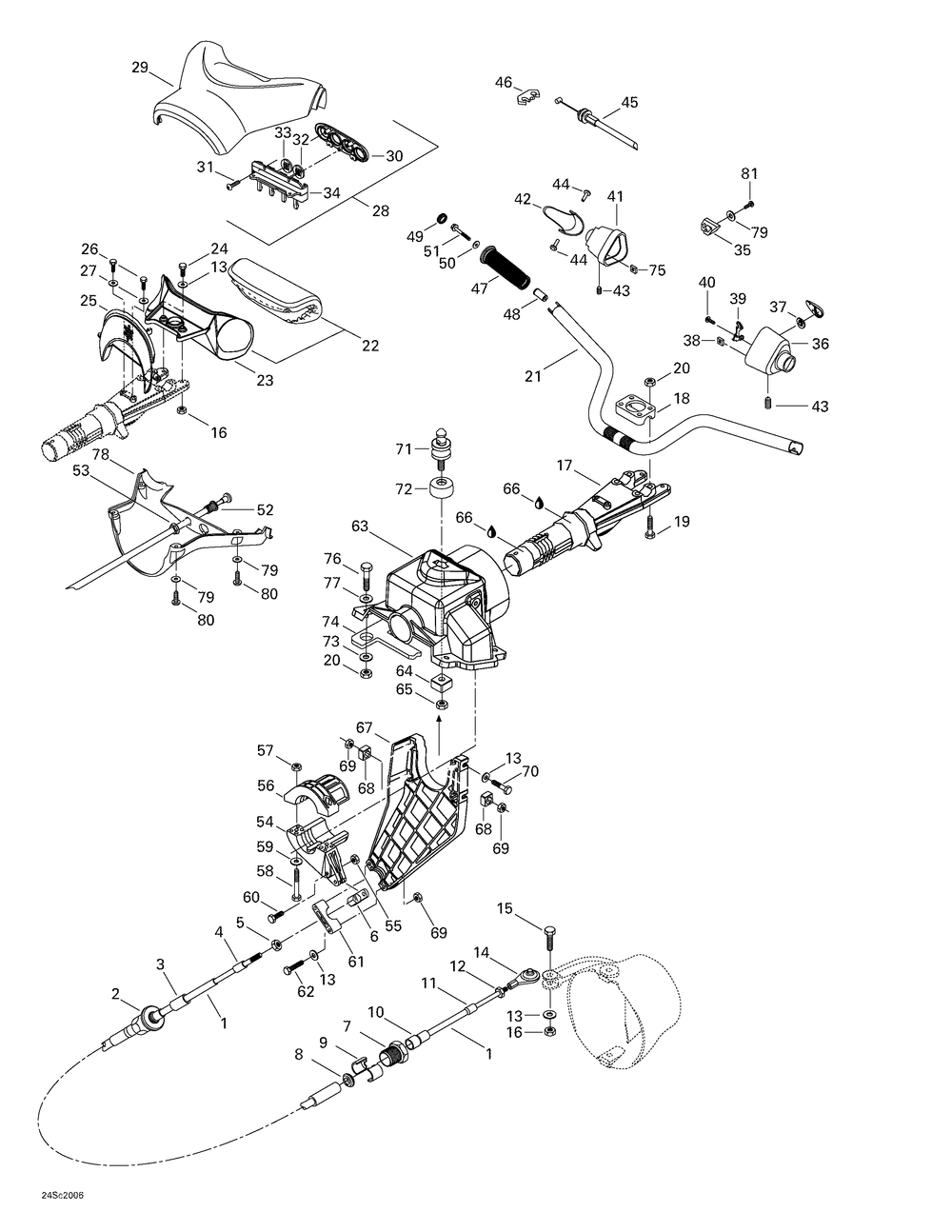

07- Steering System
№ Наименование Примечание Кол-во
1 STEERING CABLE Includes 1 - 5. 1
2 AJUSTMENT KNOB 1
3 EMBOUT GRAND *BOOT-LARGE 1
4 SMALL BOOT 1
5 SCREW-HEX.CAP 3/8-24 X 2" 1
6 BALL JOINT 1
7 STEERING CABLE LOCK 1
8 RUBBER WASHER (10.000 per pack) 1
9 HALF RING 2
13 Flat Washer M6, Stainless 8
14 BALL JOINT 1
15 HEX. SCREW M6 X 35 (5.000 per pack) 1
16 Hex. Elastic Stop Nut M6 3
17 TIGE DIRECTION *STEM-STEERING 1
18 STEERING CLAMP 1
19 HEX. SCREW M8 X 50 (5.000 per pack) 4
20 HEX. ELASTIC NUT M8 (5.000 per pack) 8
21 HANDLE BAR 1
22 HANDLE PAD Includes 9 to 10 1
23 HANDLE BAR PAD SUPPORT 1
24 HEX. SCREW M6 X 30 (5.000 per pack) 2
25 PLAQUE MAR.NOIR*PLATE-MAR.BLAC 1
26 HEX. FLANGED SCREW 1/4"-20 X 1/2" (5.000 per pack) 2
27 Flat Washer M6, Stainless 2
28 UPPER STEERING COVER ASStahos_Y LE Includes 32 to 37 1
30 RETAINER PLATE LE 1
31 SCREW K40 X 10 (5.000 per pack) 3
32 MODE KNOB LE (5.000 per pack) 1
33 MODE KNOB (5.000 per pack) 1
34 SWITCH SUPPORT LE 1
35 INSERT 2
36 LH HANDLE HOUSING ASS Y Includes 14 to 16 1
37 SWITCH KNOB (5.000 per pack) 1
38 SQUARE NUT M6 (10.000 per pack) 1
39 RETAINER PLATE (5.000 per pack) 1
40 SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 (5.000 per pack) 1
41 THROTTLE HOUSING ASS Y 1
42 THROTTLE HOUSING ASS Y 1
43 SOCKET HEAD SCREW M6 X 16 (5.000 per pack) 2
44 GOUPILLE *PIN (5.000 per pack) 2
45 CABLE ACCELERAT*THROTTLE CABLE 1
46 TAB LOCK (5.000 per pack) 1
47 HANDLE GRIP KIT BLACK Includes 17 - 21. 1
49 CAP BLACK (2.000 per pack) 2
51 HEX. SCREW M6 X 30 SCOTCH GRIP (25.000 per pack) 2
52 CABLE ETRANG. *CABLE-CHOKE Includes 56 - 57. 1
53 NUT-HEXAGONAL HI-LEX 1
54 STEERING STEM ARM Includes 36 to 37 1
56 ARM THRUST Includes 38 to 39 1
58 HEX. SCREW M6 X 25 (5.000 per pack) 2
60 HEX. SCREW M6 X 30 (5.000 per pack) 1
61 SUPPORT THRUST 1
62 HEX. SCREW M6 X 50 (5.000 per pack) 2
63 STEERING SUPPORT Includes 63 to 65 1
64 NUT HOUSING ASStahos_Y Includes 64 to 65 1
65 HEX. NUT M10 (5.000 per pack) 1
66 SYNTHETIC GREASE 400 G 0
67 CABLE SUPPORT Includes 60 to 62 1
68 M6 Nut Housing Ass'y 3
70 Hex. Forming Screw M6 X 20 3
71 LATCH STUD 1
72 RUBBER PAD 1
73 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 4
74 JOINT ETANCHE *GASKET (2.000 per pack) 1
76 HEX. SCREW M8 X 35 (10.000 per pack) 4
77 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 4
78 LOWER STEERING COVER 1
79 FLAT WASHER M5 STAINLESS (10.000 per pack) 6
80 FLANGED HEX. SCREW K40 X 16 (5.000 per pack) 4
81 PHILLIPS SCREW M3.9 X 9.5 (5.000 per pack) 4
