SEA-DOO GSX RFI, 5637/5638/5652/5829 GSX RFI, 5637/5638/5652/5829 05- Propulsion System

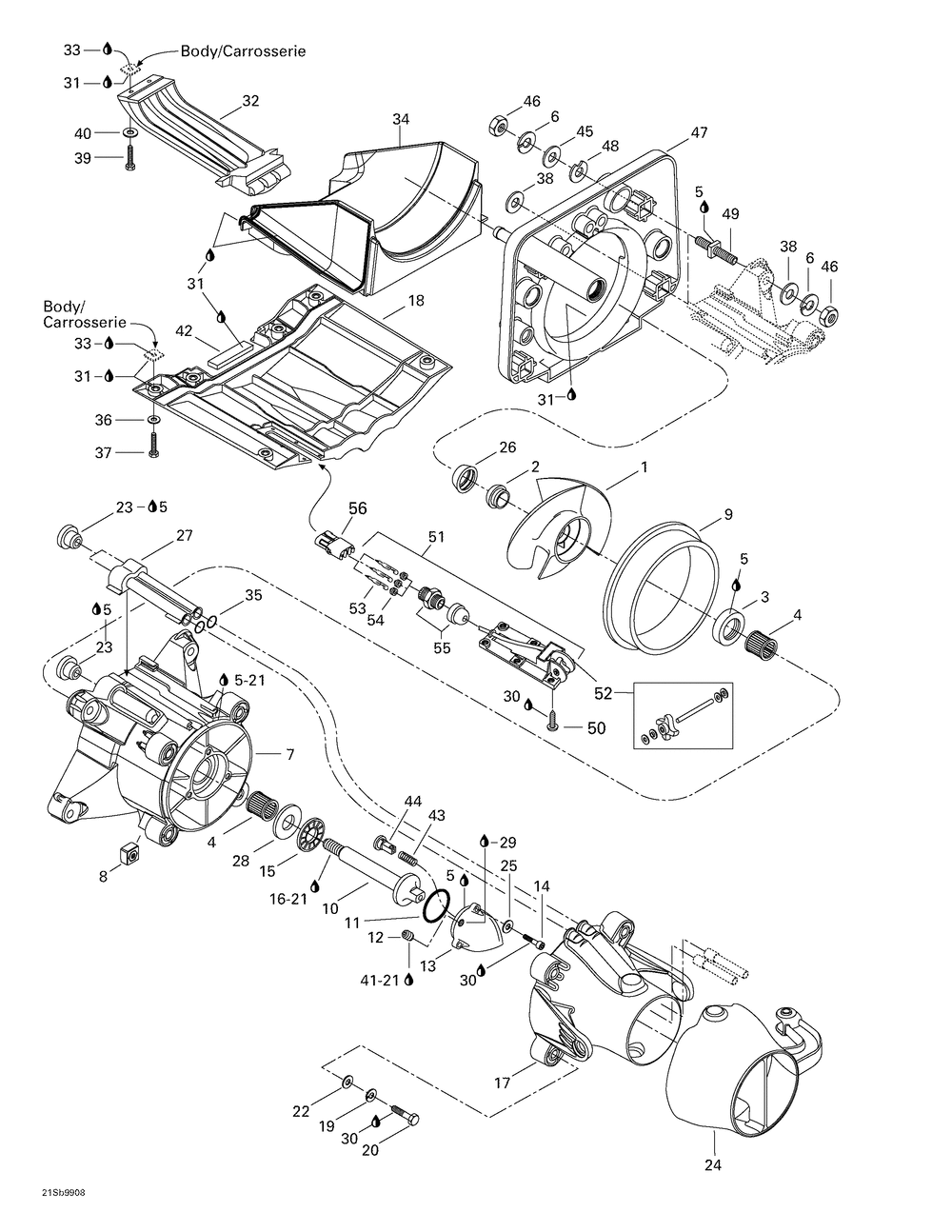

05- Propulsion System
№ Наименование Примечание Кол-во
HELICE STLSS.AS*IMPELLER-ASSY. 0
1 HELICE STLSS.AS*IMPELLER-ASSY. 1
2 IMPELLER BOOT (2.000 per pack) 1
3 OIL SEAL 1
4 NEEDLE BEARING 2
5 LOCTITE 518 50 ML 0
6 Helicoidal Lock Washer M10 8
7 CARTER HELICE *HOUSING-IMPEL.ASSY. Includes 7 - 9. 1
8 SQUARE NUT M8 (5.000 per pack) 4
9 BAGUE D USURE *WEAR RING 1
10 ARBRE HELICE *SHAFT-IMPELLER 1
11 O-RING (5.000 per pack) 1
12 PIPE PLUG SOCKET HEAD 1/8-27 NPT (5.000 per pack) 1
13 COUVERCLE TURB.*COVER-IMPELLER 1
15 PALIER A BUTEE *THRUST-BEARING 1
17 VENTURI ASS. *VENTURI-ASSY. 1
18 RIDING PLATE BLACK 1
19 Lock Washer 8 mm, Stainless 4
20 HEX. SCREW M8 X 60 (10.000 per pack) 4
21 (ORM-D) LOCTITE PRIMER N 128 G 0
22 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 4
23 WATERTIGHT SEAL 3
24 BUSE DIREC.NOIR*NOZZLE-BLACK 1
25 FLAT WASHER M5 STAINLESS (10.000 per pack) 3
26 IMPELLER RING (10.000 per pack) 1
27 SORTIE D EAU *OUTLET-WATER 1
28 THRUST WASHER (5.000 per pack) 1
29 HUILE DE POMPE *OIL-PUMP (12.000 per pack) 0
30 LOCTITE 243 10 ML 0
31 INSTANT GASKET 40479 (ORM-D) 0
32 GRILLE POMPE *GRATE-PUMP 1
33 SILICONE SEALANT 51388 300 ML 0
34 SABOT NOIR *SHOE-BLACK 1
35 O-RING (10.000 per pack) 2
36 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 6
37 HEX. SCREW M8 X 30 SCOTCH GRIP (10.000 per pack) 6
38 FLAT WASHER 10 MM STAINLESS (5.000 per pack) 6
39 HEX. SCREW M6 X 25 SCOTCH GRIP (10.000 per pack) 2
40 Flat Washer M6, Stainless 2
41 LOCTITE PIPE SEALANT 250 ML 0
42 Neoprene Seal Meter 0
43 SPRING (10.000 per pack) 1
44 POUSSOIR *PUSHER 1
45 FLAT WASHER 10 MM STAINLESS (5.000 per pack) 2
46 HEX. NUT M10 (5.000 per pack) 8
47 SUPPORT POMPE *SUPPORT-PUMP 1
48 SHIM 0.3 MM (5.000 per pack) 0
49 SQUARE STUD 4
50 PHILLIPS SCREW M5 X 12 (10.000 per pack) 6
51 WIRE SEAL Includes 63 - 67. (10.000 per pack) 1
52 PADDLE WHEEL KIT GTI RFI LE 1
53 Male Terminal 3
54 Wire Seal 3
55 ELECTRIC CONNECTION GTI RFI LE 1
56 FEMALE TERMINAL HOUSING 3 CIRCUITS (5.000 per pack) 1
