SEA-DOO XP Limited, 5868/5869 XP Limited, 5868/5869 05- Drive System

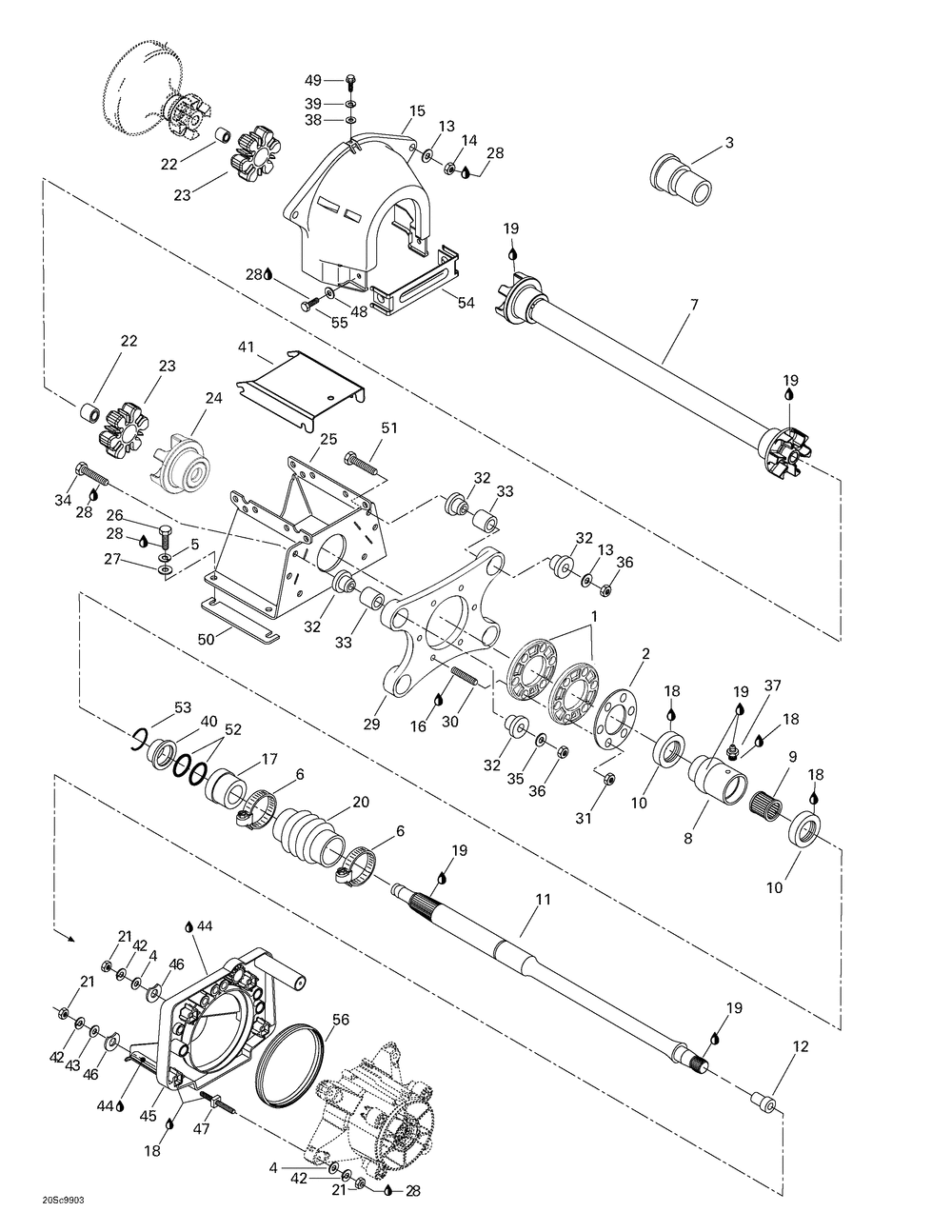

05- Drive System
№ Наименование Примечание Кол-во
1 ALIGNMENT WASHER 2
2 FIXATION WASHER 1
3 HULL INSERT 33 MM 1
4 FLAT WASHER 10 MM STAINLESS (5.000 per pack) 6
5 Lock Washer 8 mm, Stainless 4
6 NORMA CLAMP (5.000 per pack) 2
7 TRANSMISSION SHAFT ASStahos_Y 1
8 JOINT SUPPORT 1
9 NEEDLE BEARING SCE1416-L271/STDtahos_E 1
10 DOUBLE LIP SEAL 2
11 DRIVE SHAFT 1
12 DRIVE SHAFT PLUG (5.000 per pack) 1
13 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 4
14 HEX. NUT M8 (5.000 per pack) 2
15 FLYWHEEL GUARD 1
16 LOCTITE 271 10 ML 0
17 CARBON RING 1
18 LOCTITE 518 50 ML 0
19 SYNTHETIC GREASE 400 G 0
20 BELLOWS 1
21 HEX. NUT M10 (5.000 per pack) 8
22 SNAP BUSHING 2
23 RUBBER ADAPTOR 2
24 COUPLER ASStahos_Y 1
25 SHAFT SUPPORT 1
26 HEX. SCREW M8 X 30 Package XMR Engine 1000 (5.000 per pack) 4
28 LOCTITE 243 10 ML 0
29 DAMPING SUPPORT Includes 39 - 44. 1
30 STUD M6 X 30 (5.000 per pack) 6
31 Hex. Elastic Stop Nut M6 6
32 RUBBER BUSHING (5.000 per pack) 8
33 BUSHING 4
34 HEX. SCREW M8 X 40 (5.000 per pack) 2
35 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 2
36 Hex. Elastic Nut M8 4
37 GREASE FITTING (5.000 per pack) 1
38 FLAT WASHER M5 STAINLESS (10.000 per pack) 1
39 HELICAL LOCK WASHER M5 (5.000 per pack) 1
40 SUPPORT RING 1
41 SHAFT GUARD 1
42 Helicoidal Lock Washer M10 8
43 FLAT WASHER 10 MM STAINLESS (5.000 per pack) 2
44 INSTANT GASKET 40479 (ORM-D) 0
45 SUPPORT POMPE *SUPPORT-PUMP 1
46 SHIM 0.3 MM (5.000 per pack) 0
47 SQUARE STUD 4
48 Flat Washer M6, Stainless 2
49 HEX. PLASTITE SCREW M5.28 X 16 (5.000 per pack) 1
50 SHIM (2.000 per pack) 2
51 HEX. SCREW M8 X 45 (5.000 per pack) 2
52 O-RING (5.000 per pack) 2
53 C-CLIP (10.000 per pack) 1
54 FRONT LOWER GUARD 1
55 HEX. SCREW M6 X 16 (5.000 per pack) 2
56 NEOPRENE SEAL 1
