SEA-DOO GS, 5626/5844 GS, 5626/5844 07- Steering System

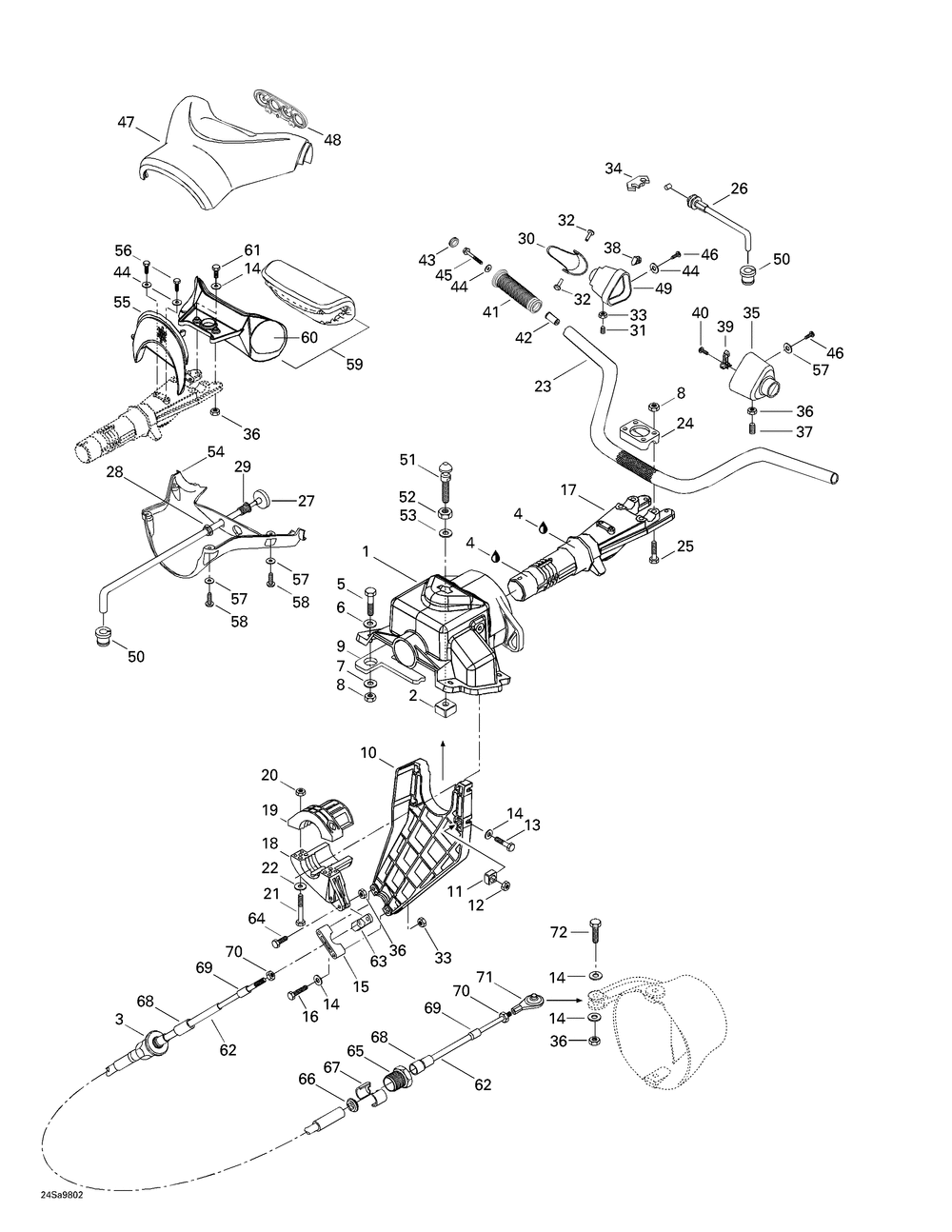

07- Steering System
№ Наименование Примечание Кол-во
1 SUPPORT DIRECT.*SUPPORT-STEER. Includes 1 - 3. 1
2 NUT HOUSING ASS Y 1
3 BOUTON AJUST. *KNOB-AJUST. 1
4 SYNTHETIC GREASE 400 G 0
5 HEX. SCREW M8 X 35 (10.000 per pack) 4
6 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 4
7 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 4
8 HEX. ELASTIC NUT M8 (5.000 per pack) 8
9 JOINT ETANCHE *GASKET (5.000 per pack) 1
10 CABLE SUPPORT Includes 60 to 62 1
11 M6 Nut Housing Ass'y 3
12 HEX. NUT M6 (5.000 per pack) 3
13 HEX. FORMING SCREW M6 X 20 (5.000 per pack) 3
14 FLAT WASHER M6 STAINLESS (25.000 per pack) 9
15 SUPPORT THRUST 1
16 HEX. SCREW M6 X 50 (5.000 per pack) 2
17 TIGE DIRECTION *STEM-STEERING 1
18 STEERING STEM ARM Includes 36 to 37 1
19 ARM THRUST Includes 38 to 39 1
20 HEX. ELASTIC STOP NUT M6 (5.000 per pack) 2
21 HEX. SCREW M6 X 25 (5.000 per pack) 2
22 FLAT WASHER M6 STAINLESS (10.000 per pack) 2
23 HANDLE BAR 1
24 STEERING CLAMP 1
25 HEX. SCREW M8 X 50 (5.000 per pack) 4
26 CABLE ACCELERAT*THROTTLE CABLE 1
27 CABLE ETRANG. *CABLE-CHOKE Includes 12 - 16. 1
28 NUT-HEXAGONAL HI-LEX 1
30 THROTTLE HOUSING ASS Y 1
31 SCREW-SET SOCKET DIN.914A2 (5.000 per pack) 1
32 GOUPILLE *PIN (5.000 per pack) 2
34 TAB LOCK (5.000 per pack) 1
35 SOCKET HEAD SCREW M6 X 16 Includes 35 - 38. (5.000 per pack) 1
38 INSERT 1
39 PLAQUE RETENUE *PLATE-RETAINER 1
40 SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 (5.000 per pack) 1
41 HANDLE GRIP KIT (BLACK) Includes 41 - 45. 1
43 CAP BLACK (2.000 per pack) 2
45 PLASTITE SCREW HEX. M6.81 X 45 (5.000 per pack) 2
46 PHILLIPS SCREW M3.9 X 9.5 (5.000 per pack) 4
47 COUVRE GUIDON *COVER-STEERING Includes 46 - 47. 1
48 STEERING COVER PLATE 1
49 SQUARE NUT M6 (10.000 per pack) 1
50 GROMMET (5.000 per pack) 2
51 LATCH STUD 1
52 HEX. JAM NUT M10 (5.000 per pack) 1
53 FLAT WASHER 10 MM STAINLESS (5.000 per pack) 1
54 COUVRE GUIDON *COVER-STEE.INT 1
55 PLAQUE MAR.NOIR*PLATE-MAR.BLAC 1
56 HEX. FLANGED SCREW 1/4"-20 X 1/2" (5.000 per pack) 2
57 FLAT WASHER M5 STAINLESS (10.000 per pack) 6
58 FLANGED HEX. SCREW K40 X 16 (5.000 per pack) 4
59 TAMPON GUIDON *PAD-HANDLE Includes 59 - 60. 1
60 HANDLE BAR PAD SUPPORT 1
61 HEX. SCREW M6 X 30 (5.000 per pack) 2
62 CABLE DIRECTION*CABLE-STEERING 1
63 ROTULE *JOINT 1
64 HEX. SCREW M6 X 30 (5.000 per pack) 1
65 STEERING CABLE LOCK 1
66 RUBBER WASHER (5.000 per pack) 1
67 HALF RING (2.000 per pack) 2
68 EMBOUT GRAND *BOOT-LARGE (5.000 per pack) 2
69 EMBOUT PETIT *BOOT-SMALL (5.000 per pack) 2
70 HEX. NUT (5.000 per pack) 2
71 BALL JOINT 1
72 HEX. SCREW M6 X 40 (10.000 per pack) 1
