SEA-DOO GSX Limited 5625 GSX Limited 5625 10- Electronic Module And Electrical Accessories

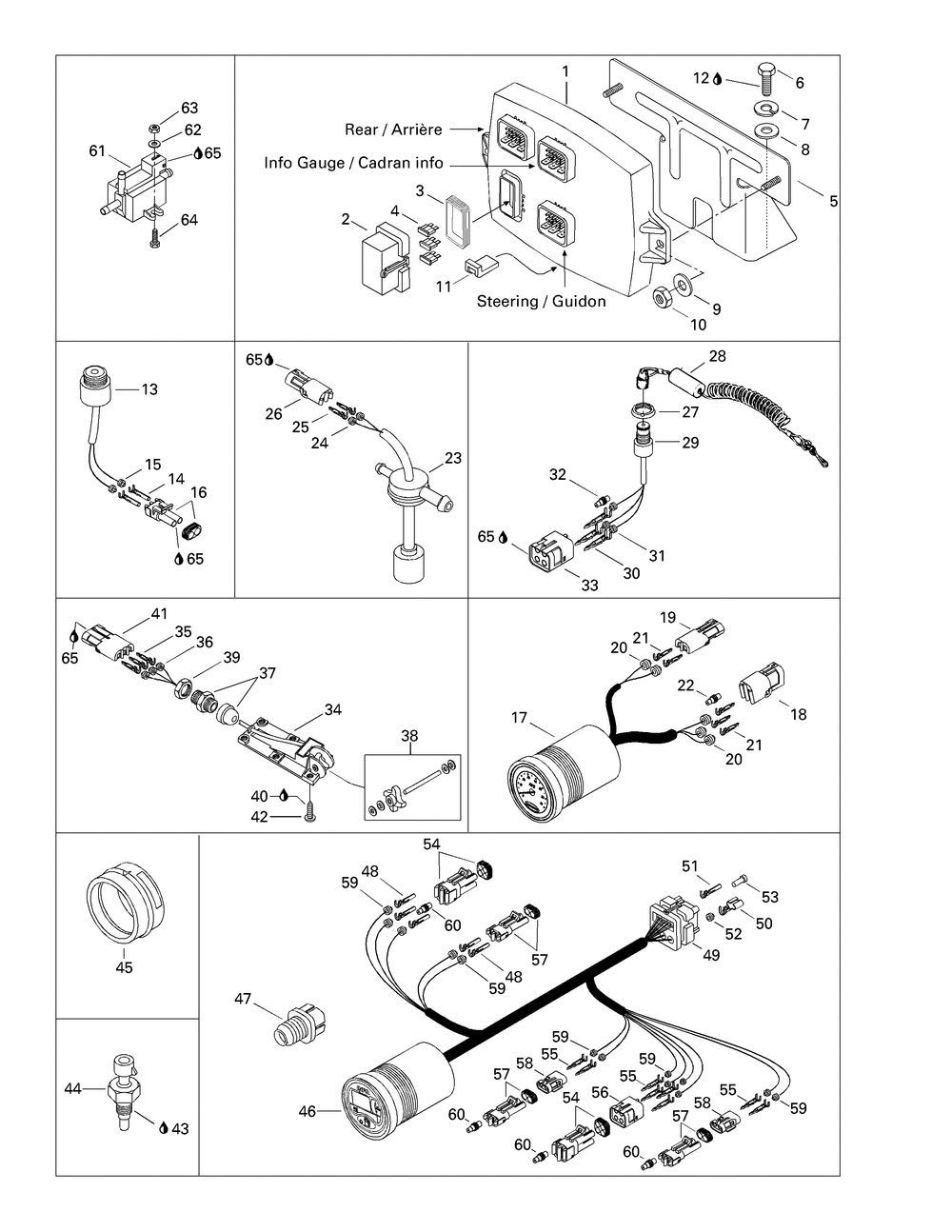

10- Electronic Module And Electrical Accessories
№ Наименование Примечание Кол-во
FUSE 7.5 AMPERES (5.000 per pack) 2
FUSE 5 AMPERES (5.000 per pack) 2
1 MODULE ELECTRON*MODULE-ELECT. Includes 1 - 4. 1
2 FUSE COVER 1
3 COVER SEAL 1
4 FUSE 15 AMPERES (5.000 per pack) 2
5 SUPP.MODULE *SUPP-MODULE 1
6 HEX. PLASTITE SCREW M5.28 X 16 (5.000 per pack) 4
7 WASHER-LOCK IMPERIAL (50.000 per pack) 4
8 FLAT WASHER 5 MM STAINLESS (10.000 per pack) 4
9 FLAT WASHER M6 STAINLESS (25.000 per pack) 2
10 HEX. ELASTIC STOP NUT M6 (5.000 per pack) 2
11 MODULE PROTECTOR SE5 1
12 LOCTITE 271 10 ML 0
13 BUZZER Includes 11 - 14. 1
14 FEMALE TERMINAL (5.000 per pack) 2
15 Wire Seal 2
16 MALE CONNECTOR 2 CIRCUITS 1
18 BLOC 4 CIRC.FEM*HOUSING-TAB GTI RFI LE 1
19 Female Housing, 2 Circuits 1
20 Wire Seal (20 Gauge) (Purple) (Packard) 5
21 Male Terminal 5
22 WIRE SEAL (5.000 per pack) 1
23 CAPTEUR HUILE *SENSOR-OIL Includes 21 - 24. 1
27 SAFETY NUT 1
28 SAFETY LANYARD ANTITHEFT 1
29 WIRE SEAL Includes 15 - 19. (5.000 per pack) 1
34 WIRE SEAL Includes 63 - 67. (10.000 per pack) 1
37 ELECTRIC CONNECTION GTI RFI LE 1
38 PADDLE WHEEL KIT GTI RFI LE 1
39 LOCKING NUT (5.000 per pack) 1
40 LOCTITE 243 10 ML 0
41 FEMALE TERMINAL HOUSING 3 CIRCUITS (5.000 per pack) 1
42 PHILLIPS SCREW M5 X 10 (5.000 per pack) 6
43 LOCTITE 518 50 ML 0
44 TEMPERATURE SENSOR 1
45 GAUGE SUPPORT DS 650 Baja. 2
46 CADRAN INFO *GAUGE-LCD Includes 46 - 60. 1
47 GROMMET 1
49 MALE CONNECTOR 26 CIRCUITS 1
50 FEMALE TERMINAL (5.000 per pack) 3
51 FEMALE TERMINAL (5.000 per pack) 15
52 WIRE SEAL (5.000 per pack) 3
53 SEALING CAP (10.000 per pack) 8
54 MALE CONNECTOR 4 CIRCUITS GTI RFI LE 2
61 Клапан управления впускаемого воздуха 2
62 FLAT WASHER M5 STAINLESS (10.000 per pack) 4
63 HEX. ELASTIC NUT M5 (5.000 per pack) 4
64 HEX. SCREW M5 X 16 (5.000 per pack) 2
65 DIELECTRIC GREASE 150 G 0
