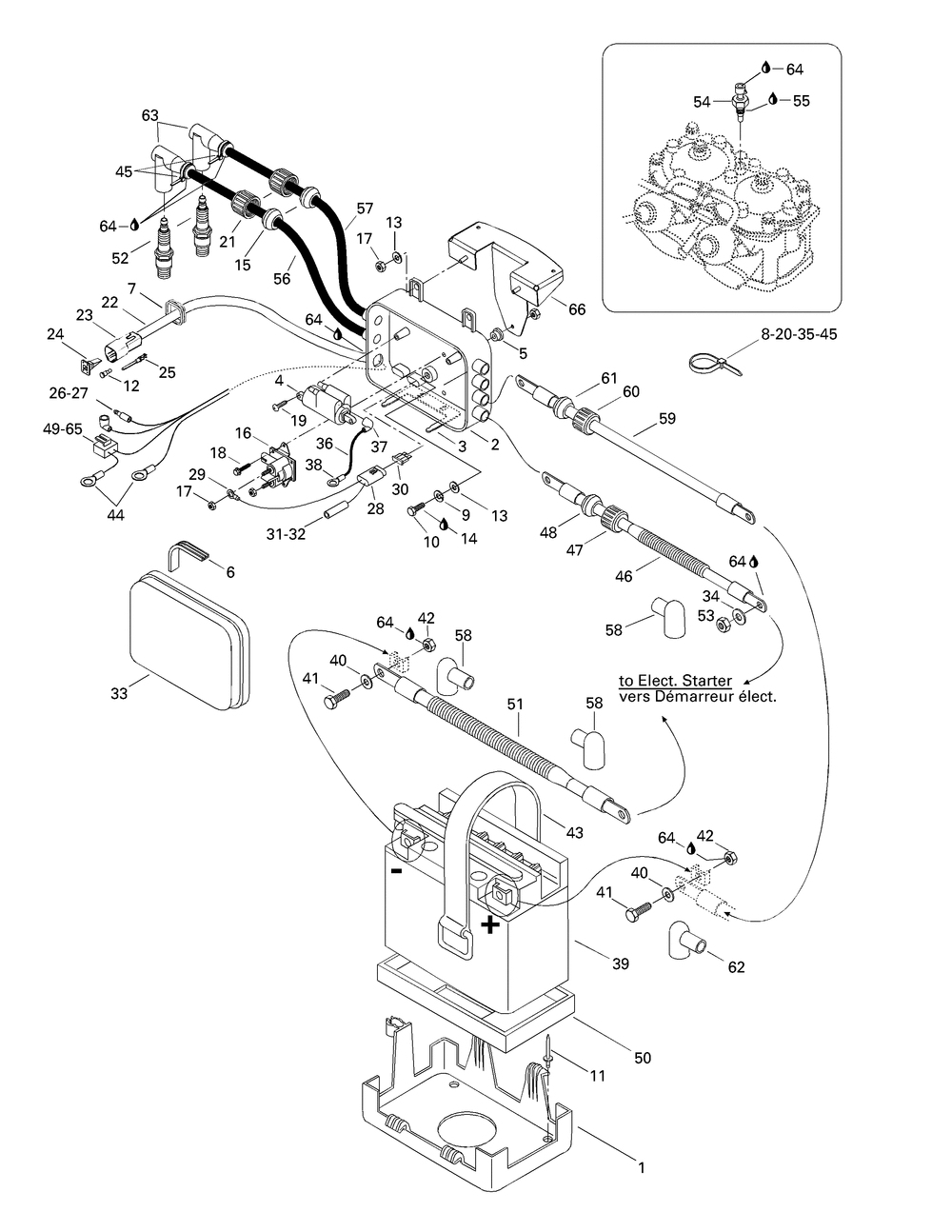

10- Rear Electrical Box

SEA-DOO GSX Limited 5625 GSX Limited 5625 10- Rear Electrical Box

№	Наименование	Кол-во
1	SUPPORT BATT. *SUPPORT-BATT.	1
2	BASE BOITE ELEC*BASE-BOX ELECT	1
4	BOBINE ALLUMAGE*COIL-IGNITION	1
5	JOINT TORIQUE *O-RING (5.000 per pack)	1
6	JOINT ETANCHE *GASKET	0
7	JOINT ETANCHE *GASKET	1
8	Tie-Rap 142 mm	0
9	WASHER-LOCK HELICAL DIN.127B-A2 (5.000 per pack)	1
10	HEX. FORMING SCREW M6 X 20 (5.000 per pack)	1
12	Sealing Cap	2
13	FLAT WASHER M6 STAINLESS (10.000 per pack)	3
14	LOCTITE 243 10 ML	0
15	PASSE-FILS NOIR*GROMMET-BLACK (5.000 per pack)	2
16	STARTER RELAY	1
17	HEX. ELASTIC STOP NUT M6 (5.000 per pack)	4
18	HEX. FLANGED SCREW M6 X 10 (5.000 per pack)	2
19	SCREW-TAPP.HEX.ISO.1479C (5.000 per pack)	2
20	Tie-Rap 94 mm	0
21	ELECTRIC WIRE CAP (5.000 per pack)	2
22	CABLAGE BOITE *HARNESS-BOX Includes 24 - 32.	1
23	BLOC 6 CIRC.FEM*HOUSING-TAB	1
24	CALE 6 CIRC.FEM*WEDGE-6 WAYS F (5.000 per pack)	1
25	MALE TERMINAL (10.000 per pack)	4
26	Male Terminal	1
27	Insulated Sheath	1
28	CABLAGE FUSIBLE*HARNESS-FUSE Includes 61 - 65.	1
29	RING TERMINAL (5.000 per pack)	1
30	FUSE 15 AMPERES (5.000 per pack)	1
31	FEMALE TERMINAL (5.000 per pack)	1
32	Insulated Sheath	1
33	ELECTRIC BOX COVER	1
34	FLAT WASHER M6 STAINLESS (25.000 per pack)	1
35	Tie-Rap 350 mm	0
36	GROUND HARNESS Includes 37 to 39	1
37	FEMALE TERMINAL (5.000 per pack)	1
39	BATTERIE YB16CLB *BATTERY (DRY)	1
40	FLAT WASHER 6 MM (5.000 per pack)	2
41	HEX. SCREW M6 X 16 (10.000 per pack)	2
42	HEX. NUT M6 (10.000 per pack)	2
43	RETAINER STRAP	1
44	OPEN BARREL (10.000 per pack)	2
48	PASSE-FILS NOIR*GROMMET-BLACK	1
49	FEMALE TERMINAL (5.000 per pack)	2
50	LOWER BATTERY PAD	1
52	SPARK PLUG NGK BR8-ES (10.000 per pack)	2
54	TEMPERATURE SENSOR	1
55	LOCTITE 518 50 ML	0
56	SPARK PLUG WIRE Formula 500. Formula 500 Deluxe.	1
57	FIL BOUGIE 530 *WIRE-SPARK MAG (3.000 per pack)	1
58	PROTECTION CAP (5.000 per pack)	3
63	SPARK PLUG CAP	2
64	DIELECTRIC GREASE 150 G	0
65	MALE CONNECTOR 2 CIRCUITS (5.000 per pack)	1
66	SUPP.BOITE ASS.*SUPP-BOX ASSY.	1
